NDB302RA.pdf• Capable of Average Currents up to 65 A.
• Capable of Switching at Frequencies up to 1 MHz.
• Compatible with 3.3 V or 5 V PWM Input.
• Responds Properly to 3-level PWM Inputs.
• Option for Zero Cross Detection with 3-level PWM.
• Internal Bootstrap Diode.
• Undervoltage Lockout.
• Supports Intel® Power State 4.
• Thermal Warning output.
• Thermal Shutdown.

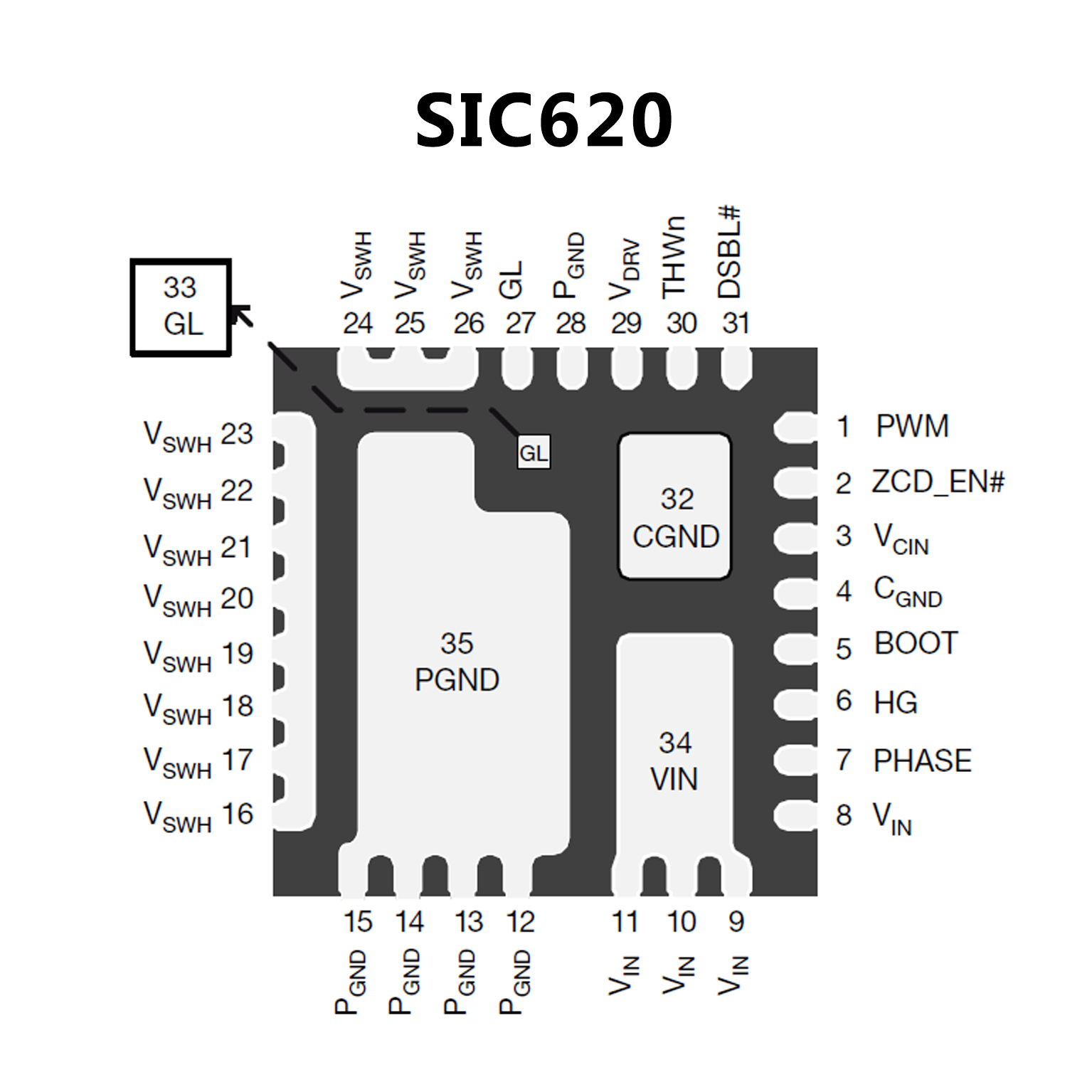

• Thermally enhanced PowerPAK® MLP55-31L package
• Vishay’s Gen IV MOSFET technology
and a low-side MOSFET with
integrated Schottky diode
• Delivers up to 60 A continuous current
• 95 % peak efficiency
• High frequency operation up to 1.5 MHz
• Power MOSFETs optimized for 12 V input stage
• 3.3 V (SiC620A) / 5 V (SiC620) PWM logic
with tri-state and hold-off
• Zero current detect control for light load efficiency improvement
• Low PWM propagation delay (< 20 ns)
• Thermal monitor flag
• Under voltage lockout for VCIN
• Material categorization: for definitions of compliance please
