High-Speed USB 2.0 (480 Mbps) 1-Port Switch with Full Power Down Feature, PI3USB32 Replace TS3USB31.
PI3USB32
PI3USB32.pdf
PI3USB32.pdfFEATURES
• VDD Operation at 2.8V and 4.3V
• 1.8V Compatible Control-Pin Inputs
• IOFF Supports Full Power-Down Mode Operation
• ron = 6Ω Typical
• Dron <0.35Ω Typical
• Cio(ON) = 5pF Typical
• Low Power Consumption
• ESD Performance
7kV Human-Body Model, per JESD22 spec (A114-B, Class II)
1000-V Charged-Device Model (C101)
±4kV contact, per IEC61000-4-2
• Wide –3-dB Bandwidth = 2110 MHz Typical
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change control
• Packaged in 8-Lead TLLGA (1.5 mm x 1.5 mm)

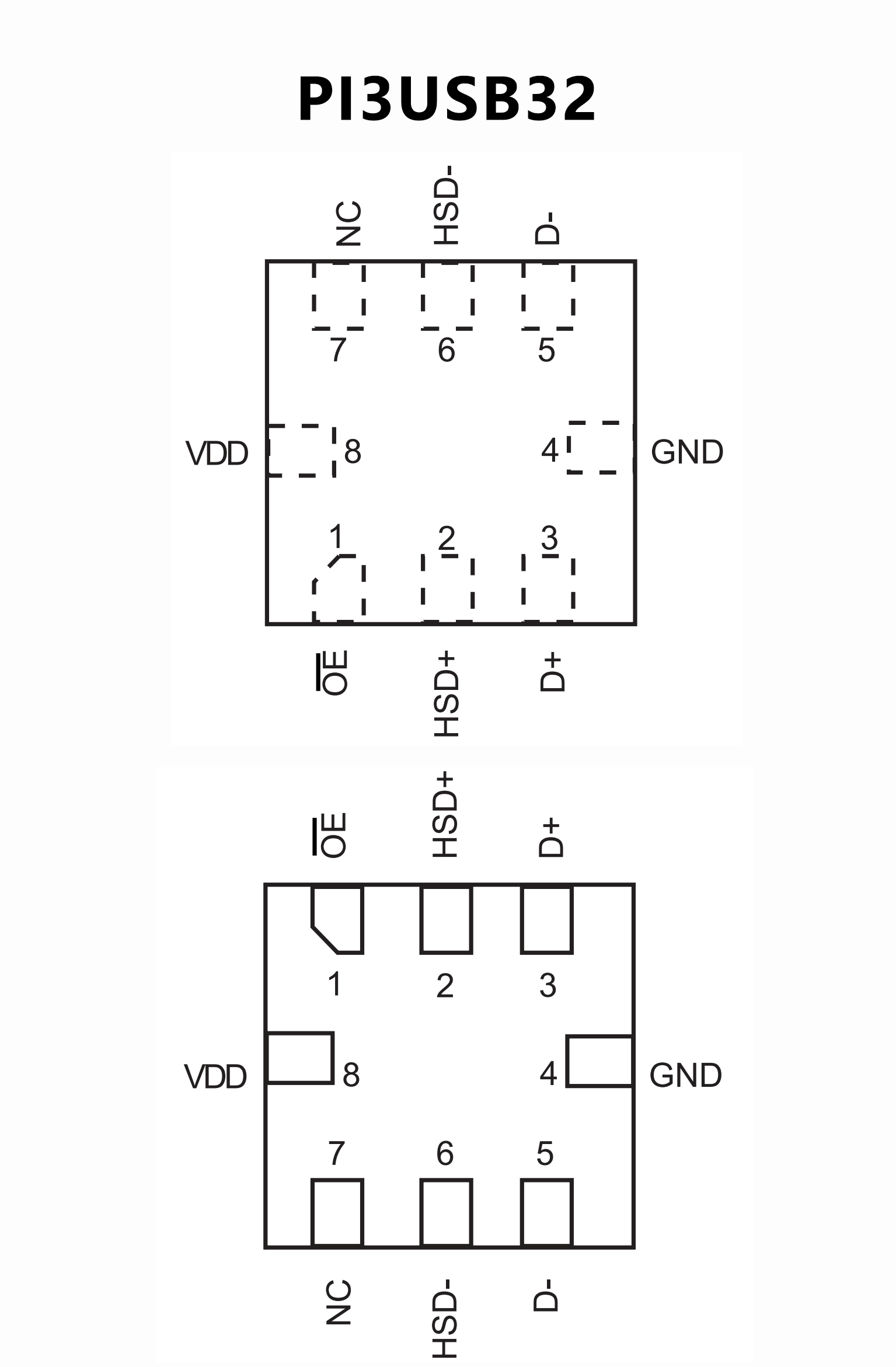

PIN CONFIGUTION
优势替代
FEATURES
• VCC Operation at 3 V and 4.3 V
• 1.8-V Compatible Control-Pin Inputs
• IOFF Supports Partial Power-Down Mode Operation
• ron = 10 Ω Maximum
• Δron <0.35 Ω Typical
• Cio(ON) = 6 pF Typical
• Low Power Consumption (1 µA Maximum)
• ESD Performance Tested Per JESD 22
– 6000-V Human-Body Model (A114-B, Class II)
– 1000-V Charged-Device Model (C101)
– 250-V Machine Model (A115-A)
• Wide –3-dB Bandwidth = 1220 MHz Typical
• Packaged in 8-Pin TQFN (1.5 mm × 1.5 mm)

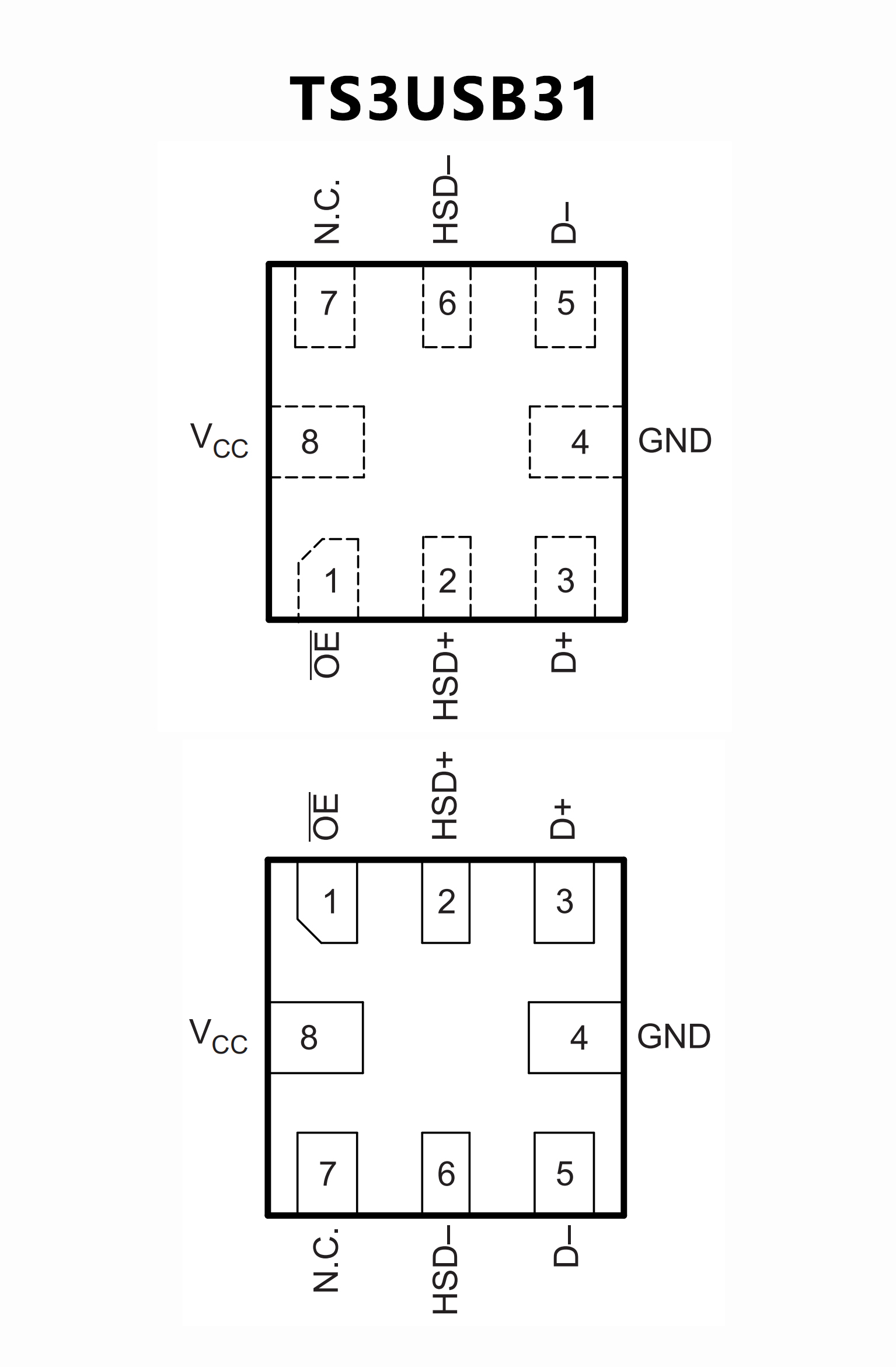

PIN CONFIGUTION
