• Operation Power Supply Voltage from 2.3V to 5.5V

• 16-bit Remote I/O Pins that Default to Inputs at

  Power-up

• 1 MHz PC-bus Interface

• Compliant with the PC-bus Fast and Standard Modes

• 5.5V Tolerant I/Os

• SDA with 30 mA Sink Capability for 4000 pF Buses

• Latched Outputs with 25 mA Sink Capability for

  Directly Driving LEDs

• Total Package Sink Capability of 400 mA

• Active LOW Open-drain Interrupt Output

• Low Standby Current

• 16 Programmable Slave Addresses using 2 Address Pins

• ESD Protection (4KV HBM and 1KV CDM)

• Latch-up Tested (exceeds 100mA)

• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• For automotive applications requiring specific change

  control

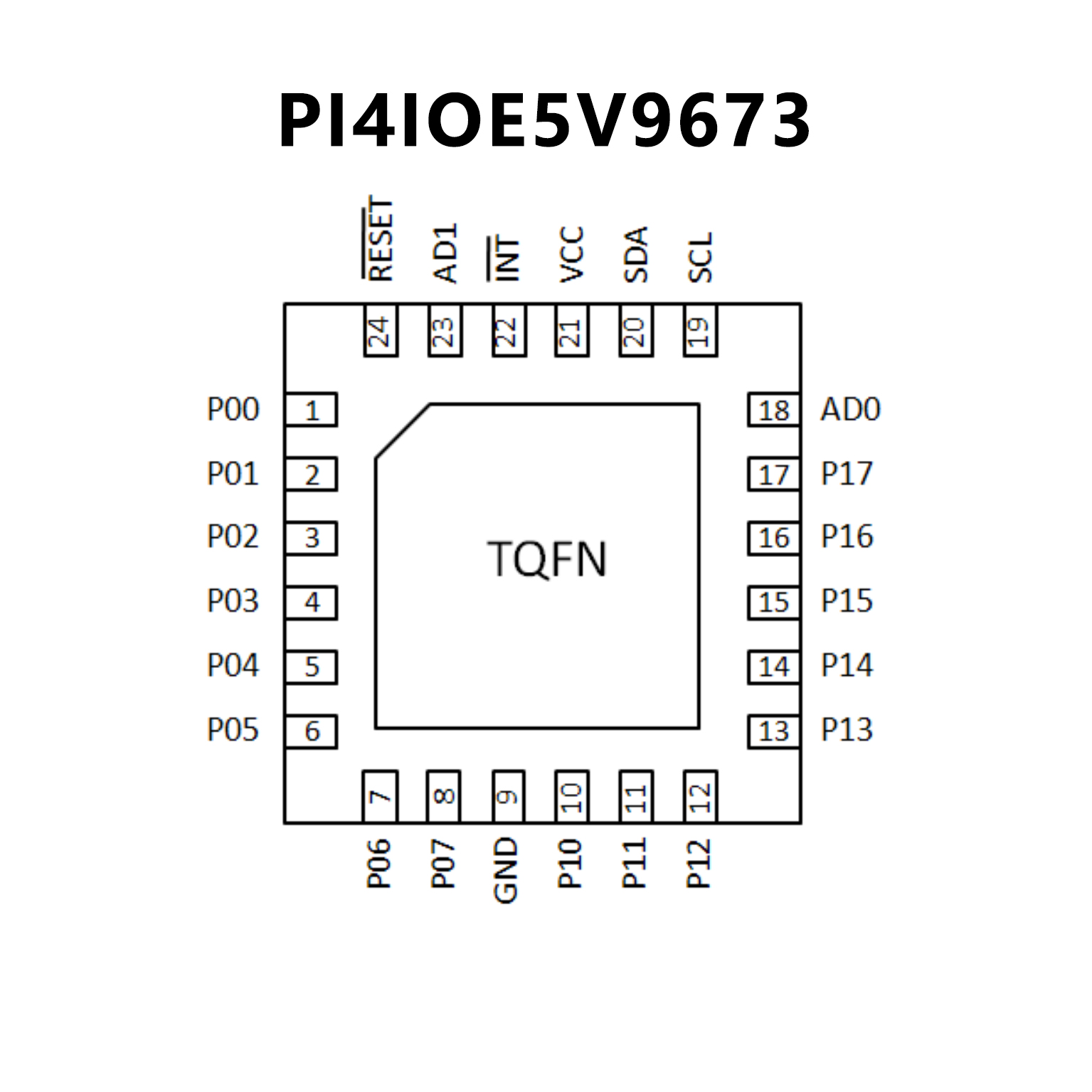

• Packaging (Pb-free & Green): 24-Pin, TQFN 4x4 (ZD)
