Precision 8-Channels, Differential 4-Channels, 36V Analog Multiplexers, PS509 Replace MUX509.
PS509
PS509.pdf
PS509.pdfFEATURES
•Low On-Capacitance
PS508: 30pF
PS509: 20pF
• Low Input Leakage: 30pA
• Low Charge Injection: 0.9pC
• Rail-to-Rail Operation
• Wide Supply Range: ±5V to ±18V, 10V to 36V
• Low On-Resistance: 125Ω
• Transition Time: 171ns
• Break-Before-Make Switching Action
• EN Pin Connectable to VDD
• Logic Levels: 2V to VDD
• Low Supply Current: 135µA
• ESD Protection HBM: 2000V
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change control
• Packaging (Pb-free & Green):
16-pin TSSOP (L)
16-pin QSOP (Q)
16-pin SOIC (W)

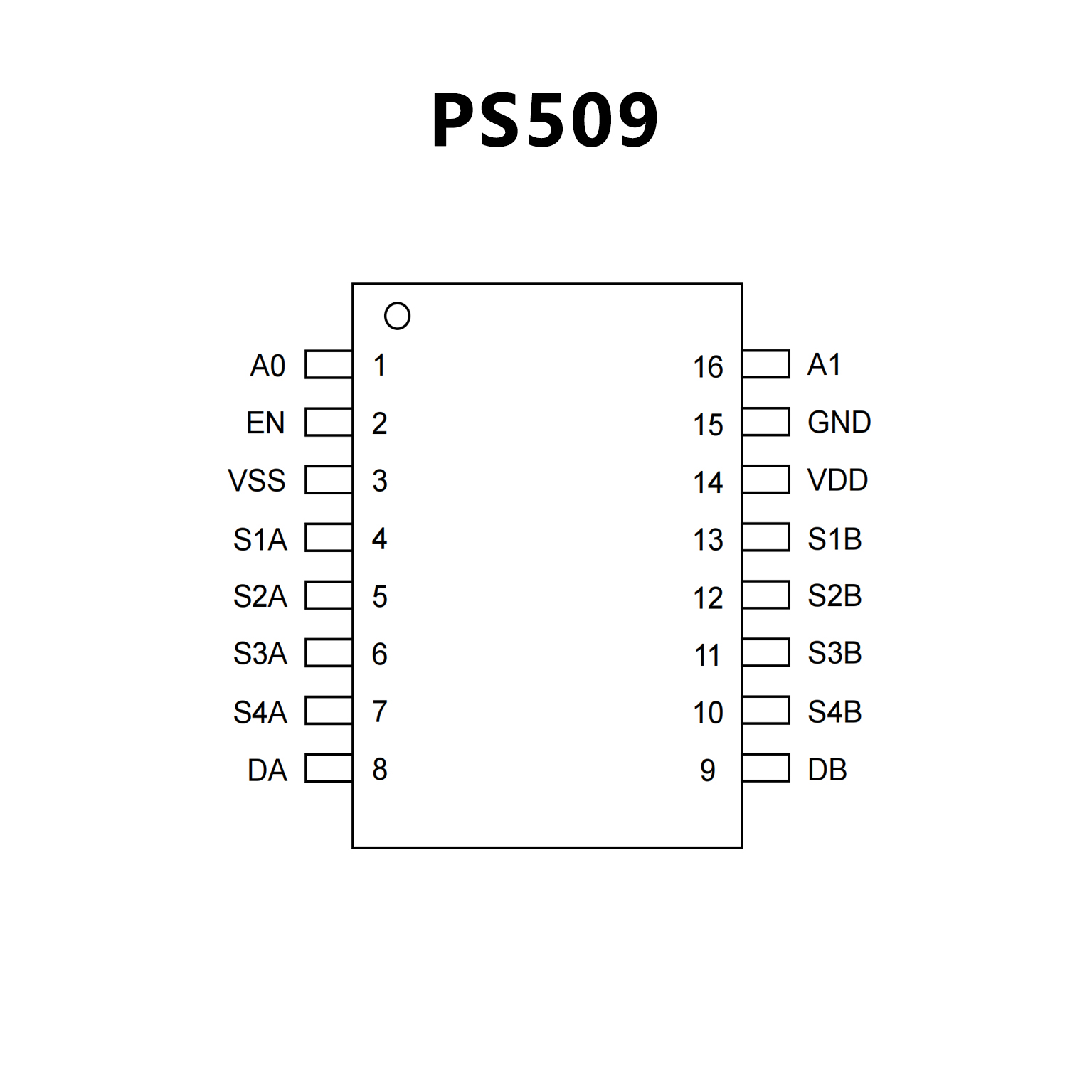

PIN CONFIGUTION
优势替代
FEATURES
• Low On-Capacitance
– MUX508: 9.4 pF
– MUX509: 6.7 pF
• Low Input Leakage: 10 pA
• Low Charge Injection: 0.3 pC
• Rail-to-Rail Operation
• Wide Supply Range: ±5 V to ±18 V, 10 V to 36 V
• Low On-Resistance: 125 Ω
• Transition Time: 92 ns
• Break-Before-Make Switching Action
• EN Pin Connectable to VDD
• Logic Levels: 2 V to VDD
• Low Supply Current: 45 µA
• ESD Protection HBM: 2000 V
• Industry-Standard TSSOP and SOIC Packages

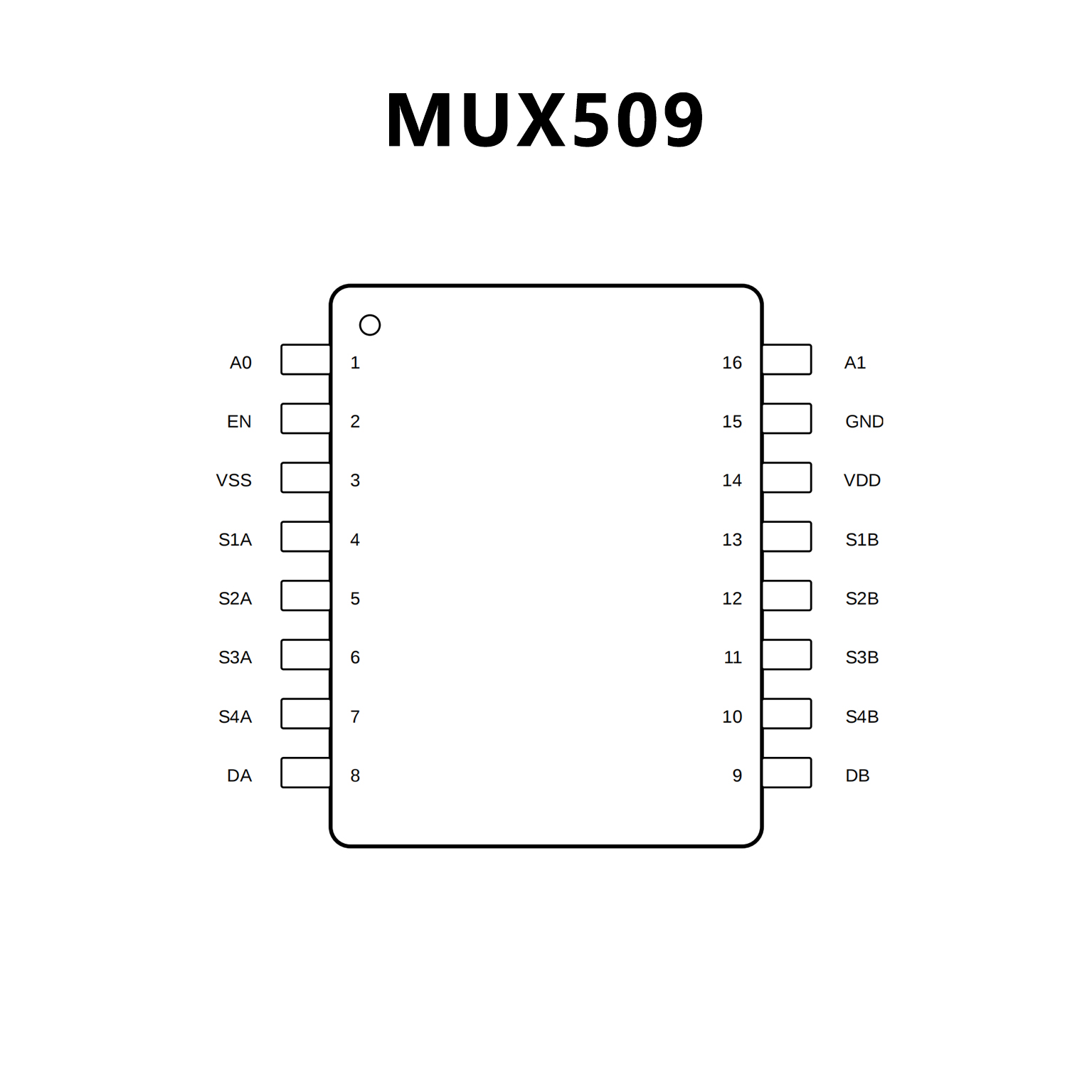

PIN CONFIGUTION
