• Qualified for Automotive Applications

• AEC-Q100 Qualified With the Following Results:

  - Device Temperature Grade 1: -40°C to 125°C

    Ambient Operating Temperature Range

  - Device HBM ESD Classification Level H1C

  - Device CDM ESD Classification Level C3B

• High Efficiency at Light Loads With Pulse Skipping

  Eco-mode^TM

• 92-mQ High-Side MOSFET

• 146-μA Operating Quiescent Current and 2-μA

  Shutdown Current

• 100-kHz to 2.5-MHz Adjustable Switching

  Frequency

• Synchronizes to External Clock

• Low Dropout at Light Loads With Integrated

  BOOT Recharge FET

• Adjustable UVLO Voltage and Hysteresis

• 0.8 V 1% Internal Voltage Reference

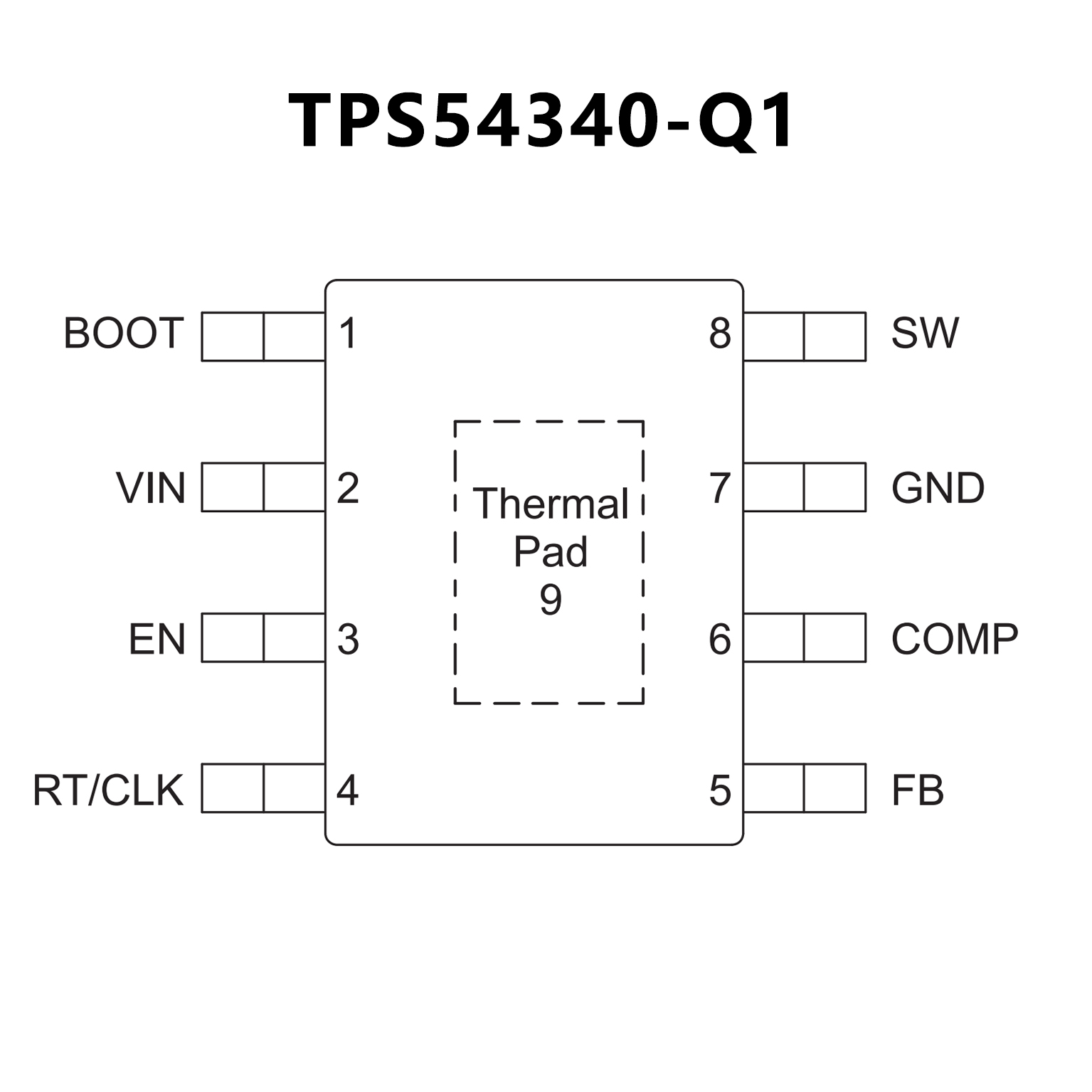

• 8-Pin HSOIC With PowerPADTM Package

• 40°C to 150°C T,Operating Range

• Supported by WEBENCH Software Tool
