• Qualified for Automotive Applications

  Device Temperature Grade 1: –40°C to

  125°C Ambient Operating Temperature Range

  Device HBM ESD Classification Level H1C

  Device CDM ESD Classification Level C3B

• High-Efficiency at Light Loads With Pulse-Skipping

  Eco-mode™

• 92-mΩ High-Side MOSFET

• 146-μA Operating Quiescent Current and 2-µA

  Shutdown Current

• 100-kHz to 2.5-MHz Adjustable Switching Frequency

• Synchronizes to External Clock

• Low Dropout at Light Loads With Integrated BOOT

  Recharge FET

• Adjustable UVLO Voltage and Hysteresis

• 0.8-V 1% Internal Voltage Reference

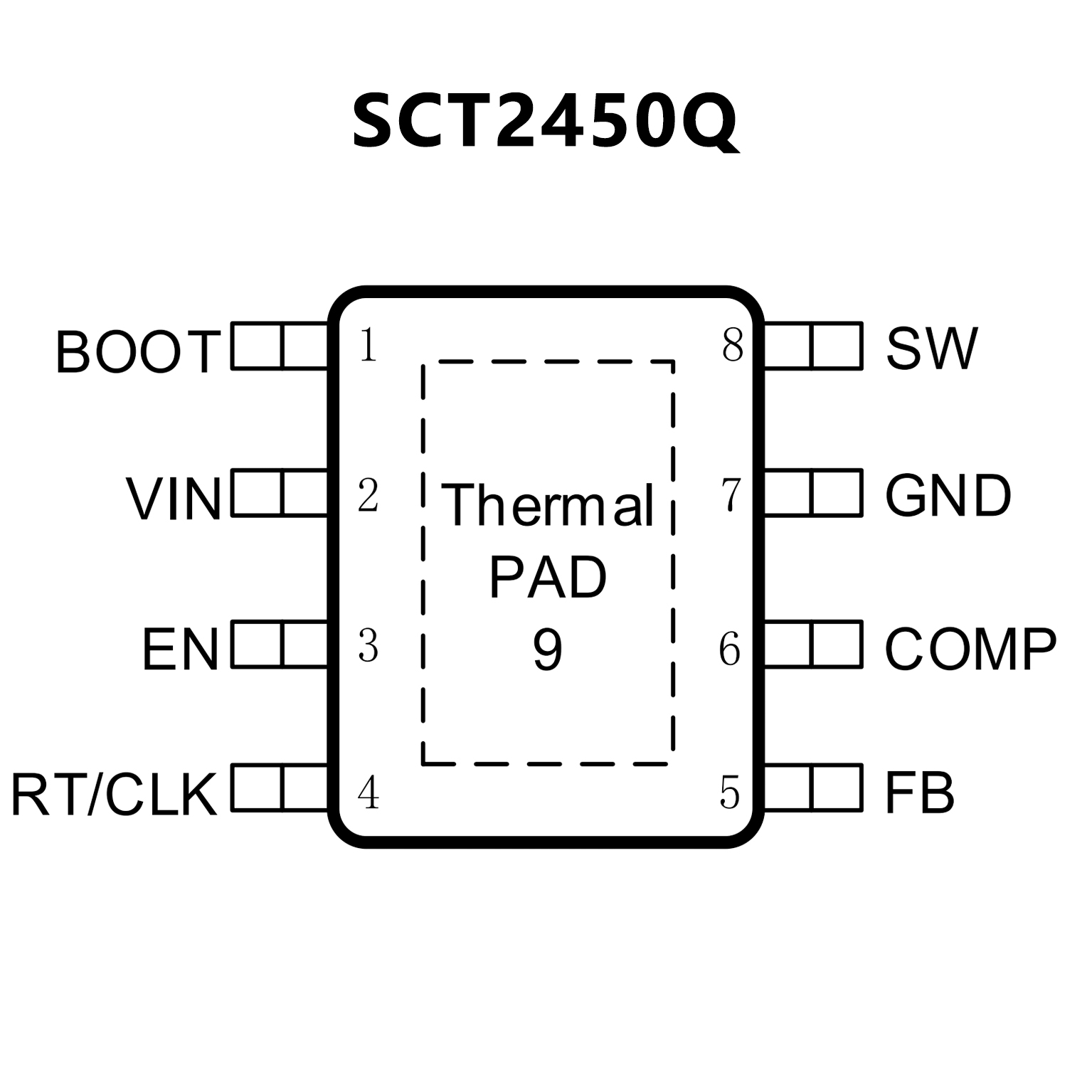

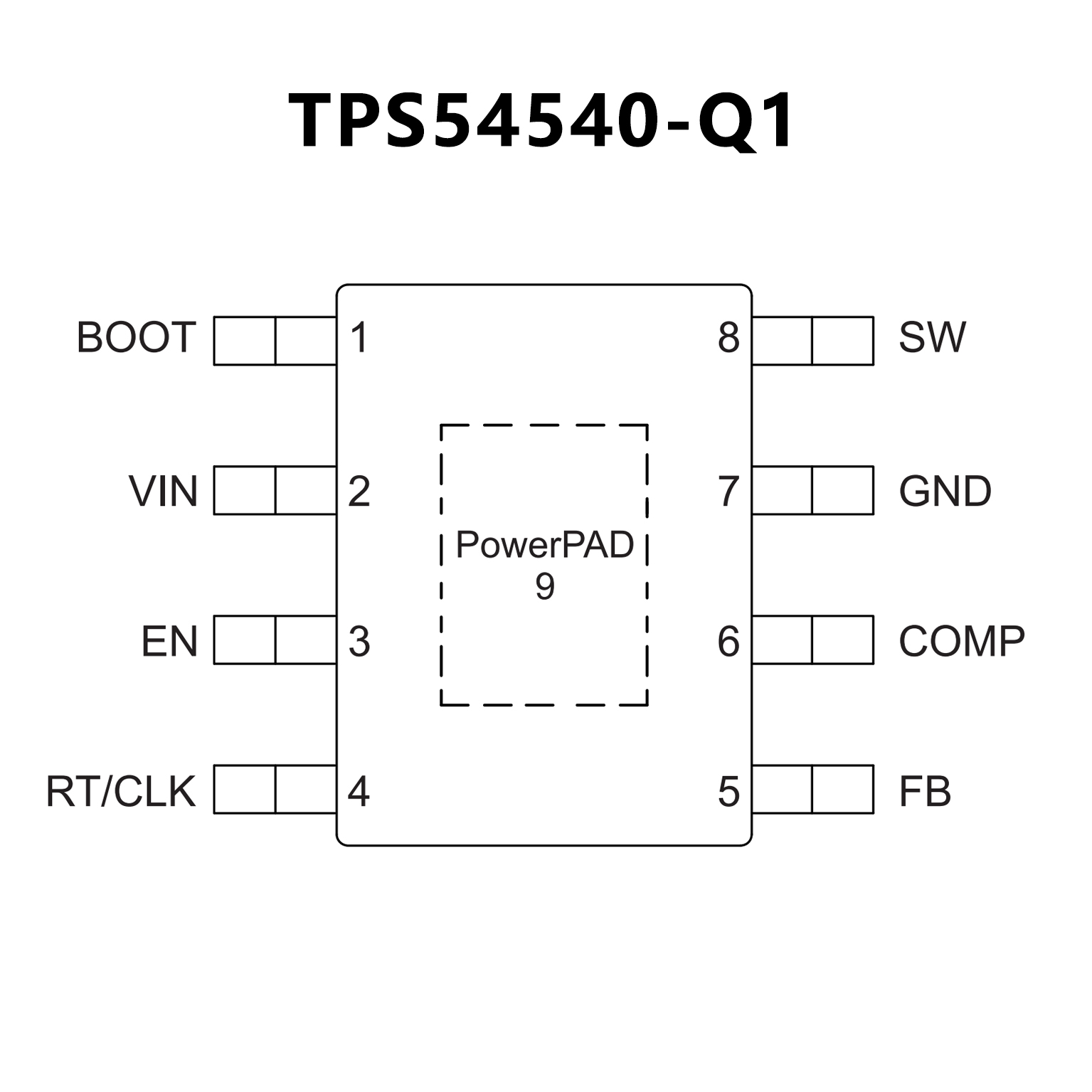

• 8-Pin HSOP PowerPAD™ Package

• –40°C to 150°C TJ Operating Range

• Supported by WEBENCH® Software Tool
