• Industry−Standard Pinouts

• 4.5 V to 18 V Operating Range

• 5 A Peak Sink/Source at V_DD = 12 V

• 4.3 A Sink / 2.8 A Source at V_OUT = 6 V

• Choice of TTL or CMOS Input Thresholds

• Three Versions of Dual Independent Drivers:

   Dual Inverting + Enable (FAN3223)

   Dual Non−Inverting + Enable (FAN3224)

   Dual−Inputs (FAN3225)

• Internal Resistors Turn Driver Off If No Inputs

• MillerDrive Technology

• 12 ns / 9 ns Typical Rise/Fall Times (2.2 nF Load)

• Under 20 ns Typical Propagation Delay Matched

  within 1 ns to the Other Channel

• Double Current Capability by Paralleling Channels

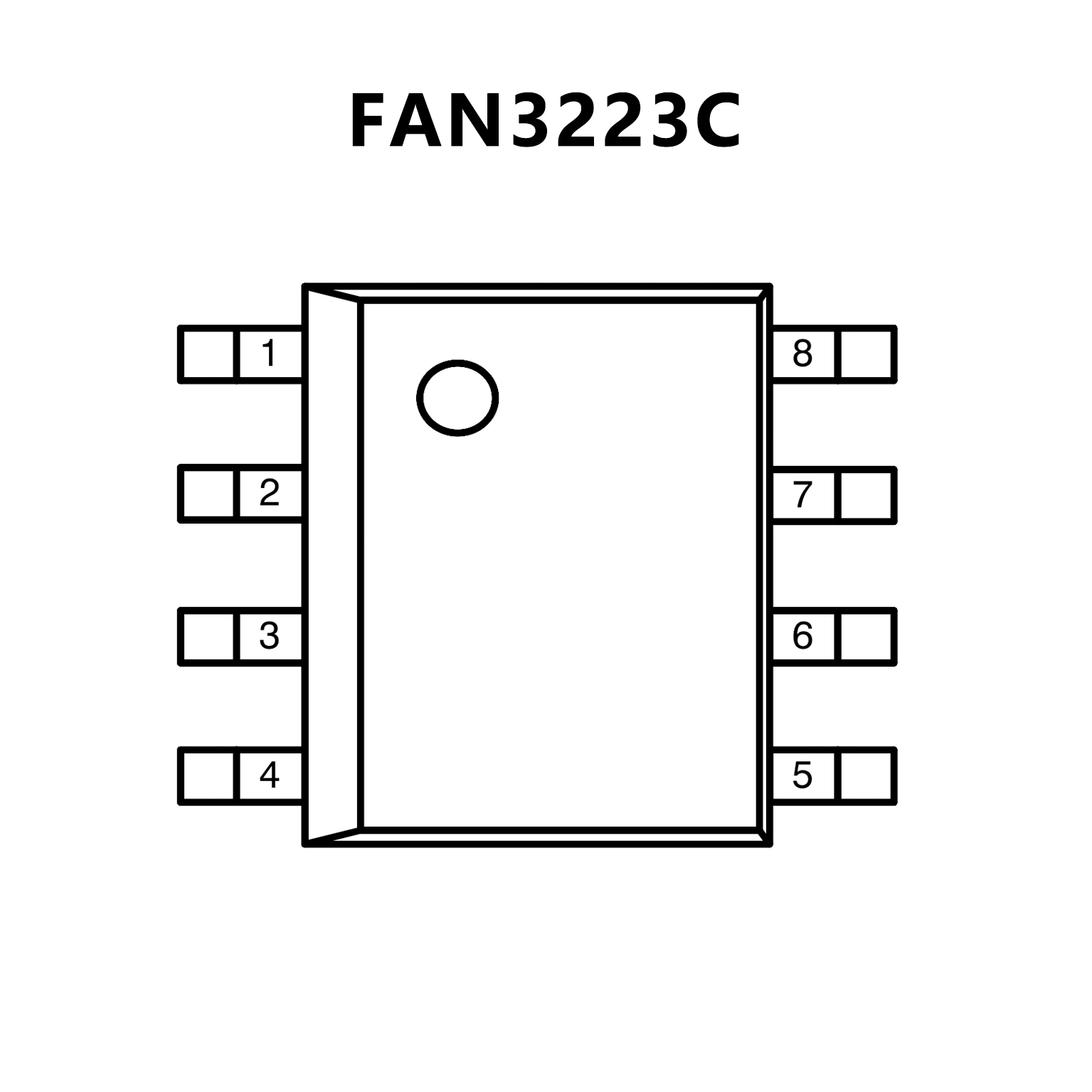

• 8−Lead SOIC and 8−Lead SOIC Exposed Pad Package

• Rated from –40°C to +125°C Ambient

• Automotive Qualified to AEC-Q100

• These are Pb−Free Devices
