Up to 24V Supply, 4A Dual Channel High Speed Low Side Driver, SCT52240Q Replace MCP14A0455.
SCT52240Q
SCT52240Q.pdf
SCT52240Q.pdfFEATURES
• Qualified for Automotive Applications
• AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: -40°C to 125°C
Ambient Operating Temperature Range
- Device HBM ESD Classification Level H2
- Device CDM ESD Classification Level C3B
• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink
Current
• Stackable Output for Higher Driving Capability
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Typical Delay Matching: 1ns
• Low Quiescent Current: 55uA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C
• Available in SOP-8 Package

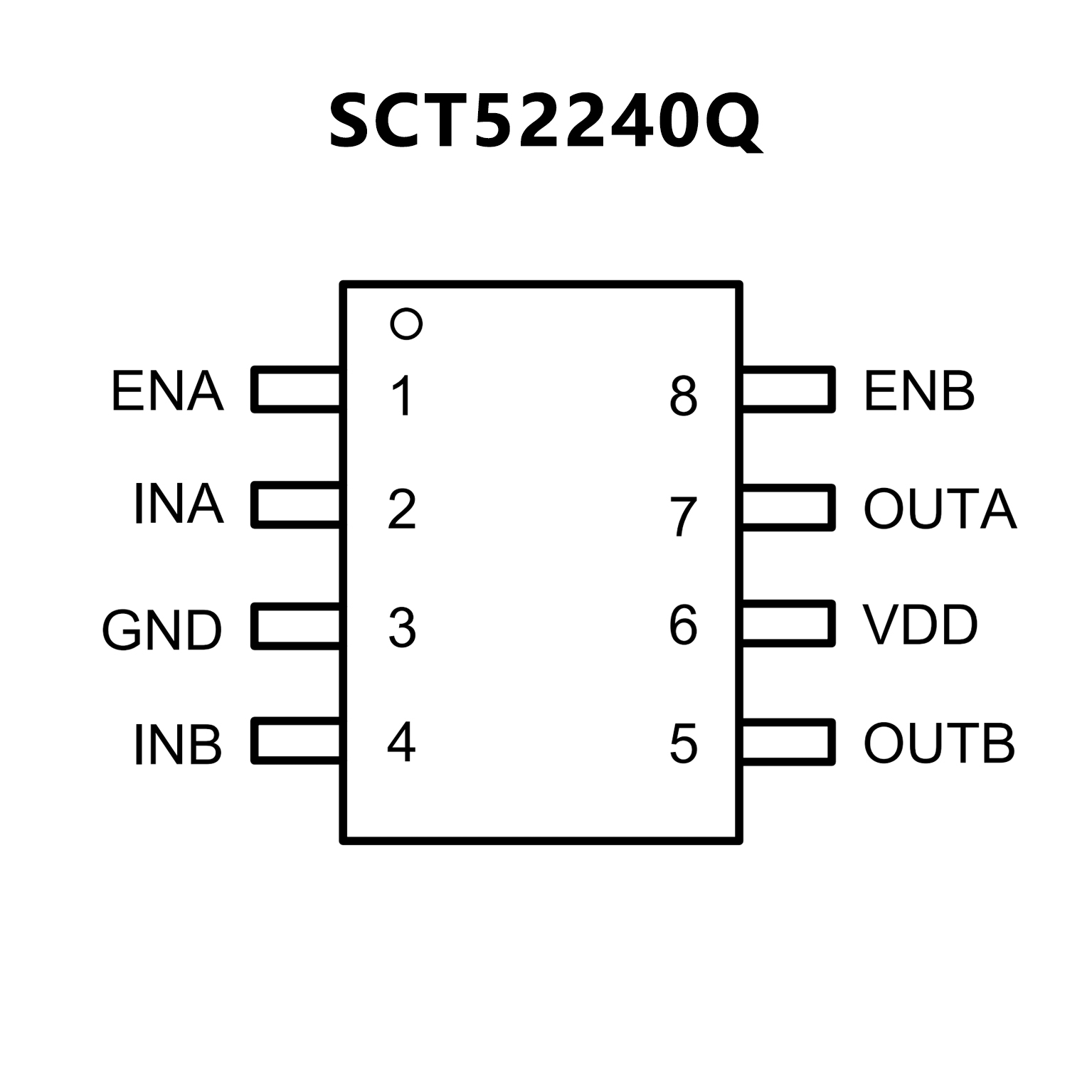

PIN CONFIGUTION
优势替代
FEATURES
• AEC-Q100 Qualified
• High Peak Output Current: 4.5A (typical)
• Wide Input Supply Voltage Operating Range:
- 4.5V to 18V
• Low Shoot-Through/Cross-Conduction Current in
Output Stage
• High Capacitive Load Drive Capability:
- 2200 pF in 12 ns (typical)
• Short Delay Times: 16 ns (tD1), 19 ns (tD2) (typical)
• Low Supply Current: 620 µA (typical)
• Low-Voltage Threshold Input and Enable with
Hysteresis
• Latch-Up Protected: Withstands 500 mA Reverse
Current
• Space-Saving Packages:
- 8-Lead MSOP
- 8-Lead SOIC
- 8-Lead 2 x 3 TDFN

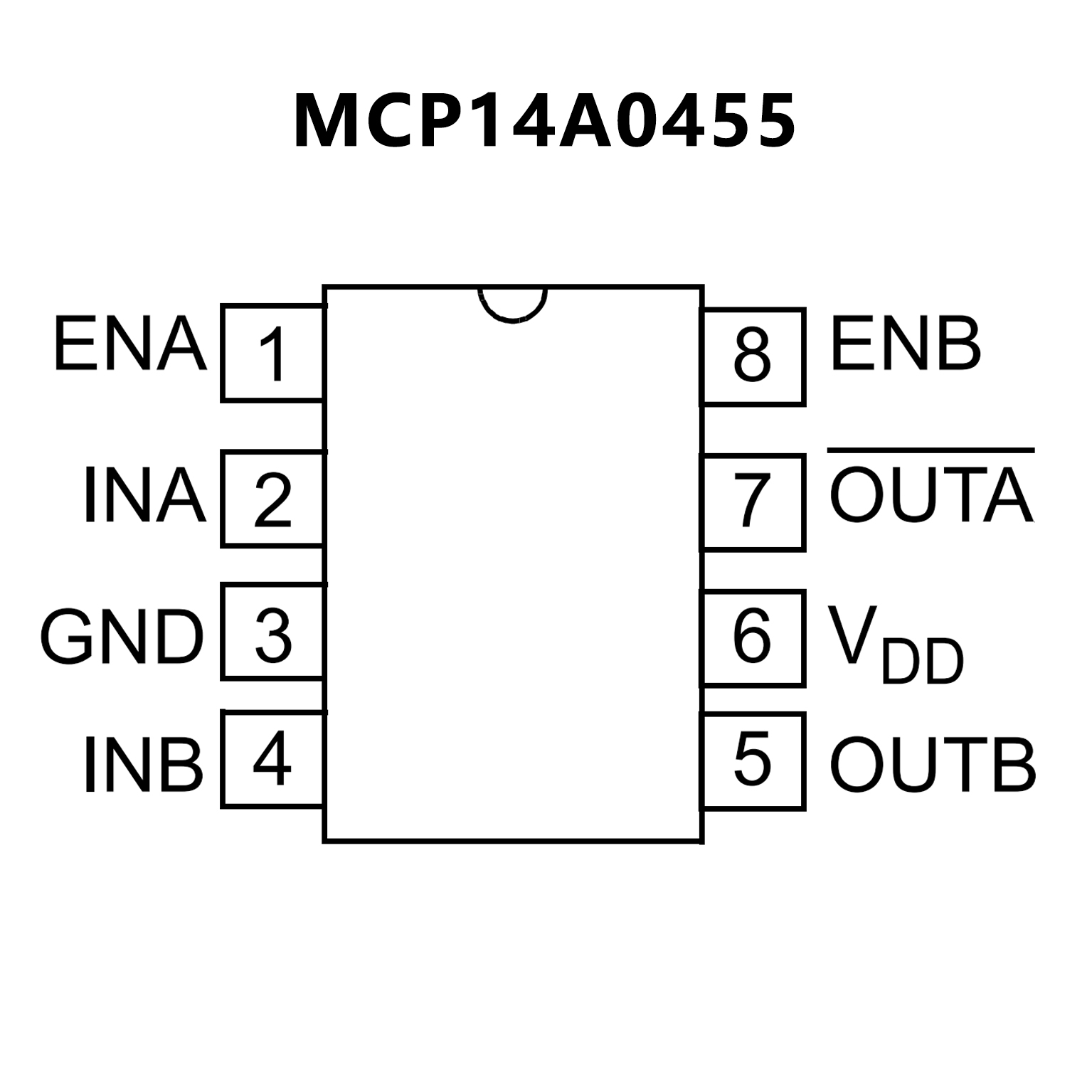

PIN CONFIGUTION
