• Input Voltage Range (Maximum Rating) 1.4V to 5.25V (6.0V)

• Operating Temperature  −40°C to 105°C

• Supply Current Typ. 80 µA

• Standby Current Typ. 0.1 µA

• Dropout Voltage Typ. 0.23V (IOUT = 500 mA、VSET = 2.5V)

• Ripple Rejection  Typ. 75 dB (f = 1 kHz)

                               Typ. 70 dB (f = 10 kHz)

• Output Voltage Accuracy ±0.8% (VSET ≥ 1.8 V)

• Output Voltage Temperature Coefficient Typ. ±30 ppm/°C (VSET ≥ 1.8 V)

• Feedback Voltage Accuracy  0.7±18 mV

• Feedback Voltage Temperature Coefficient Typ. ±100 ppm/°C

• Line Regulation Typ. 0.02%/V

• VIN ≥ 1.4 V, IOUT = 30 mA)

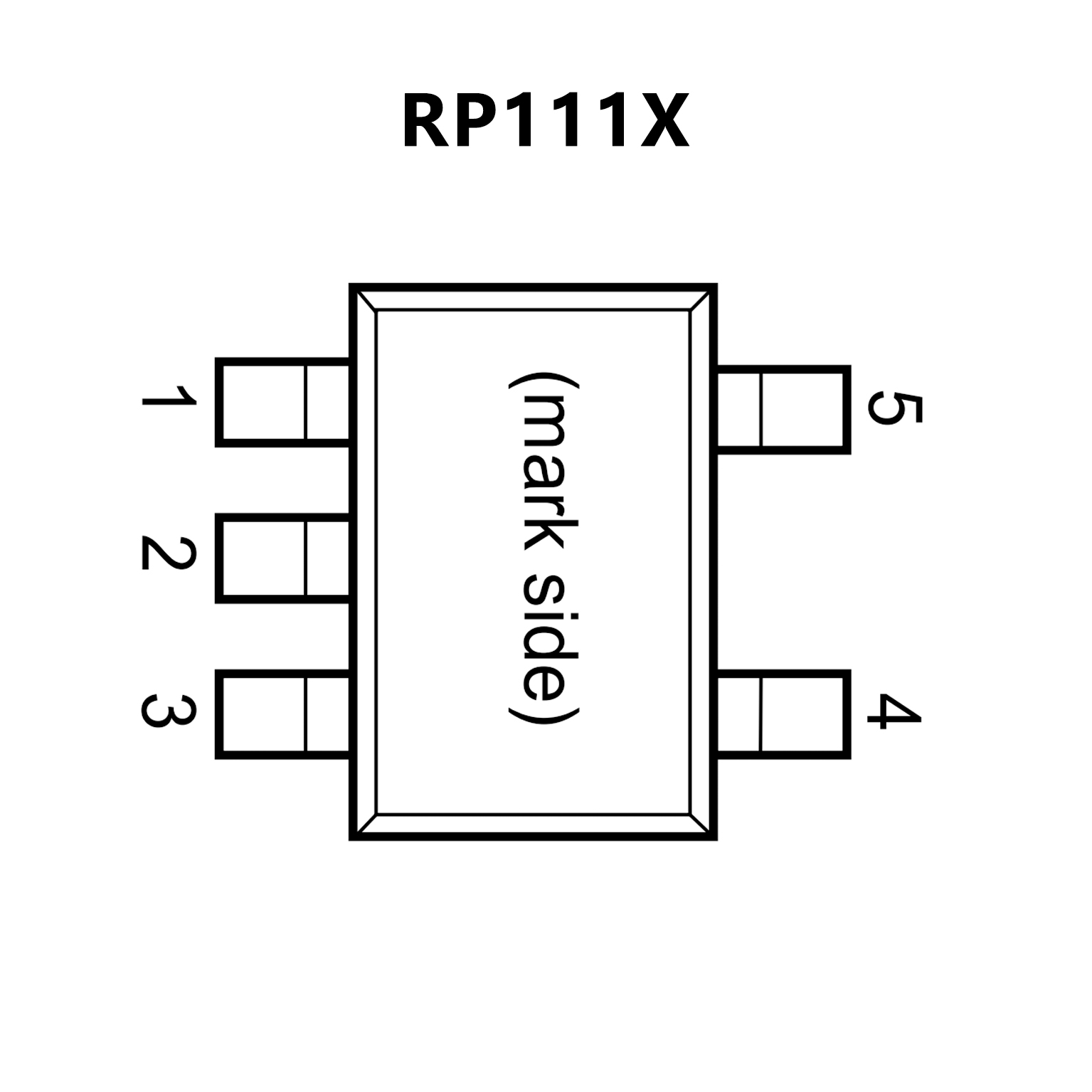

• Packages SOT-23-5, SOT-89-5, HSOP-6J

• Output Voltage Range  0.7 V, 1.1 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V,

  2.8 V, 2.85 V, 2.9 V, 3.0 V,3.3 V, 3.4 V

• Built-in Fold-back Protection Circuit Typ. 50 mA

• Thermal Shutdown Temperature 165°C

• Inrush Current Limit Typ. 400 mA (for 180 s after start-up)

• Ceramic capacitors are recommended to be used with this

  IC 1.0 F or more (Internally Fixed Output Voltage)

• Output Noise 20 x VSErms (BW = 10 Hz to 100 kHz, VSET ≥ 1.8 V)

• Input Transient Response
