40V, 150mA, Low Quiescent Current Linear Regulator, SCT71402 Replace MP2013.
SCT71402
SCT71402.pdf
SCT71402.pdfFEATURES
• Wide Input Range: 3V-40V
• With up to 45V Transient Input Voltage
• Maximum Output Current: 200mA
• Output Voltage: 1.215V~25V
• Output Voltage Accuracy:
- TJ = 25℃ : ±1%
- TJ = -40℃~ 125℃ : ±2%
• Ultra-Low Quiescent Current: 2.6µA
• Low Dropout Voltage ：
- 270mV at 200mA load current
• Support Output Capacitors Range:
- 3.3uF~220uF
- Low-ESR: 0.001Ω~ 5 Ω
• 1.6ms Internal Soft-start Time
• Current Limit Protection with VIN_HIGH Control
• Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
• Over-Temperature Protection
• Available Package: TDFN3X3-8

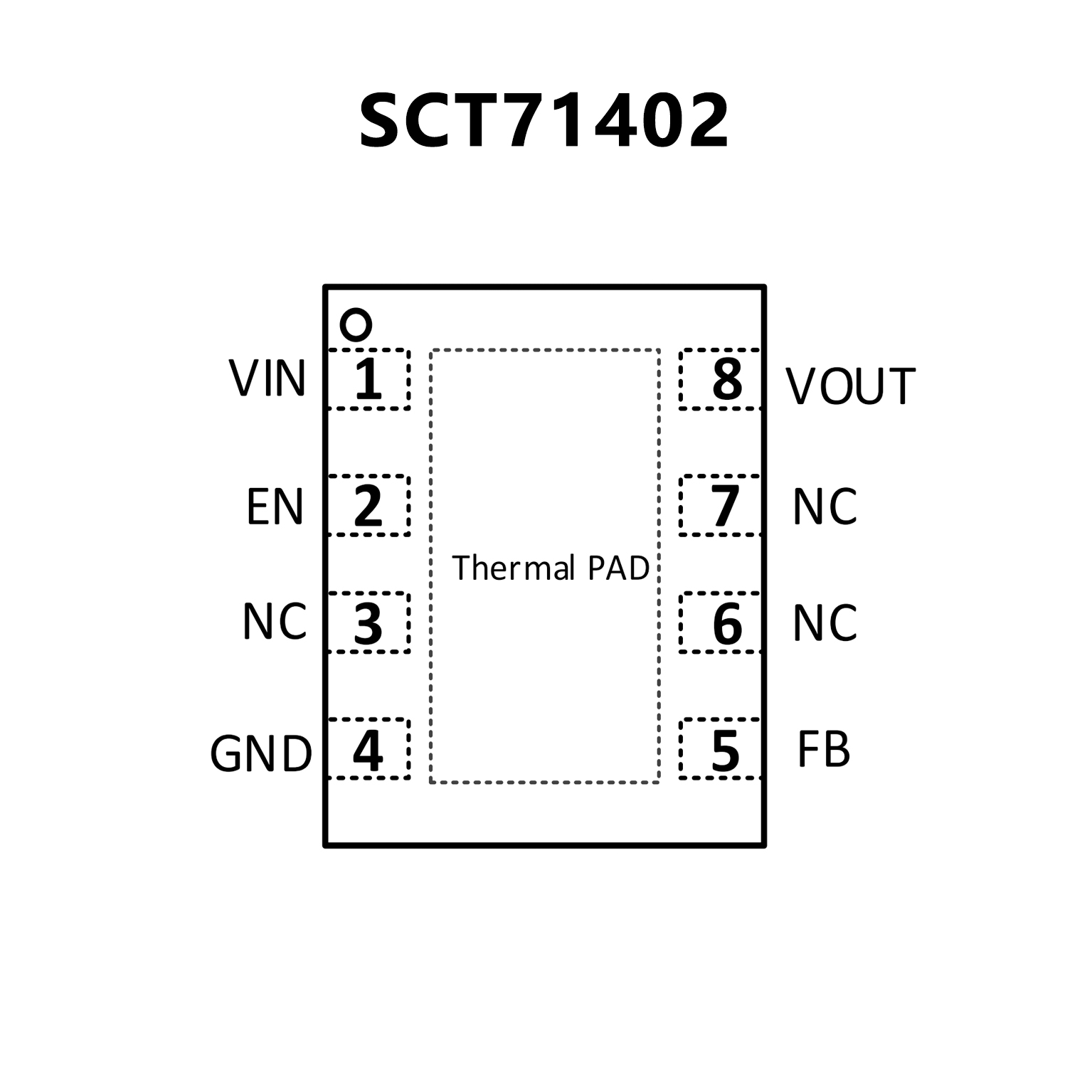

PIN CONFIGUTION
优势替代
FEATURES
• 2.5V to 40V Input Range
• 3.2µA Quiescent Supply Current
• Stable With low-value output ceramic capacitor (> 0.47 μF)
• 150mA specified current
• 620mV Dropout at 150mA Load
• Available in Fixed and Adjustable output
(1.215 V to 15 V) versions
• Output ±2% Accuracy
• Specified current limit
• Thermal Shutdown
• -40°C to +125°C Specified Junction
Temperature Range
• Available in TSOT23-5, QFN6 (2x2mm), or
QFN8 (3x3mm) Packages
PIN CONFIGUTION
