60V Input, 100mA Output Current, Low Quiescent Current LDO, SCT71801Q Replace TPS7A16A-Q1.
SCT71801Q
SCT71801Q.pdf
SCT71801Q.pdfFEATURES
• Qualified for Automotive Applications
• AEC-Q100 Qualified with the Following Results:
• - Device Temperature Grade 1: -40°C to 125°C
• Wide Input Range: 3V-80V
• Maximum Output Current: 100mA
• Adjustable Voltage: 1.2V-30V
• Output Voltage Accuracy:
- TJ = 25℃ : ±1%
- TJ = -40℃~ 125℃ : ±2%
• Low Quiescent Current: 4 uA
• Ultra-Low Shutdown Current: 0.23uA
• Low Dropout Voltage ：
- 60mV at 20mA load current
- 340mV at 100mA load current
• 720us Internal Soft-start Time
• Integrated Short-Circuit Protection with OCFB
(Over Current Fold-back) Feature
• Enable pin is available
• Over-Temperature Protection
• Active Output Discharge
• Available Package: eMSOP3x3-8

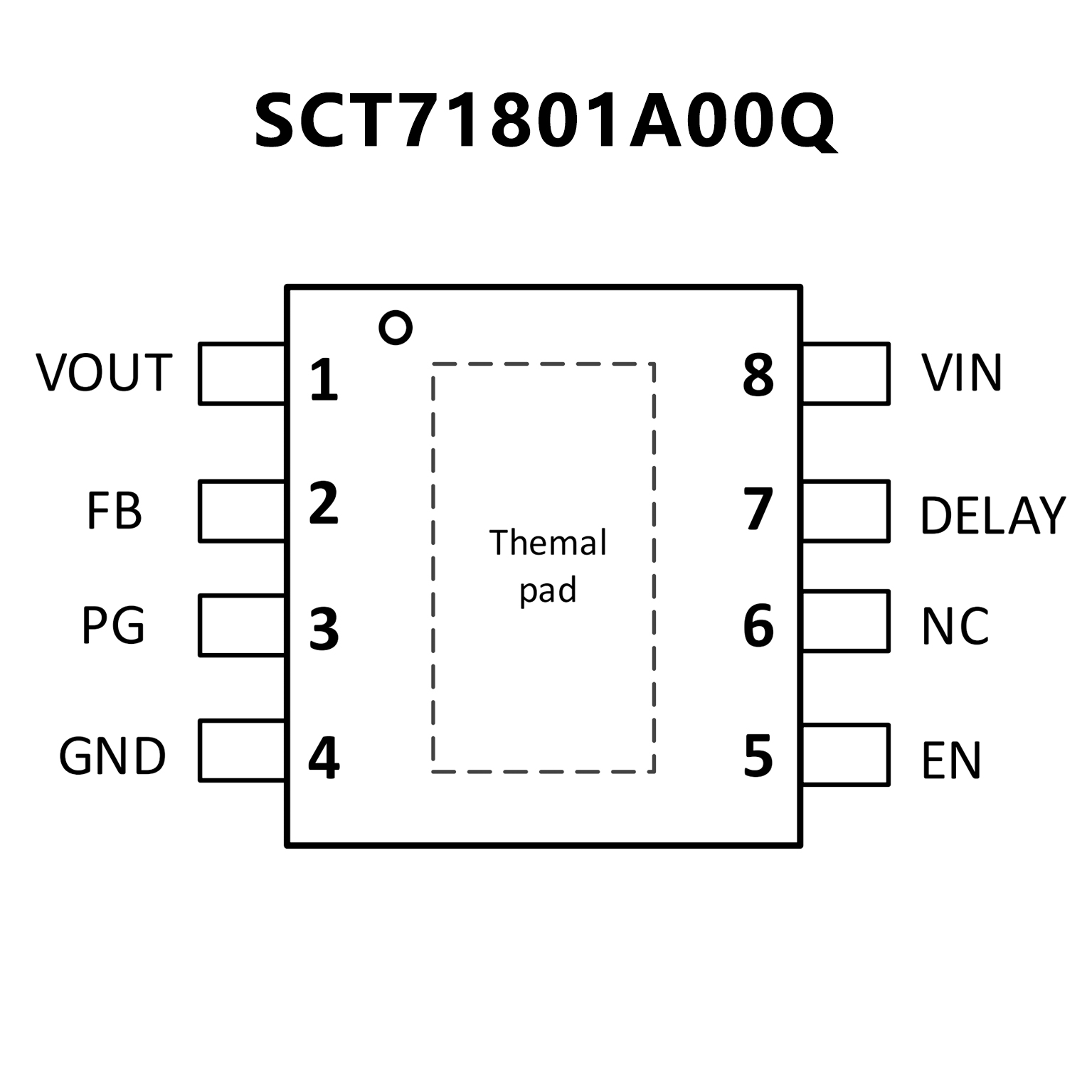

PIN CONFIGUTION
优势替代
FEATURES
• Qualified for automotive applications
• AEC-Q100 qualified with the following results:
– Device temperature grade 1: –40°C to 125°C
ambient operating temperature range
– Device HBM ESD classification level 2
– Device CDM ESD classification level C3B
• Wide input voltage range: 3 V to 60 V
• Ultralow quiescent current: 5 µA
• Quiescent current at shutdown: 1 µA
• Output current: 100 mA
• Low dropout voltage: 60 mV at 20 mA
• Accuracy: 2%
• Available in:
– Fixed output voltage: 3.3 V, 5 V
– Adjustable version from approximately 1.2 to
18.5 V
• Power-good with programable delay
• Current-limit and thermal shutdown protections
• Stable with ceramic output capacitors: ≥ 2.2 µF
• Package: High-thermal-performance HVSSOP-8
PowerPAD™

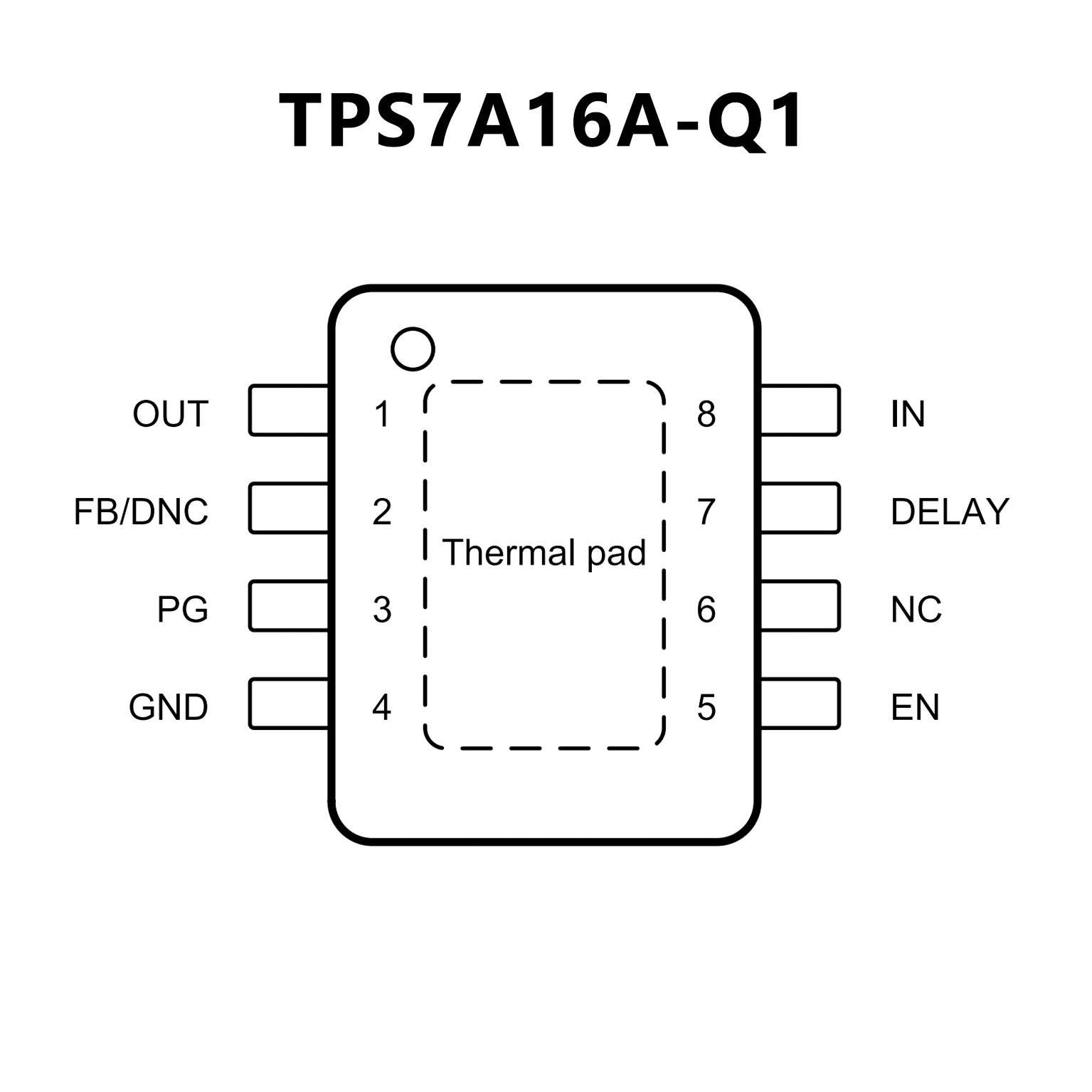

PIN CONFIGUTION
