Low Power, High Accuracy Analog Output Temperature Sensor, SGM450 Replace MCP9700.
SGM450
SGM450.pdf
SGM450.pdfFEATURES
• Wide Temperature Measurement Range: -40℃ to +150℃
• Temperature Accuracy: ±2°C (MAX): -40℃ to +150℃
• Positive Slope Sensor Gain: 10mV/°C (TYP)
• Output Voltage Offset: 500mV at 0℃ (TYP)
• Wide Power Supply Range: 2.3V to 5.5V
• Short-Circuit Protected Output
• Low Quiescent Current: 7.5μA (TYP)
• Class-AB Structure Output
• Able to Drive Capacitive Load up to 1000pF
• Available in Green SC70-5 and SOT-23 Packages

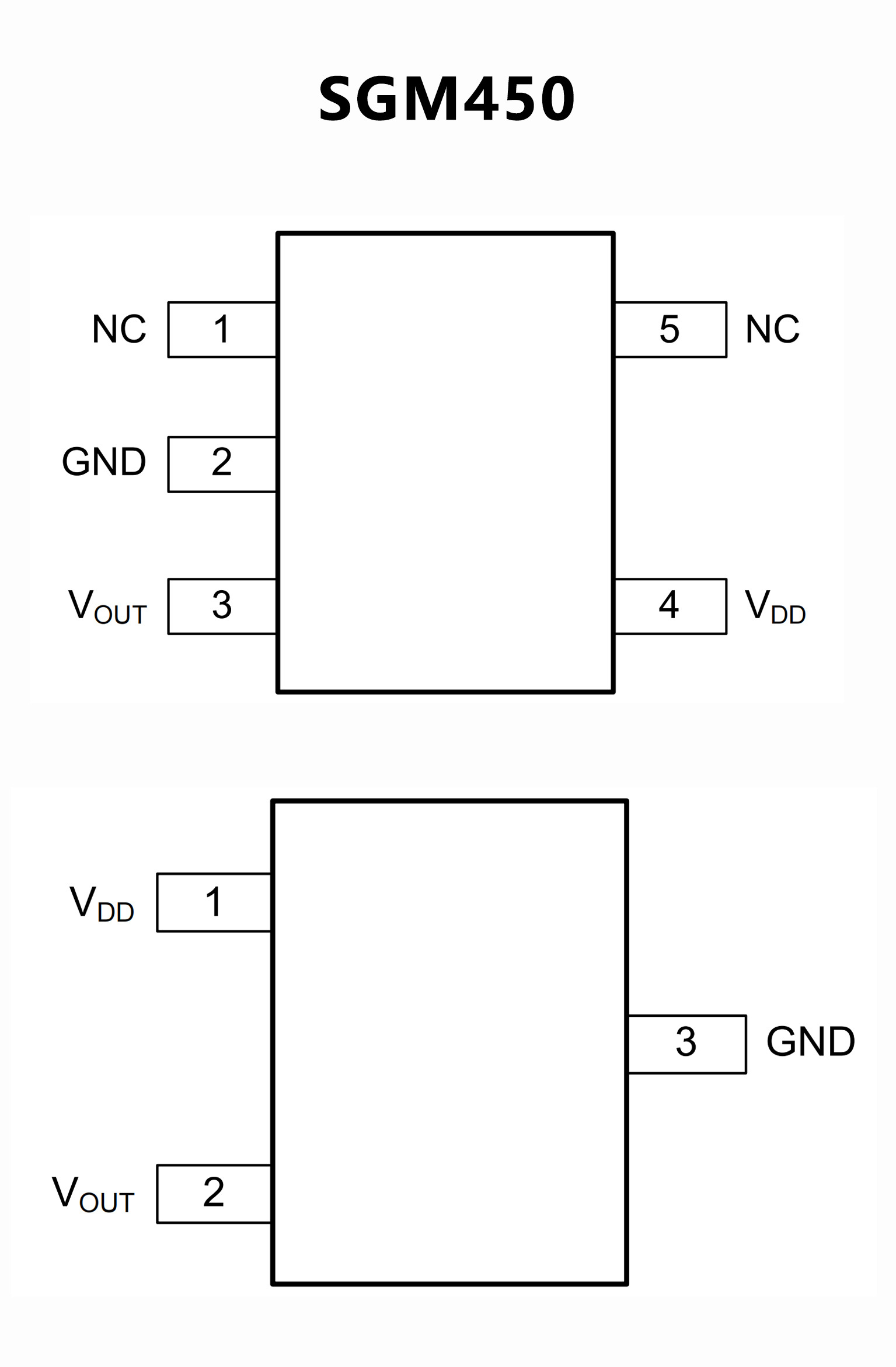

PIN CONFIGUTION
优势替代
FEATURES
• Tiny Analog Temperature Sensor
• Available Packages:
- SC70-5, SOT-23-3, TO-92-3
• Wide Temperature Measurement Range:
- -40°C to +125°C (Extended Temperature)
- -40°C to +150°C (High Temperature)
(MCP9700, SOT-23-3 and SC70-5 only)
• Accuracy:
- ±2°C (max.), 0°C to +70°C (MCP9700A/9701A)
- ±4°C (max.), 0°C to +70°C (MCP9700/9701)
• Optimized for Analog-to-Digital Converters (ADCs):
- 10.0 mV/°C (typical) (MCP9700/9700A)
- 19.5 mV/°C (typical) (MCP9701/9701A)
• Wide Operating Voltage Range:
- VDD = 2.3V to 5.5V (MCP9700/9700A)
- VDD = 3.1V to 5.5V (MCP9701/9701A)
• Low Operating Current: 6 µA (typical)
• Optimized to Drive Large Capacitive Loads

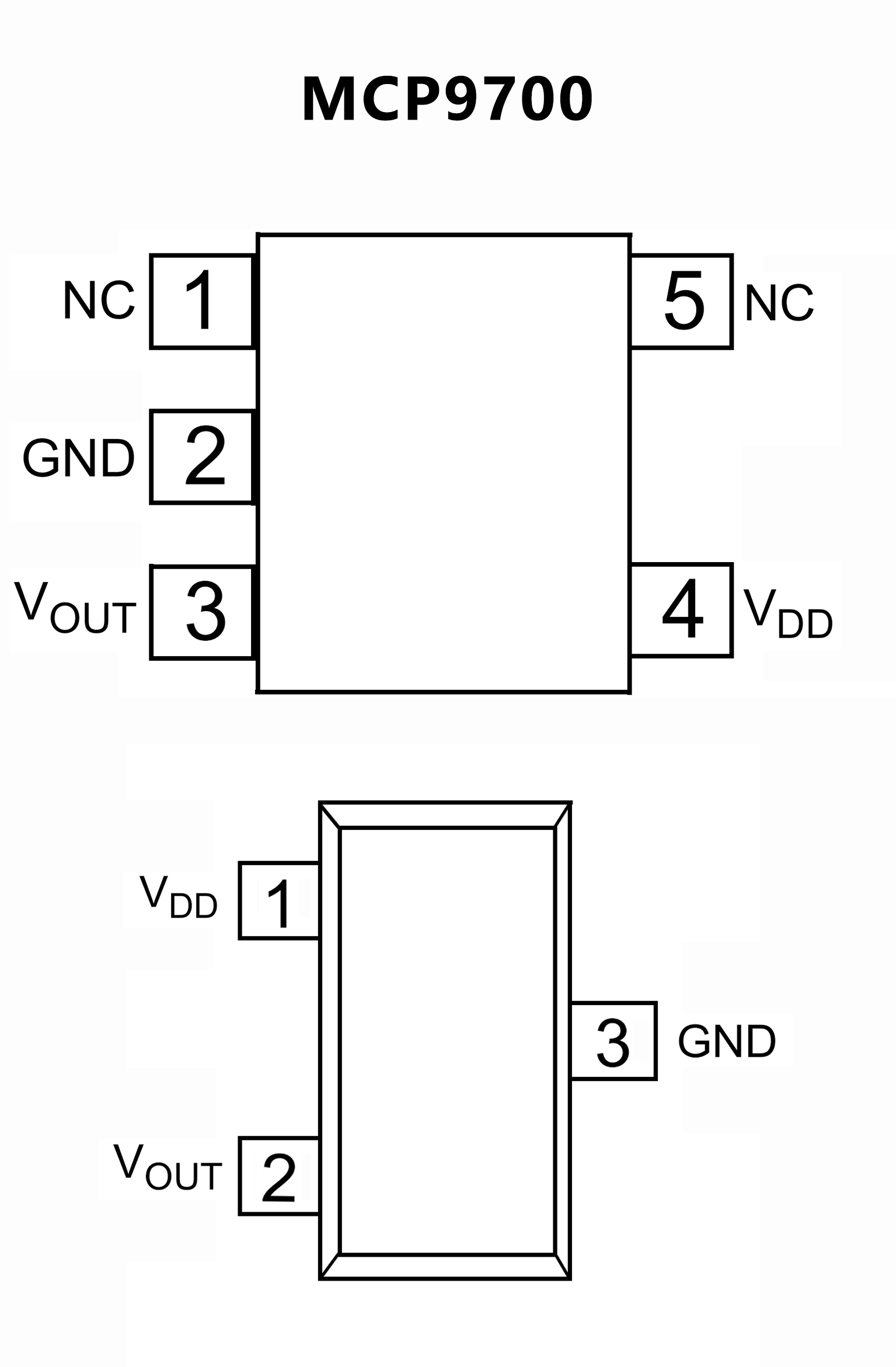

PIN CONFIGUTION
