High Voltage, CMOS Analog Multiplexer, SGM4582YTS16G/TR Replace 74HC4052PW.
SGM4582YTS16
SGM4582YTS16.pdf
SGM4582YTS16.pdfFEATURES
• Guaranteed On-Resistance 51Ω with
±5V Supplies 84Ω with Single +5V Supply
• Guaranteed On-Resistance Match Between Channels
• Low Off-Leakage Current 10nA at +25℃
• Low On-Leakage Current 10nA at +25℃
• ±1.8V to ±5.5V Dual-Supply Operation
+3.6V to +11V Single-Supply Operation
• TTL/CMOS-Logic Compatible
• Low Distortion: 0.08%
(RL = 600Ω, f = 20Hz to 20kHz)
• High Off-Isolation: -66dB
(RL = 50Ω, f = 1MHz)
• Low Crosstalk: -100dB
(RL = 50Ω, f = 1MHz)
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOIC-16, SSOP-16,
TSSOP-16 and TQFN-3×3-16L Packages

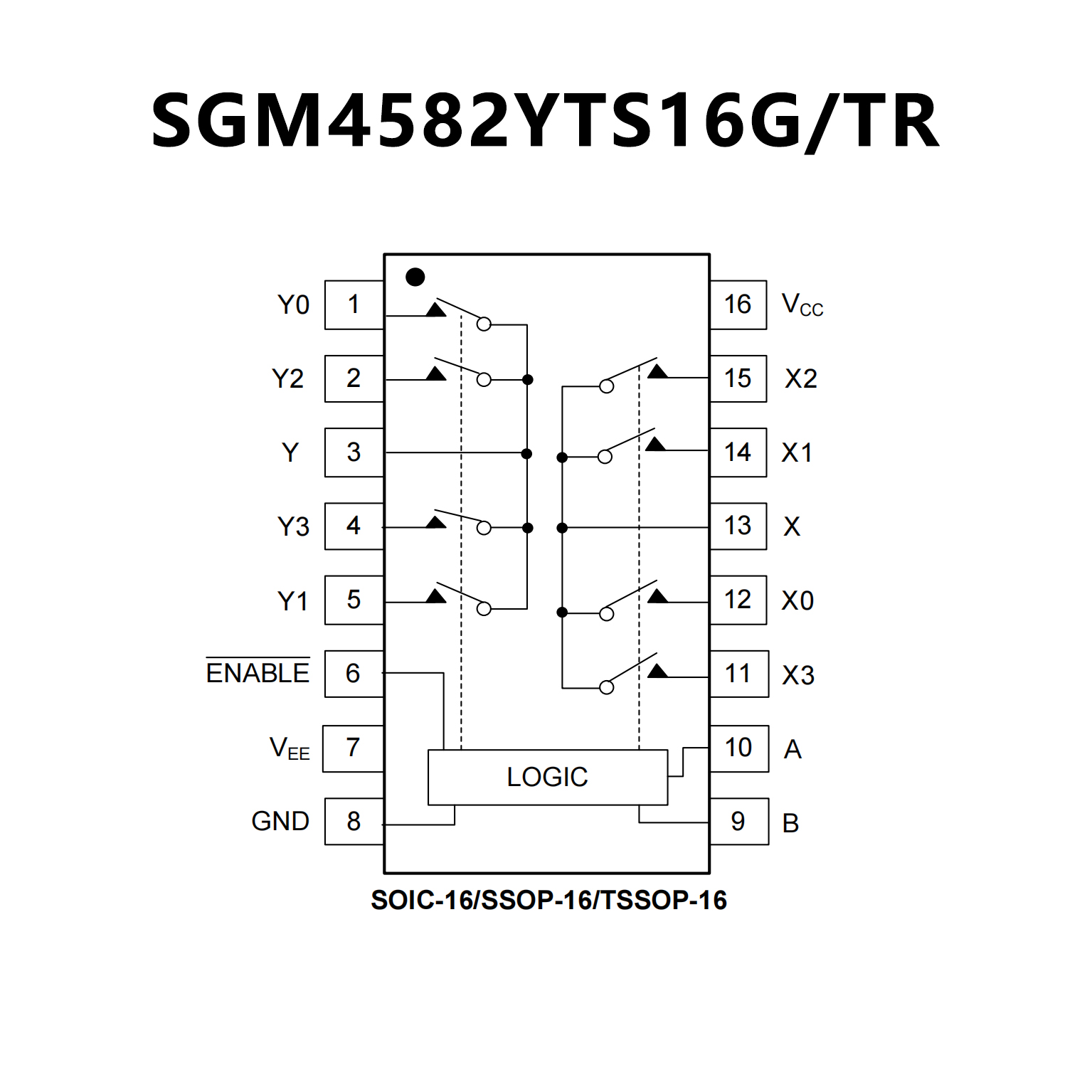

PIN CONFIGUTION
优势替代
FEATURES
• Wide analog input voltage range from -5 V to +5 V
• CMOS low power dissipation
• High noise immunity
• Latch-up performance exceeds 100 mA per JESD 78
Class II Level B
• Low ON resistance:
• 80 Ω (typical) at VCC - VEE = 4.5 V
• 70 Ω (typical) at VCC - VEE = 6.0 V
• 60 Ω (typical) at VCC - VEE = 9.0 V
• Logic level translation: to enable 5 V
logic to communicate with ±5 V analog signals
• Typical ‘break before make’ built-in
• Complies with JEDEC standards:
• JESD8C (2.7 V to 3.6 V)
• JESD7A (2.0 V to 6.0 V)
• Input levels:
• For 74HC4052: CMOS level
• For 74HCT4052: TTL level
• ESD protection:
• HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
• CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
• Specified from -40 °C to +85 °C and -40 °C to +125 °C

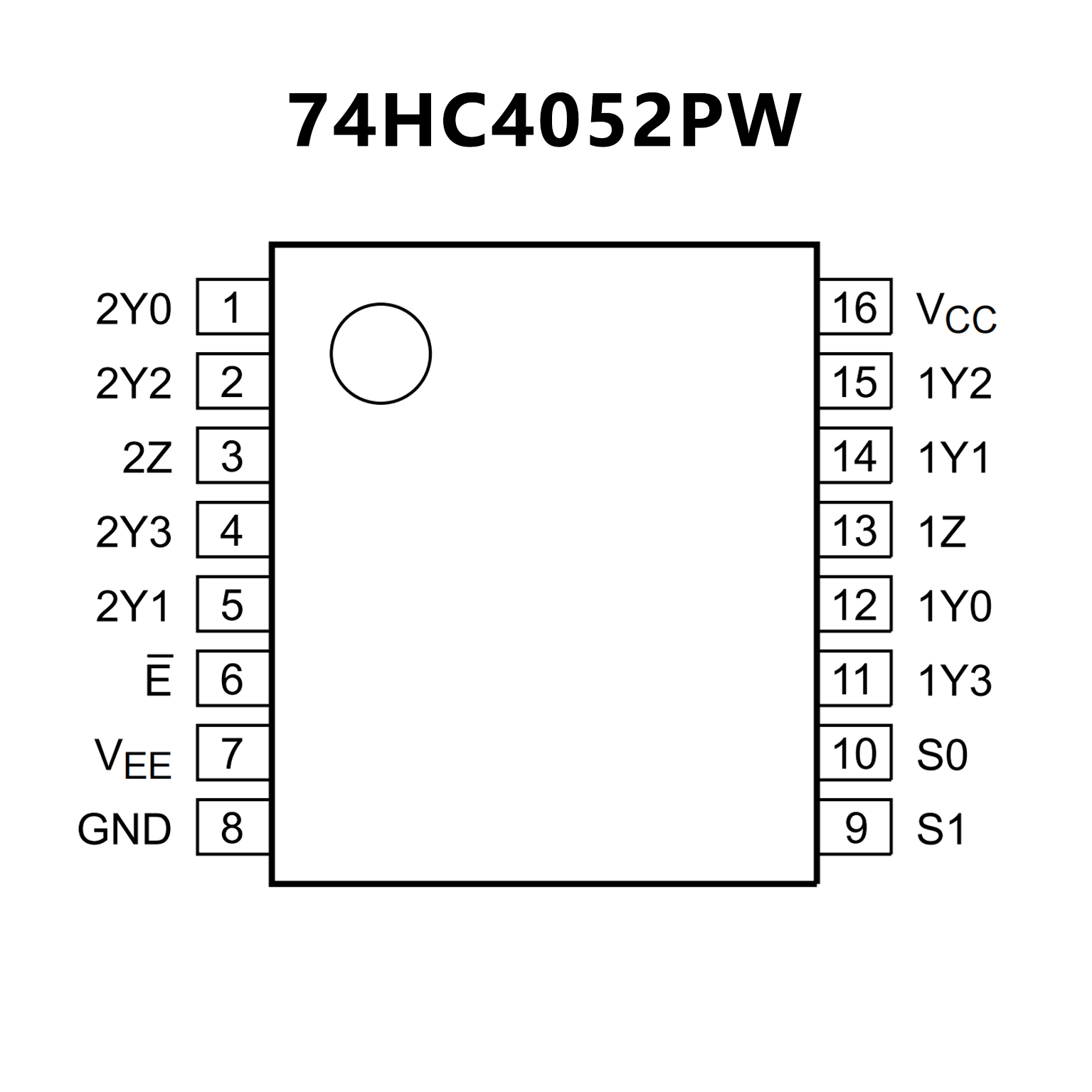

PIN CONFIGUTION
