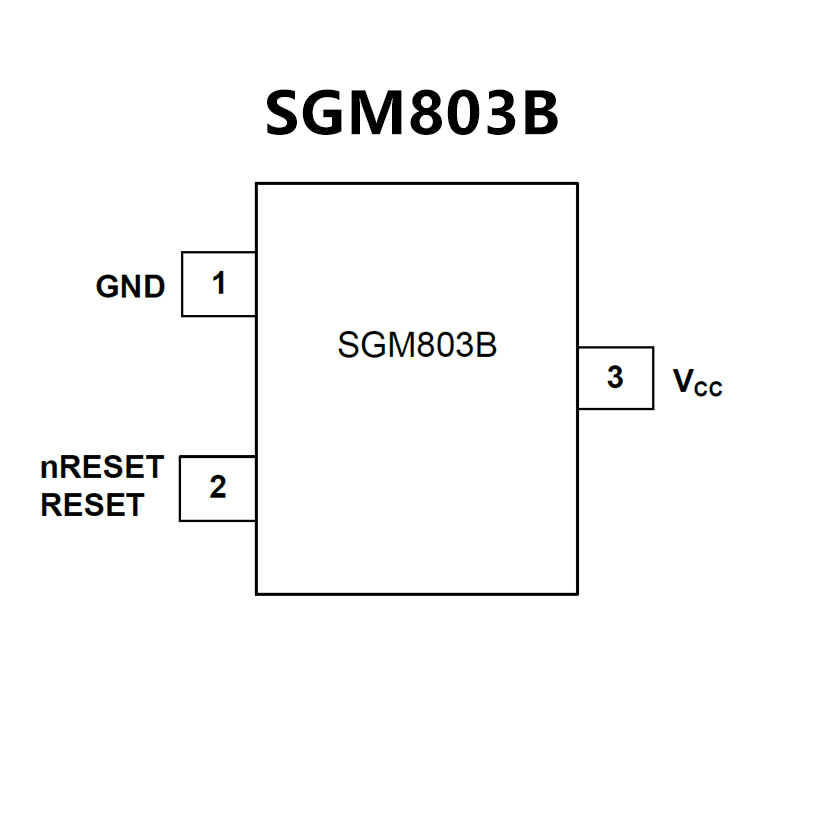

SGM803B-SXN3LG.pdf• Precision Voltage Monitor: 3V, 3.3V and 5V Options
• Superior Upgrade for MAX803/MAX809/MAX810
and ADM803/ADM809/ADM810
• Fully Specified over Temperature
• VCC Transient Immunity
• Low Power Consumption: 300nA (TYP)
• Reset Assertion Down to 1V VCC
• 150ms Power-On Reset (MIN)
Open-Drain nRESET Output (SGM803B)
Push-Pull nRESET Output (SGM809B)
Push-Pull RESET Output (SGM810B)
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging
SGM803B Available in SOT-23-3 and SOT-23
SGM809B Available in SOT-23-3 and SOT-23
SGM810B Available in SOT-23-3 and SOT-23

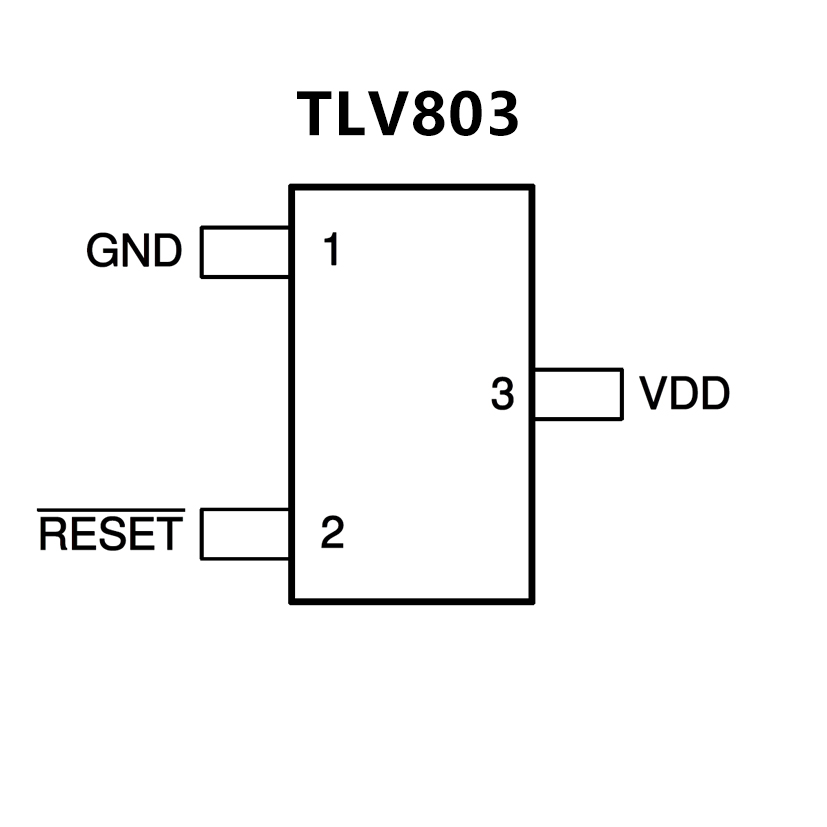

• 3-Pin SOT23 Package
• Supply Current: 9 μA (Typical)
• Precision Supply Voltage Monitor:
2.5 V, 3 V, 3.3 V, 5 V
• Power-On Reset Generator with
Fixed Delay Time of 200 ms
• Pin-for-Pin Compatible with MAX803
• Temperature Range: –40°C to +125°C
• Open-Drain, RESET Outputa
