High-Voltage, High-Current DMOS Arrays, ULN62003 Replace TBD62003.
ULN62003
ULN62003.pdf
ULN62003.pdfFEATURES
• 500mA Rated Drain Current (Single Output)
• High-Voltage Outputs: 50V
• Output Clamp Diodes
• Inputs Compatible with Popular Logic Types
• Relay Driver Applications
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change
control

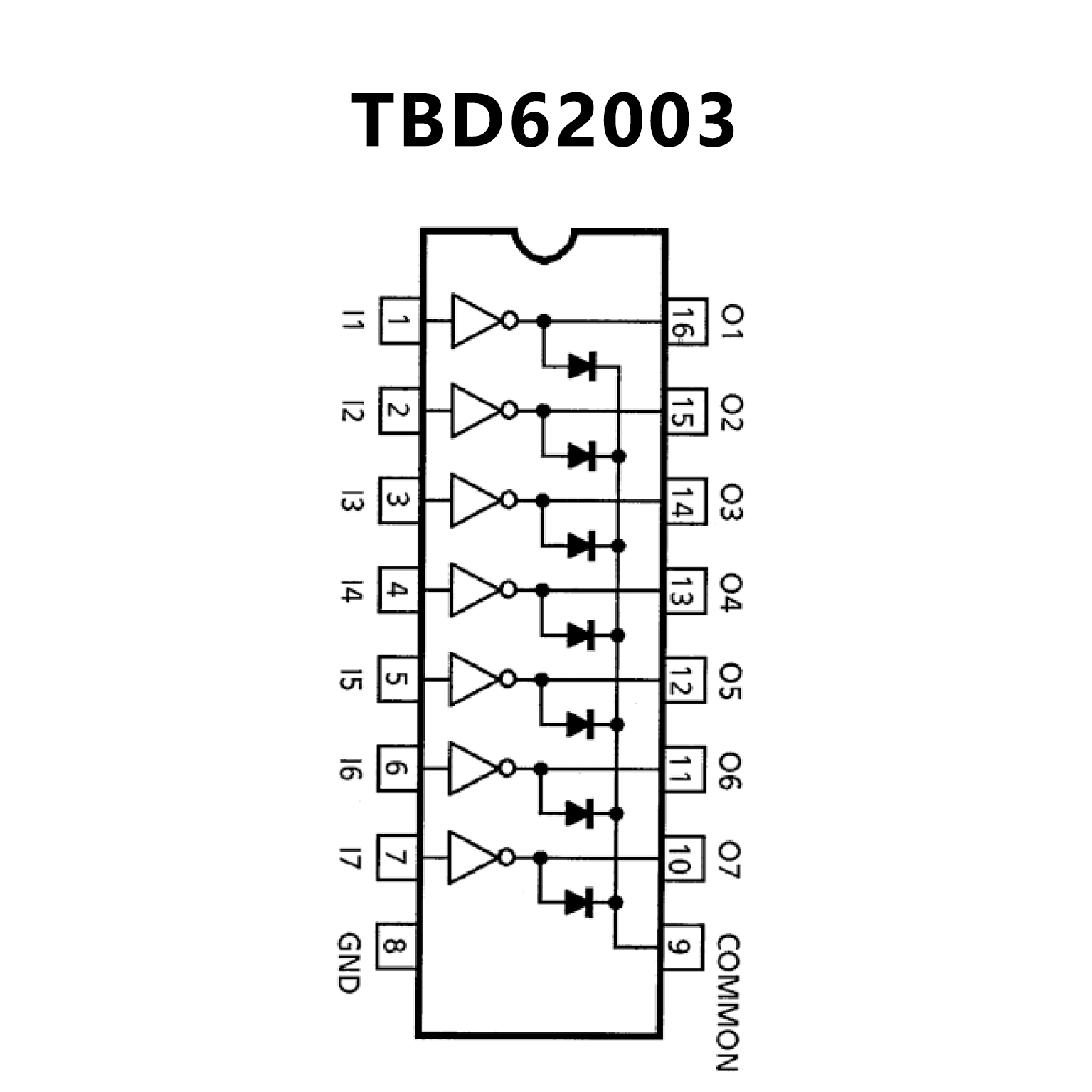

PIN CONFIGUTION
优势替代
FEATURES
• 7 circuits built-in
• High voltage : VOUT = 50 V (MAX)
• High current : IOUT = 500 mA/ch (MAX)
• Input voltage(output on) :
TBD62003A series 2.5 V (MIN)
TBD62004A series 7.0 V (MIN)
• Input voltage(output off) :
TBD62003A series 0.6 V (MAX)
TBD62004A series 1.0 V (MAX)
• Package
: PG type DIP16-P-300-2.54A
FG type SOP16-P-225-1.27
FNG type SSOP16-P-225-0.65B
FWG type P-SOP16-0410-1.27-002

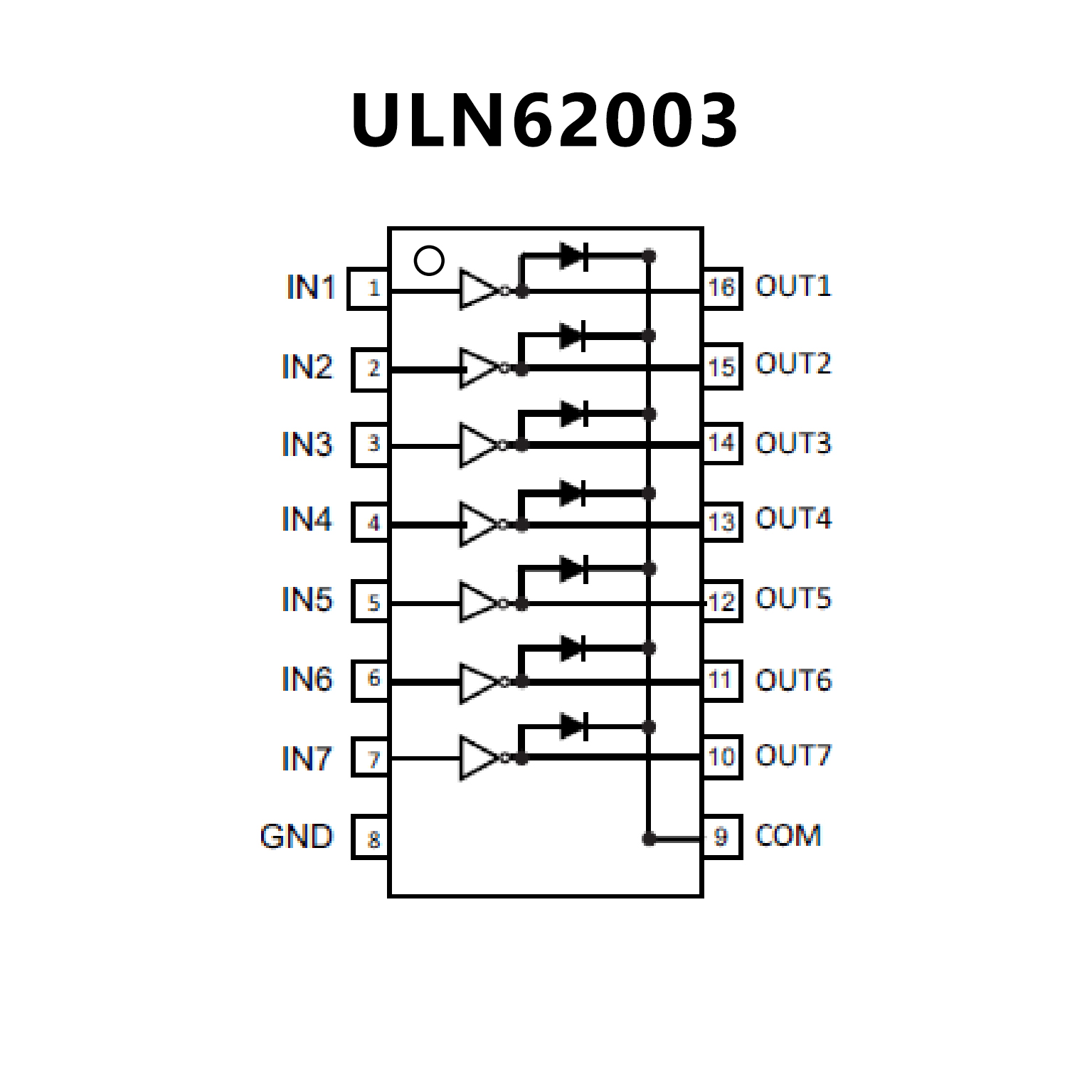

PIN CONFIGUTION
