150mA, High Voltage, Ultra-Low IQ, High PSRR, Low Dropout Regulator.
SGM2232Q
SGM2232Q.pdf
SGM2232Q.pdf
No.14160
FEATURES
• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• Operating Input Voltage Range: 4V to 40V
• Fixed Outputs of 2.5V, 3.3V, 5.0V
• 150mA Output Current
• Low Quiescent Current: 15µA (TYP)
• Low Dropout Voltage:
405mV (TYP) at 100mA, VOUT = 5.0V
• High PSRR: 78dB (TYP) at 1kHz
• Current Limiting and Thermal Protection
• Stable with Low ESR Ceramic Capacitors
• Under-Voltage Lockout (UVLO)
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-223-3 and SOT-23-5 Packages
DESCRIPTION
The SGM2232xQ is a high voltage, ultra-low quiescent current, high PSRR and low dropout voltage linear regulator. It is capable of supplying 150mA output current with typical dropout voltage of 635mV. The operating input voltage range is from 4V to 40V and output voltages are 2.5V, 3.3V and 5.0V.
Other features include under-voltage lockout, short-circuit current limit and thermal shutdown protection. The SGM2232xQ is suitable for various automotive applications.
This device is AEC-Q100 qualified (Automotive Electronics Council (AEC) standard Q100 Grade 1) and it is suitable for automotive applications.
The SGM2232xQ is available in Green SOT-223-3 and SOT-23-5 packages. It operates over an operating temperature range of -40℃ to +125℃.

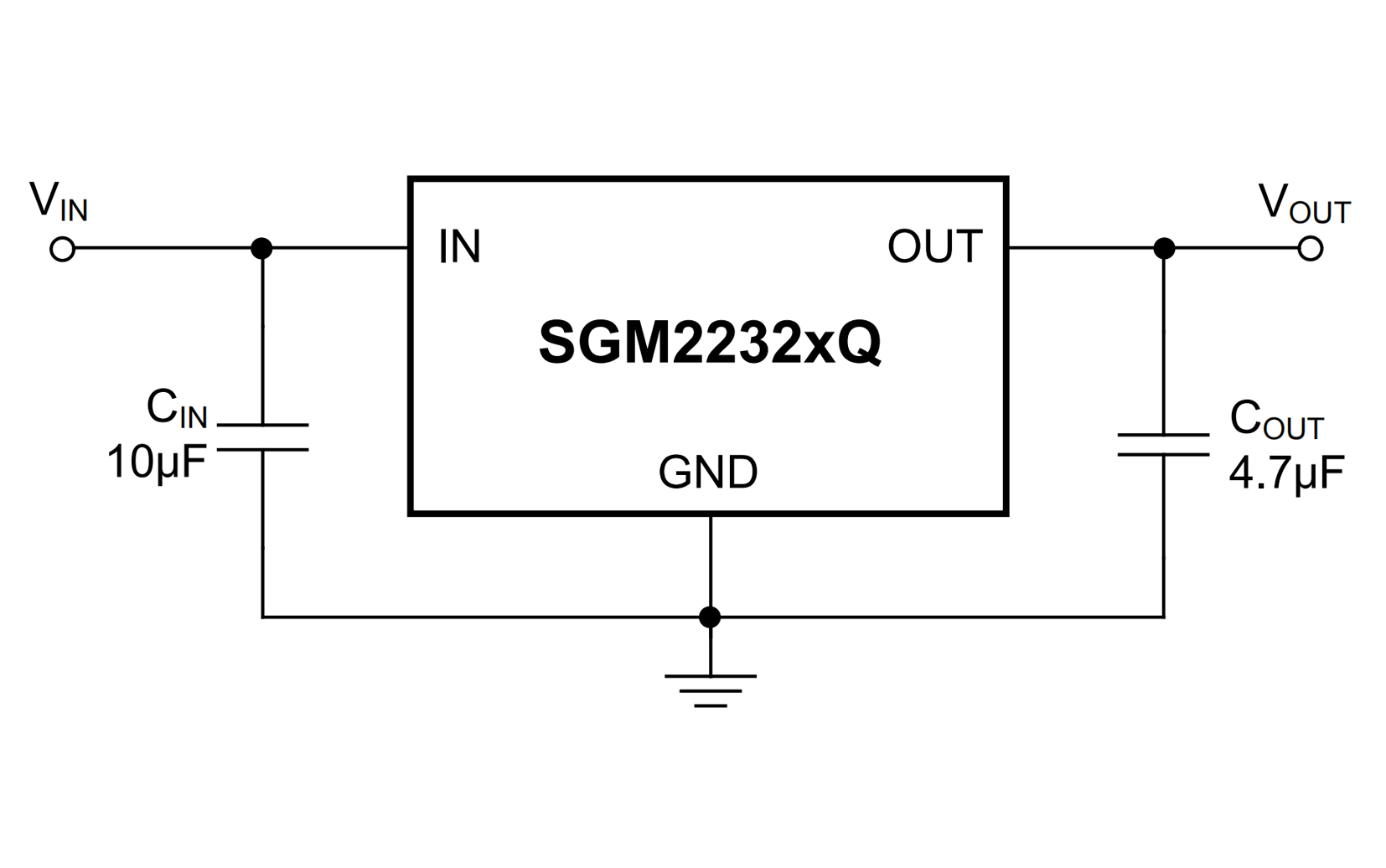

APPLICATION CIRCUIT

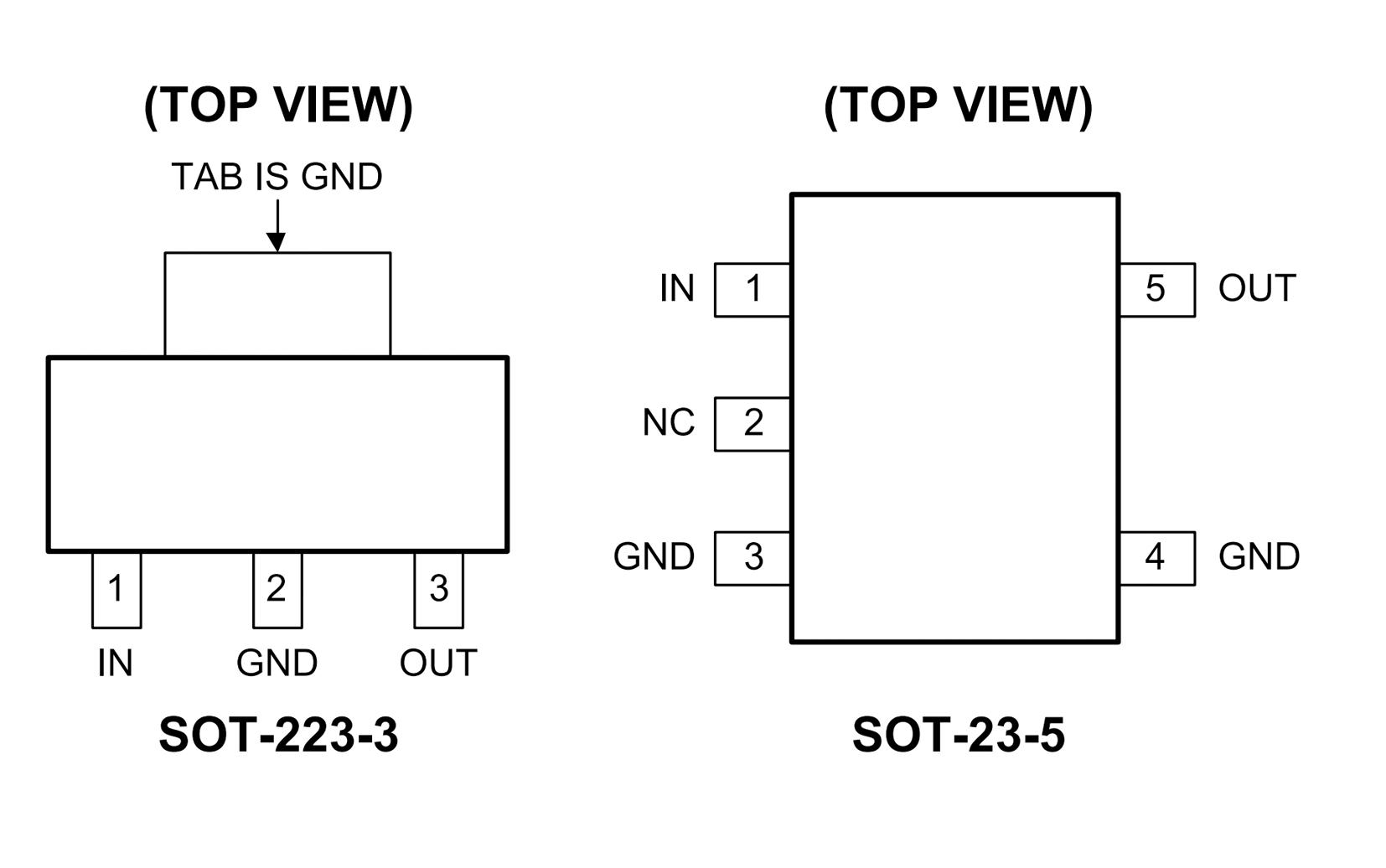

PIN CONFIGUTION
