Automotive, 1A, Low Dropout Positive Fixed and Adjustable Voltage Regulator.
SGM2240Q
SGM2240Q.pdf
SGM2240Q.pdf
No.14164
FEATURES
• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• Operating Input Voltage Range: 2.7V to 20V
• Fixed Output from 1.5V to 12V
• Adjustable Output from 1.25V to 18V
• 1A Output Current
• Output Voltage Accuracy: ±1% at +25℃
• Low Dropout Voltage: 1.25V (TYP) at 1A
• Can Start Up when the Output Voltage is Negative
• Current Limiting and Thermal Protection
• Stable with Small Case Size Ceramic Capacitors
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-223-3 and TO-252-2A Packages
DESCRIPTION
The SGM2240xQ is a low dropout positive voltage regulator. It is capable of supplying 1A output current with typical dropout voltage of 1.25V. The operating input voltage range is from 2.7V to 20V. The fixed output voltage range is from 1.5V to 12V and adjustable output voltage range is from 1.25V to 18V.
Other features include current limit and thermal shutdown protection. The SGM2240xQ is suitable for various automotive applications.
This device is AEC-Q100 qualified (Automotive Electronics Council (AEC) standard Q100 Grade 1) and it is suitable for automotive applications.
The SGM2240xQ is available in Green SOT-223-3 and TO-252-2A packages. It operates over an operating temperature range of -40℃ to +125℃.
APPLICATION CIRCUIT

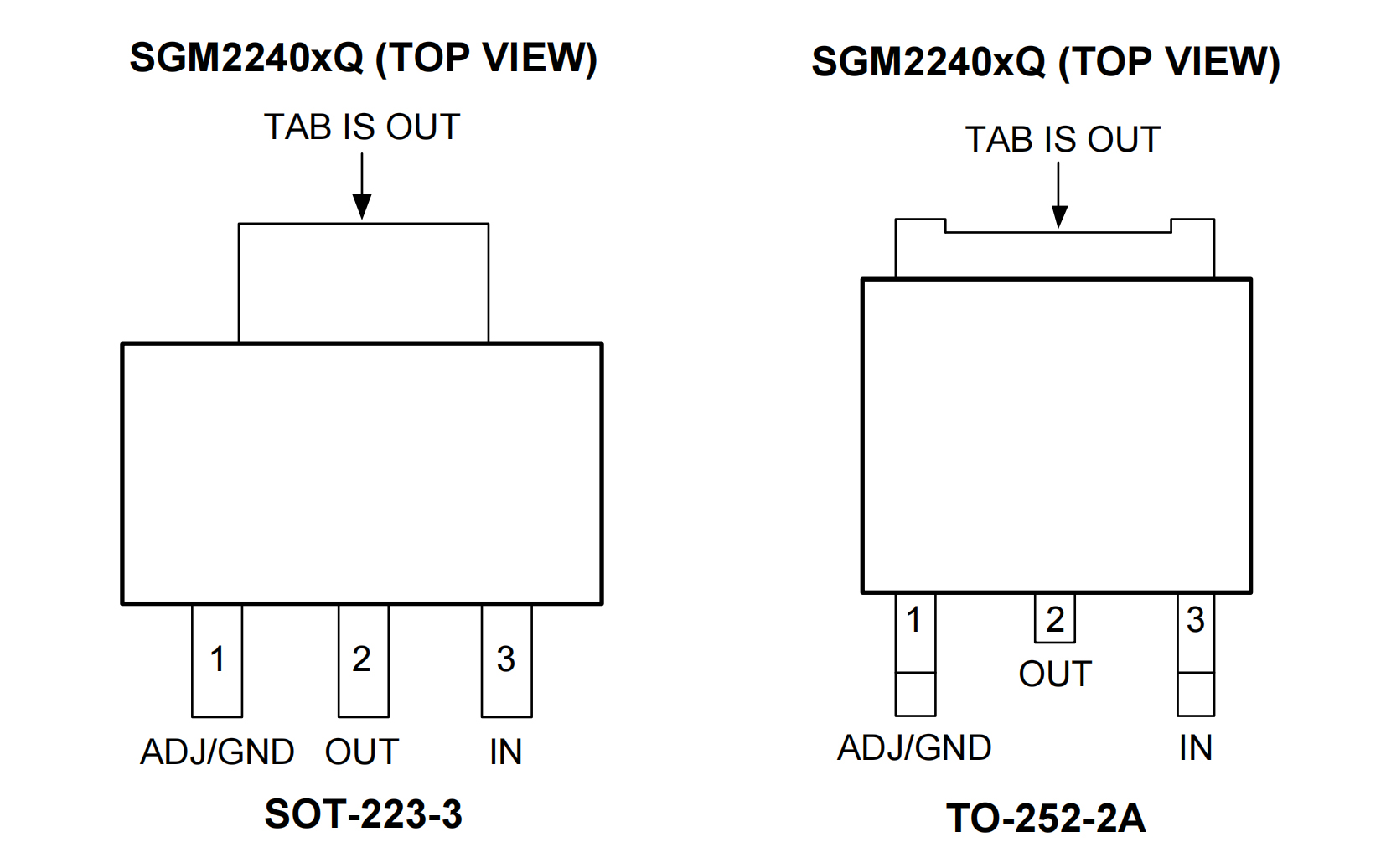

PIN CONFIGUTION
