Automotive, 40V, 300mA, Low Quiescent Current and Low Dropout Voltage Linear Regulator.
SGM2241Q
SGM2241Q.pdf
SGM2241Q.pdf
No.14165
FEATURES
• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• Operating Input Voltage Range: 2.5V to 40V
• Enable Pin Accept Voltages Higher than the
Supply Voltage and up to 40V
• Fixed Output from 1.8V to 12V
• Adjustable Output from 1.215V to 35V
• 300mA Output Current
• Output Voltage Accuracy: ±1% at +25℃
• Low Quiescent Current: 3.2μA (TYP)
• Low Dropout Voltage:
900mV (TYP) at 300mA, VOUT = 5.0V
• Current Limiting and Thermal Protection
• With Output Automatic Discharge
• Stable with Small Case Size Ceramic Capacitors
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green MSOP-8 (Exposed Pad) Package
DESCRIPTION
The SGM2241xQ is a high voltage, low quiescent current and low dropout voltage linear regulator. It is capable of supplying 300mA output current with typical dropout voltage of 900mV. The operating input voltage range is from 2.5V to 40V and output voltage range is from 1.215V to 35V.
Other features include current limit and thermal shutdown protection. The SGM2241xQ is suitable for various automotive applications.
This device is AEC-Q100 qualified (Automotive Electronics Council (AEC) standard Q100 Grade 1) and it is suitable for automotive applications.
The SGM2241xQ is available in a Green MSOP-8 (Exposed Pad) package. It operates over an operating temperature range of -40℃ to +125℃.

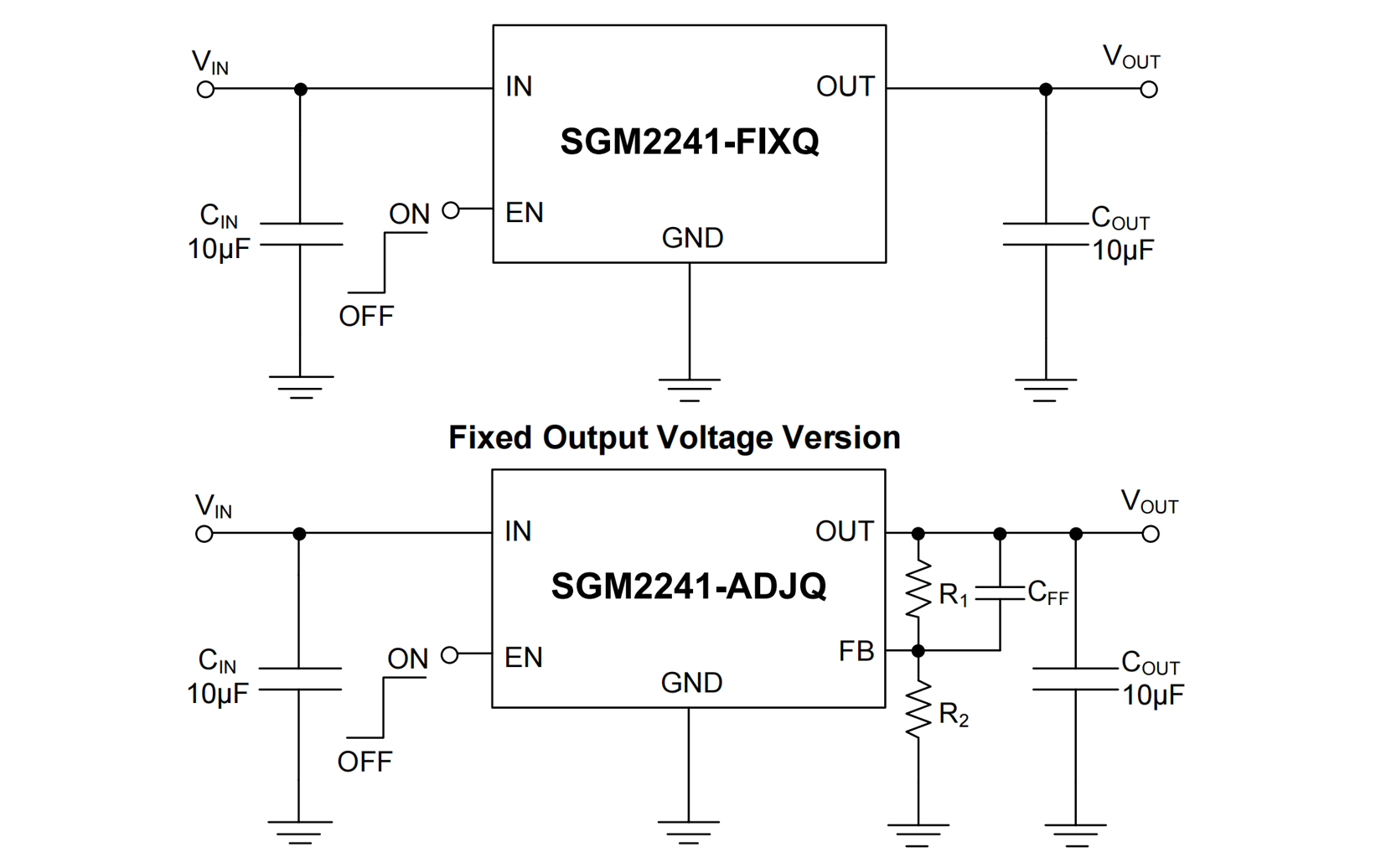

APPLICATION CIRCUIT

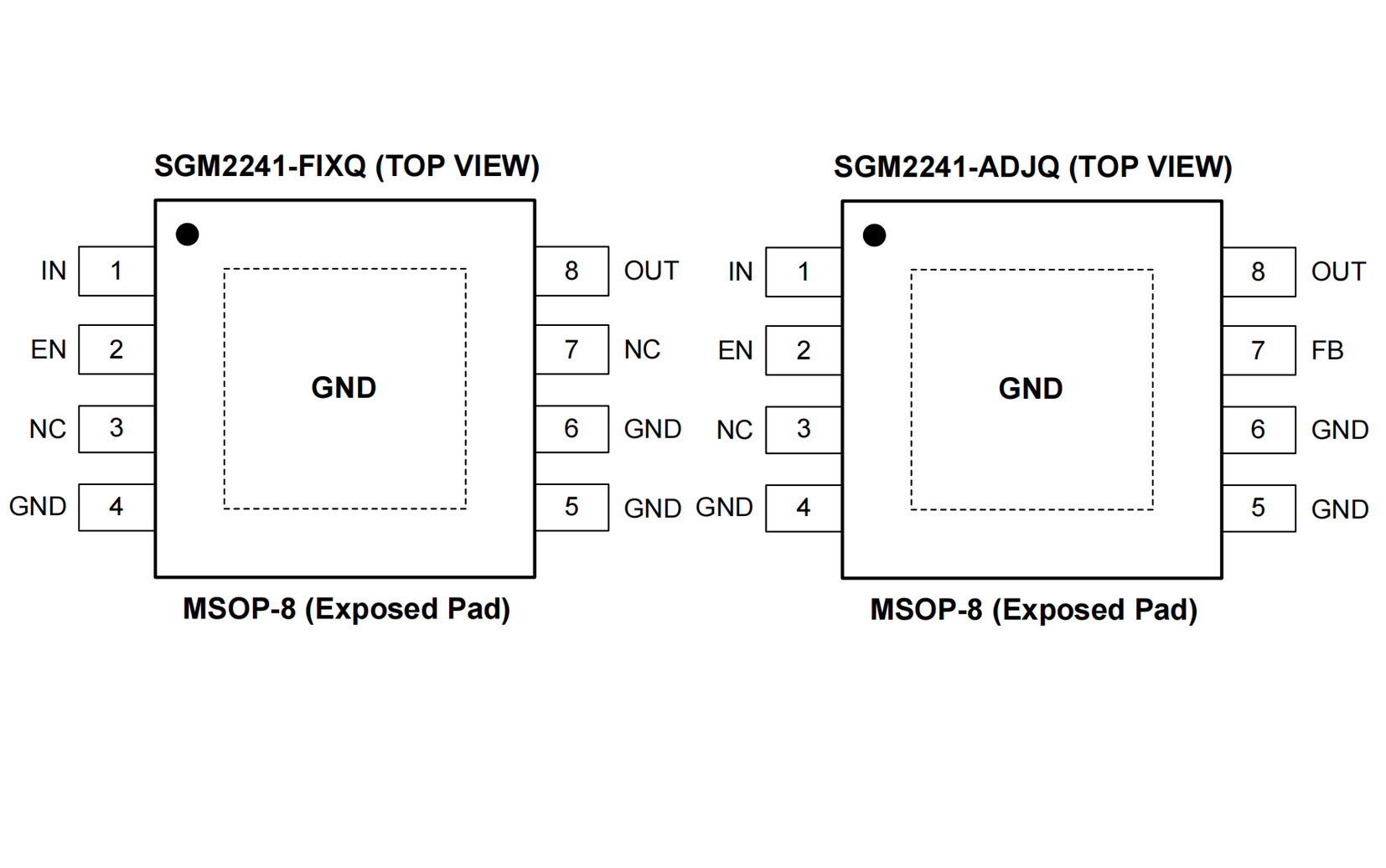

PIN CONFIGUTION
