36V Input Voltage Detector with Delay Function for Automotive Applications.
SGM880Q
SGM880Q.pdf
SGM880Q.pdf
No.14155
FEATURES
• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• Operating Voltage Range:
SGM880A-xQ: 1.2V to 36V
SGM880E-xQ: 2.2V to 36V
• Low Supply Current
SGM880A-xQ: 3.0μA (TYP)
SGM880E-xQ: 2.3μA (TYP)
• Detector Threshold Range: 2.3V to 5.0V (0.1V
Increments), 5.0V to 12.0V (0.25V Increments)
• Detector Threshold Accuracy: ±0.7% at +25℃
• Voltage Detection Type:
SGM880A-xQ: with CD Pin Type
SGM880E-xQ: with SENSE Pin Type
• Detector Threshold Temperature Coefficient:
40ppm/℃
• Release Output Delay Time (SGM880A-xQ Only)
90ms at CD = 0.01μF
±39% Accuracy
• Open-Drain Output
• Available in a Green SOT-23-5 Package
DESCRIPTION
The SGM880xQ is a high accuracy voltage detector with very low supply current. It can be used under CMOS-based 36V input conditions and the absolute maximum voltage of supply voltage can come up to 45V, which can prevent circuit breakdown caused by transient over-voltage pulses. This device has a simple structure with a voltage reference, a comparator with hysteresis, a series of resistor divider and an N-channel output transistor.
The SGM880xQ has very low supply current. It can monitor voltage rails ranging from 2.3V to 12V with ±0.7% accuracy. The output pin (DOUT) is an N-channel active-low open-drain output.
The device is AEC-Q100 qualified (Automotive Electronics Council (AEC) standard Q100 Grade 1) and it is suitable for automotive applications.
The SGM880xQ is available in a Green SOT-23-5 package. Use of this package achieves high-density mounting on boards.

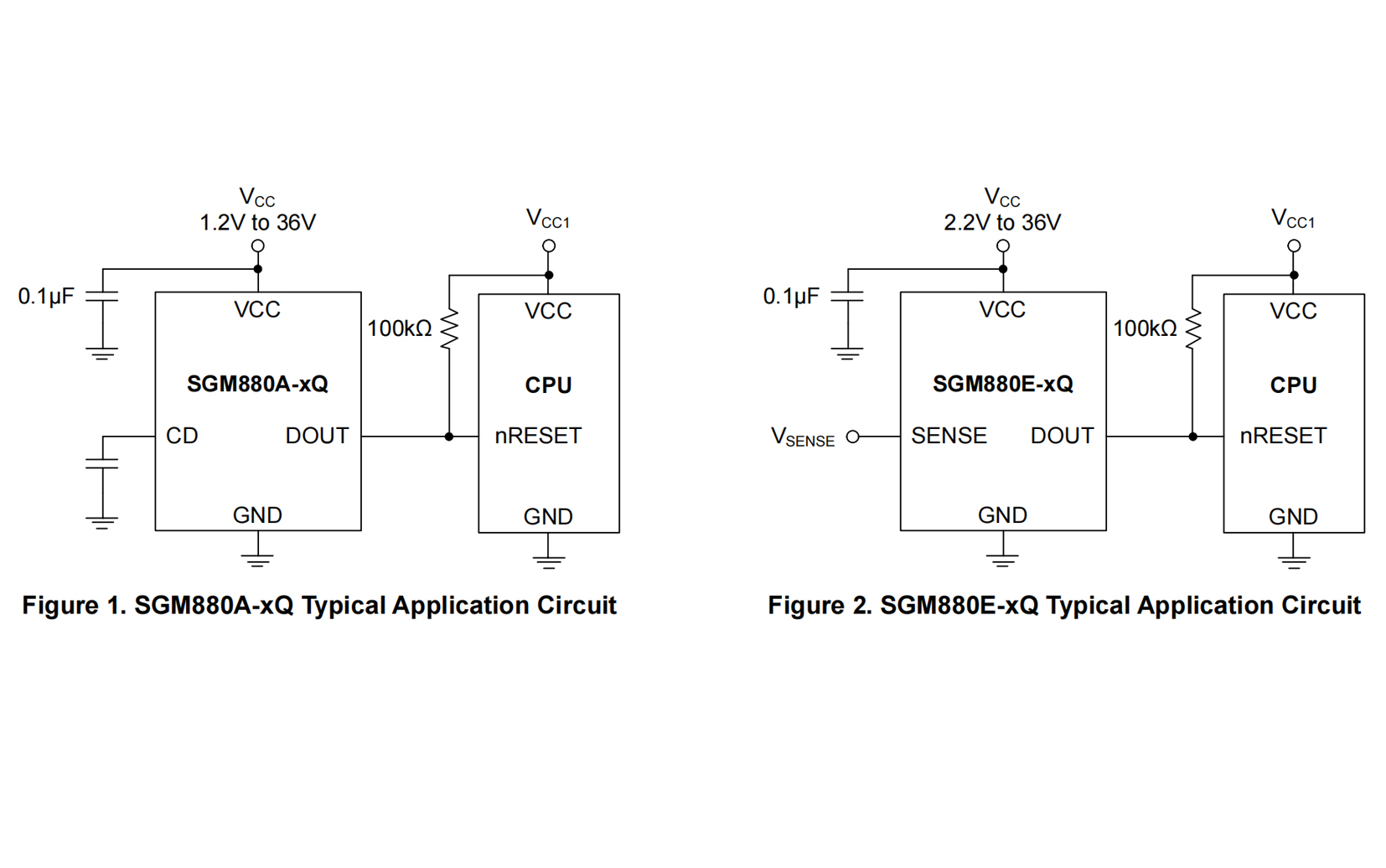

APPLICATION CIRCUIT

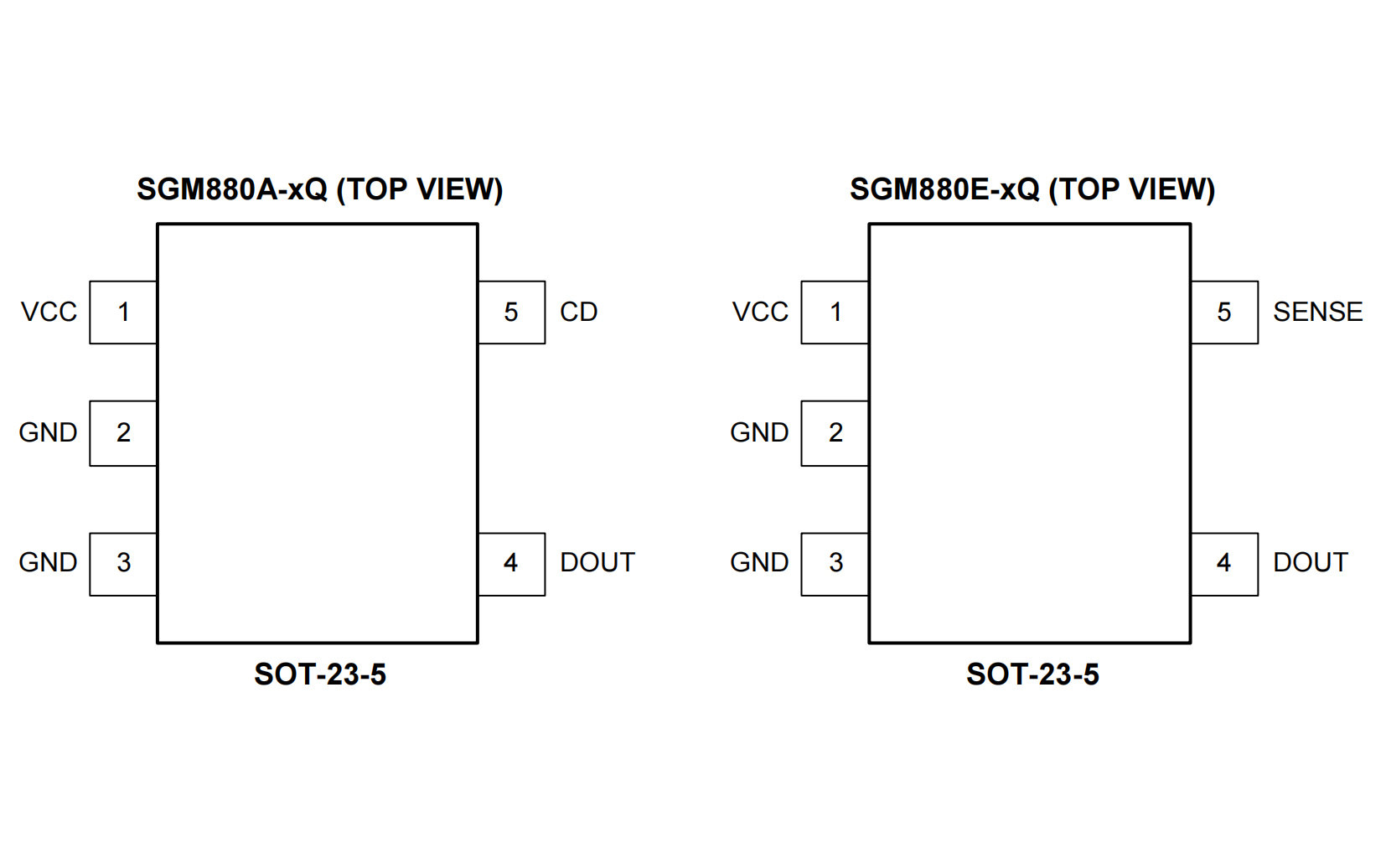

PIN CONFIGUTION
