Current Limited IC, VIN 2.4V~5.5V, ILIM 1.5A, Active High, SOT23-5, ACP12522 P2P FP6861C.
ACP12522
ACP12522.pdf
ACP12522.pdfFEATURES
• Input Voltage Range: 2.5V to 5.5V
• 2.1A Accurate Current Limiting Threshold
• Fast Transient Response
• Max 35μA Quiescent Current
• Low 90mΩ Typical RDS(ON)
• Reverse Current Blocking
• Thermal Shutdown and Over-Current Protection
• Fault Report with 12ms Typical Blanking Time
• -40 to 85°C Operation Temperature Range

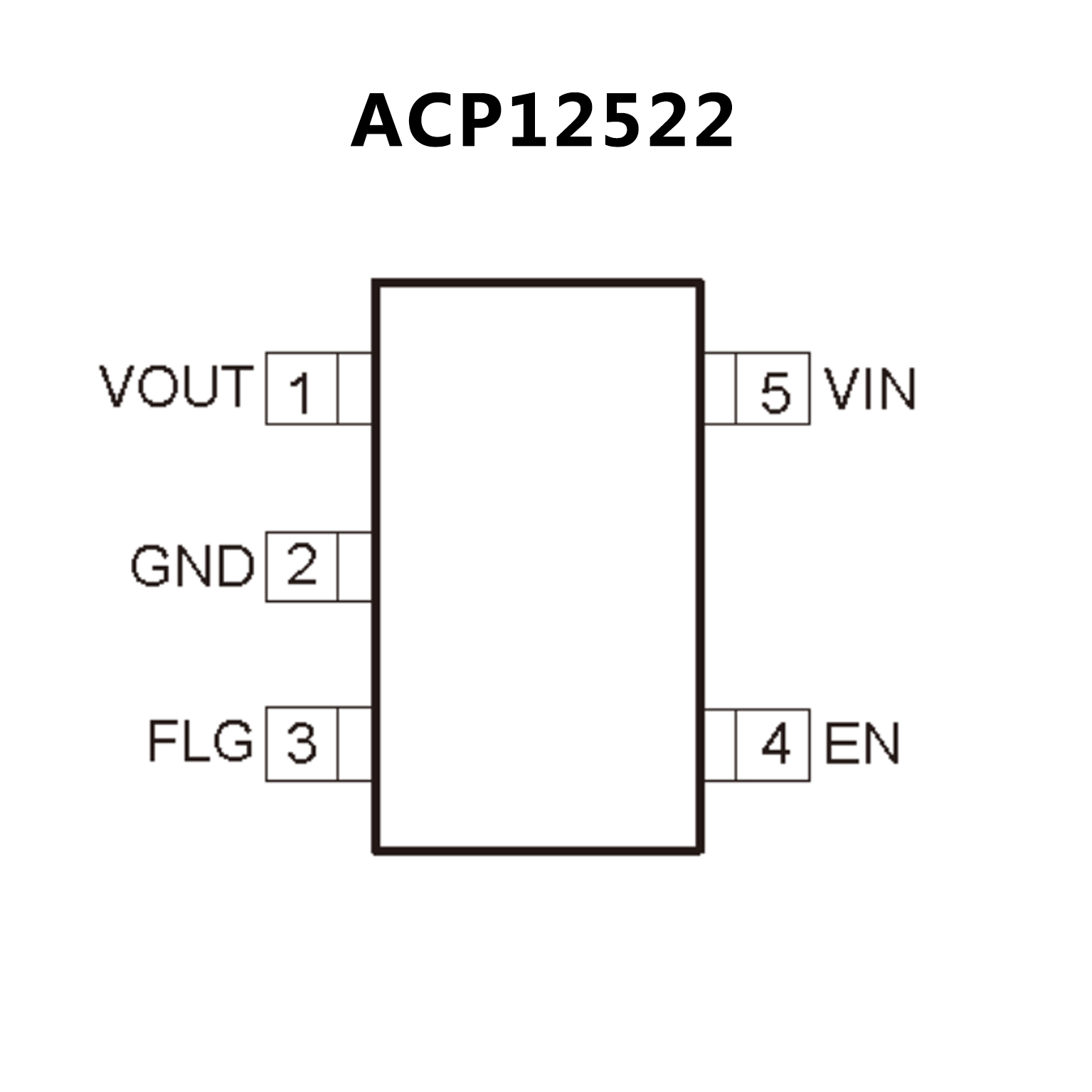

PIN CONFIGUTION
优势替代
FEATURES
• Compliant to USB Specifications
• Built-In Low RDS(ON) N-Channel MOSFET
• Output can be Forced Higher than Input (Off-State)
• Wide Input Voltage Ranges: 2.7V to 5.5V
• Open-Drain Fault Flag Output
• Hot Plug-In Application (Soft-Start)
• 2.2V Typical Under-Voltage Lockout (UVLO)
• Current Limit Protection
• Thermal Shutdown Protection
PIN CONFIGUTION
