4~18V, 2A, 750KHz, VFB0.8V, SOT23-6, ACP2829 Replace JW5033.
ACP2829
ACP2829.pdf
ACP2829.pdfFEATURES
• VIN : 4.2V to 18V
• Output Voltage (VOUT) : 0.8V to 7V
• 2A Continuous Output Current
• 0.8V ± 1% Reference Voltage
• 150μA Low Quiescent Current
• 750KHz Switching Frequency (VIN = 12V, VOUT= 5V)
• Typically 85% Efficiency at 5mA Light Load
• Proprietary Gate Driver Design for Best EMI Reduction
• Under Voltage Lockout (UVLO)
• Cycle-by-Cycle Valley Current Limit
• Thermal Shutdown

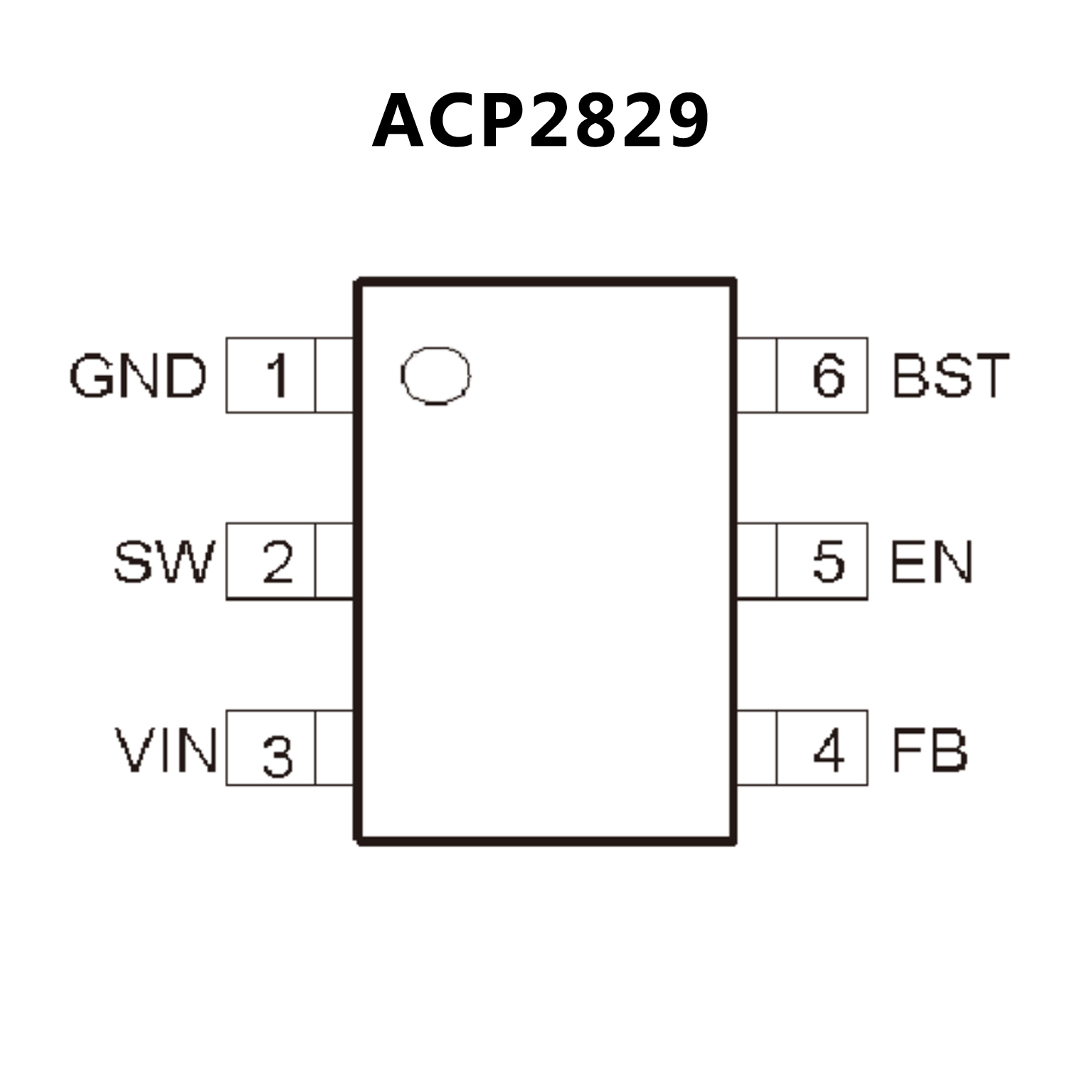

PIN CONFIGUTION
优势替代
FEATURES
• 3.7V to 18V operating input range 2A output current
• Up to 95% efficiency
• High efficiency at light load
• Fixed 800kHz Switching frequency
• Input under voltage lockout
• Start-up current run-away protection
• Over current protection and Hiccup
• Thermal protection
• Available in TSOT23-6 package

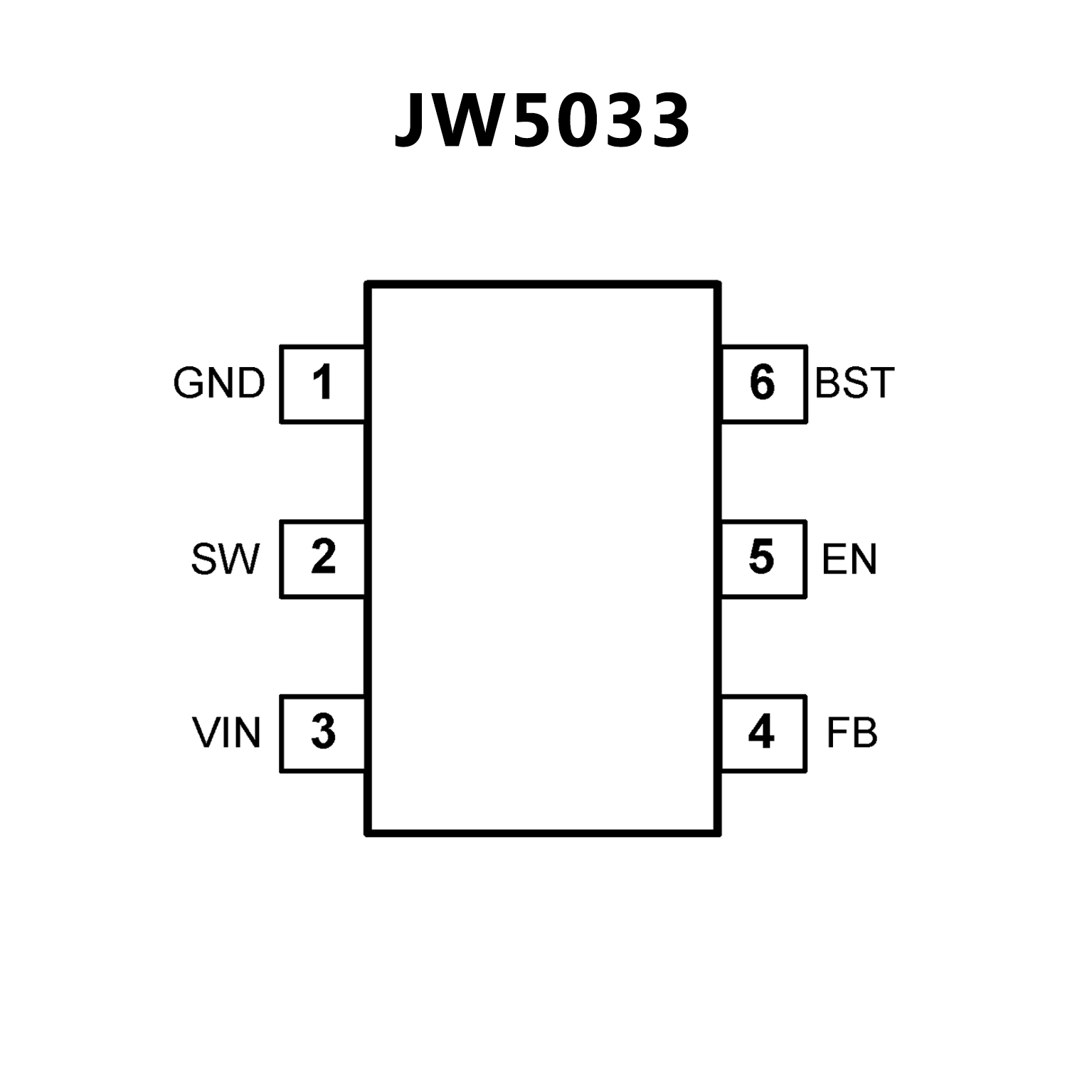

PIN CONFIGUTION
