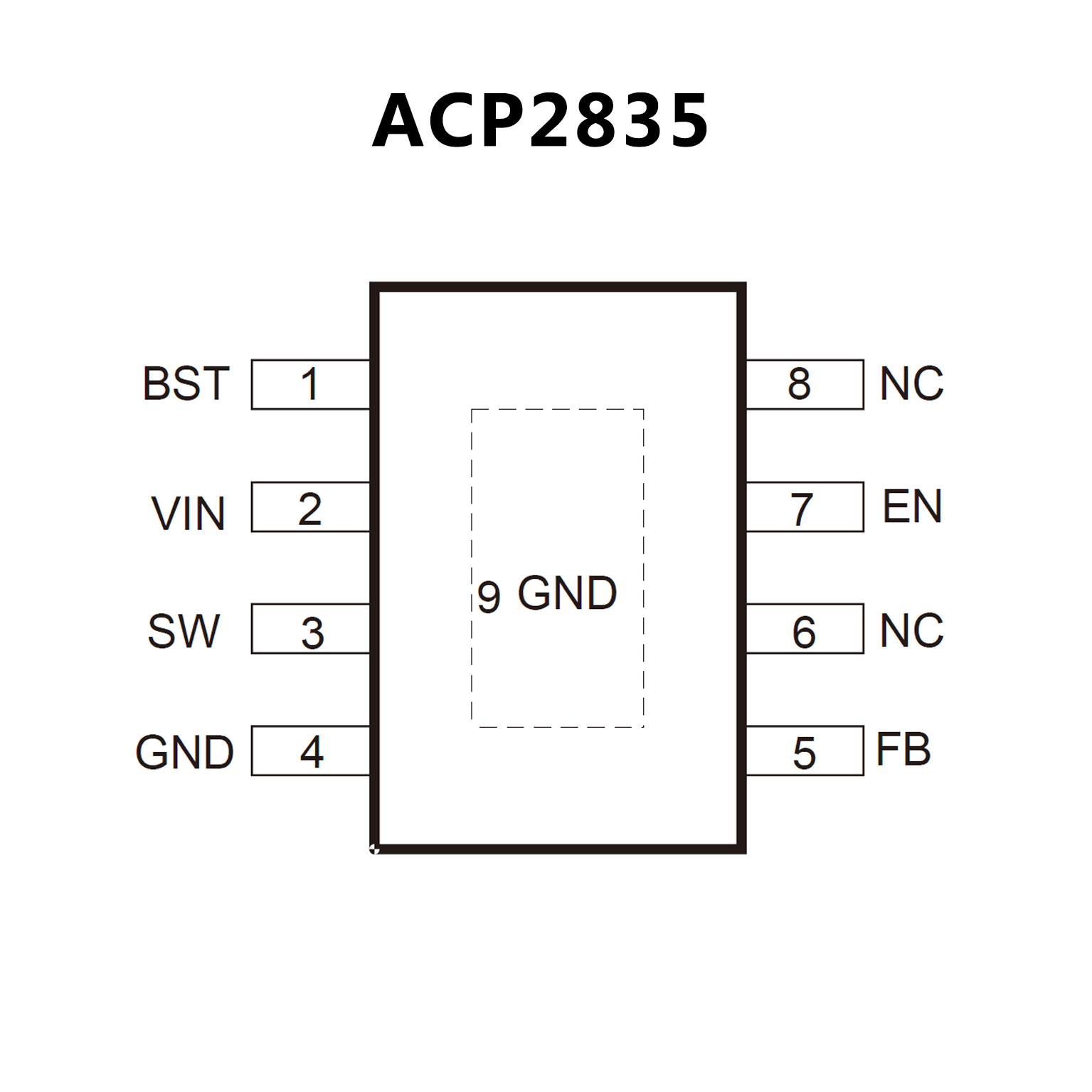

ACP2835.pdf• Wide 6.0V~30V Input Voltage Range
• Continuous 3A Output Current Capability
• Typical 500kHz Fixed Switching Frequency
• 0.925V Voltage Reference with ±1% Accuracy
• Typical 100μA Low Quiescent Current
• Typical 2μA Shutdown Current
• Light-Load High Efficiency
• Up to 95% High Efficiency
• Integrated 40V Power MOSFET Switches
• Internal 1.5-ms Soft-Start Function
• Hic-cup Mode Output Short Circuit Protection
• Input Under-Voltage Lockout
• Input 30V Over-Voltage protection
• Output Over Current Protection
• Output Short Circuit Protection
• Over Temperature Protection
• General SOP8-EP package

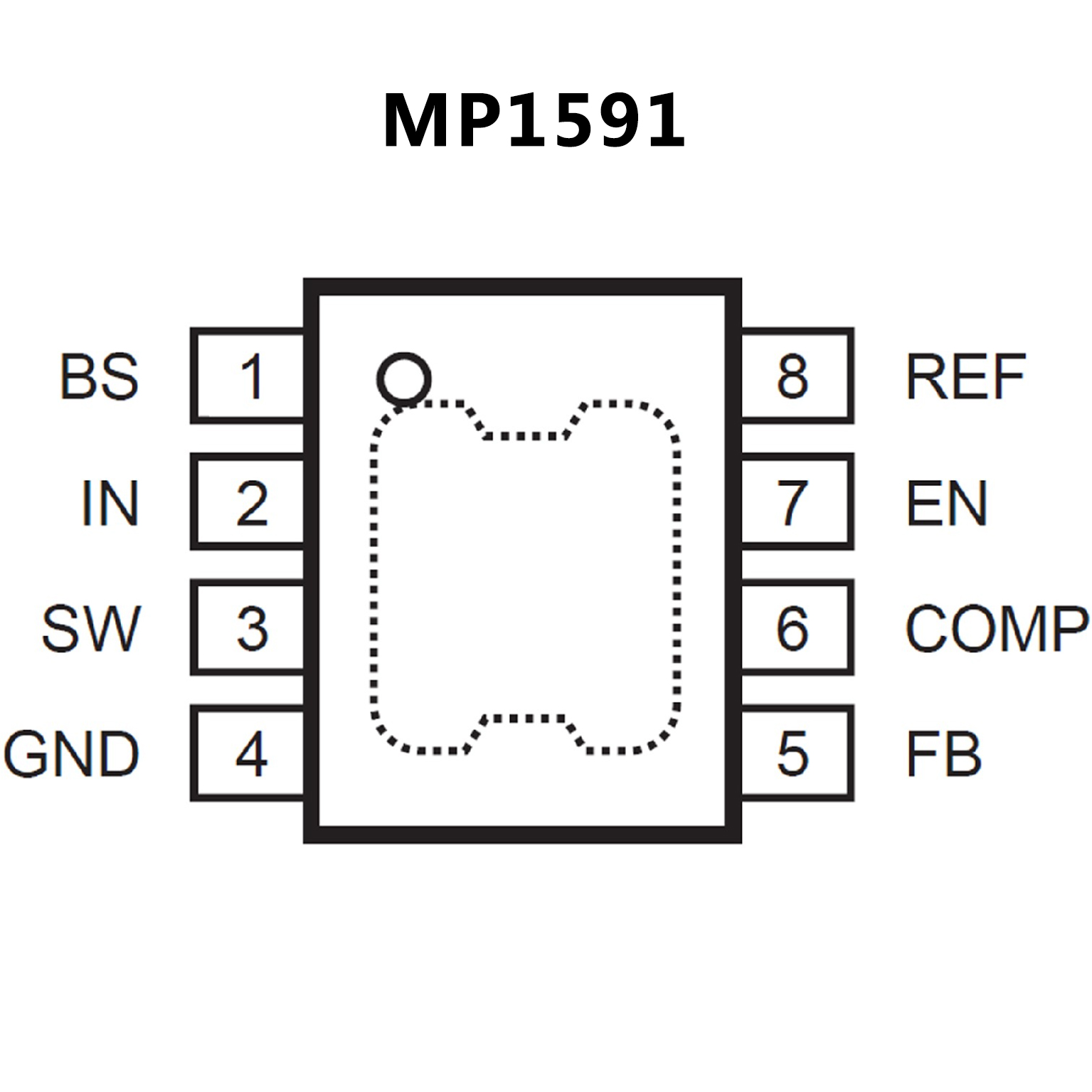

• Wide 6.5V to 32V Input Operating Range
• 34V Absolute Maximum Input
• 2A Output Current
• 120mΩ Internal Power MOSFET Switch
• Stable with Low ESR Output Ceramic Capacitors
• Up to 95% Efficiency
• 20µA Shutdown Mode
• Fixed 330KHz Frequency
• Thermal Shutdown
• Cycle-by-Cycle Over Current Protection
• Output Adjustable From 1.23V to 21V
• Under Voltage Lockout
• Reference Voltage Output
• Available in 8-Pin SOIC Packages
