9V to 30V Input LED Backlight Controller, EUP2950 Replace BIT3267.
EUP2950
EUP2950.pdf
EUP2950.pdfFEATURES
• 9V to 30V Input Voltage Range
• Current Mode PWM controller with good dynamic
• Internal Soft-Start
• External PWM Dimming Control
• Over Voltage Protection
• Over Current Protection
• Under Voltage Lockout
• Thermal Shutdown Protection
• LED cathode short to GND Protection
• LED Open Protection
• SOP-8 Package
• RoHS Compliant and 100% Lead (Pb)-Free

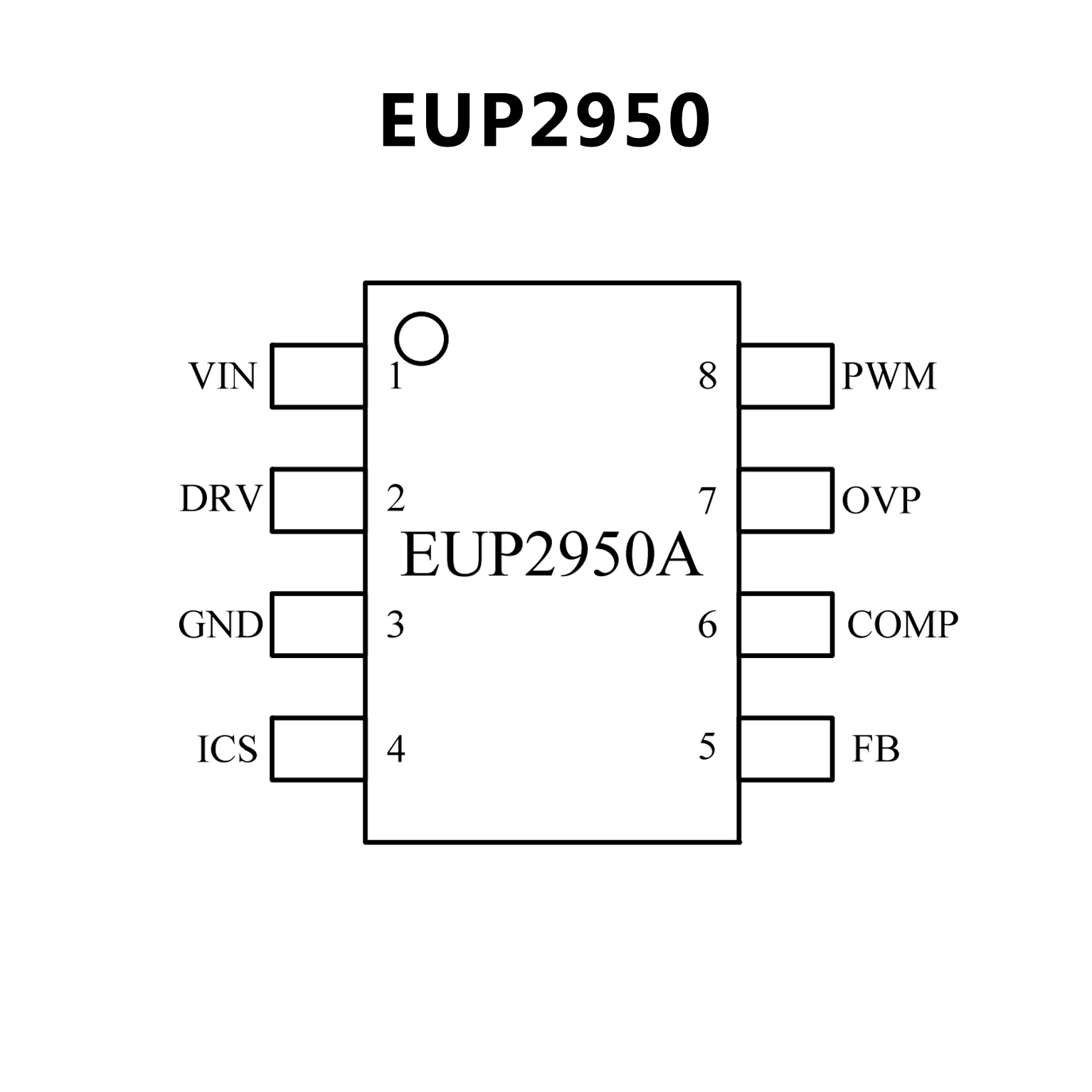

PIN CONFIGUTION
优势替代
FEATURES
• Current Mode PWM Controller
• 8V ~ 28V operation voltage
• Local dimming function
• Internal minimum off time
• Over current protection, OCP
• Over voltage protection, OVP
• Load short protection, LSP
• Frequency selection
• Internal Soft-Start
• Over temperature protection, OTP
• Internal Under Voltage Lock Out, UVLO
• Totem Pole Output
• SOP-8 package

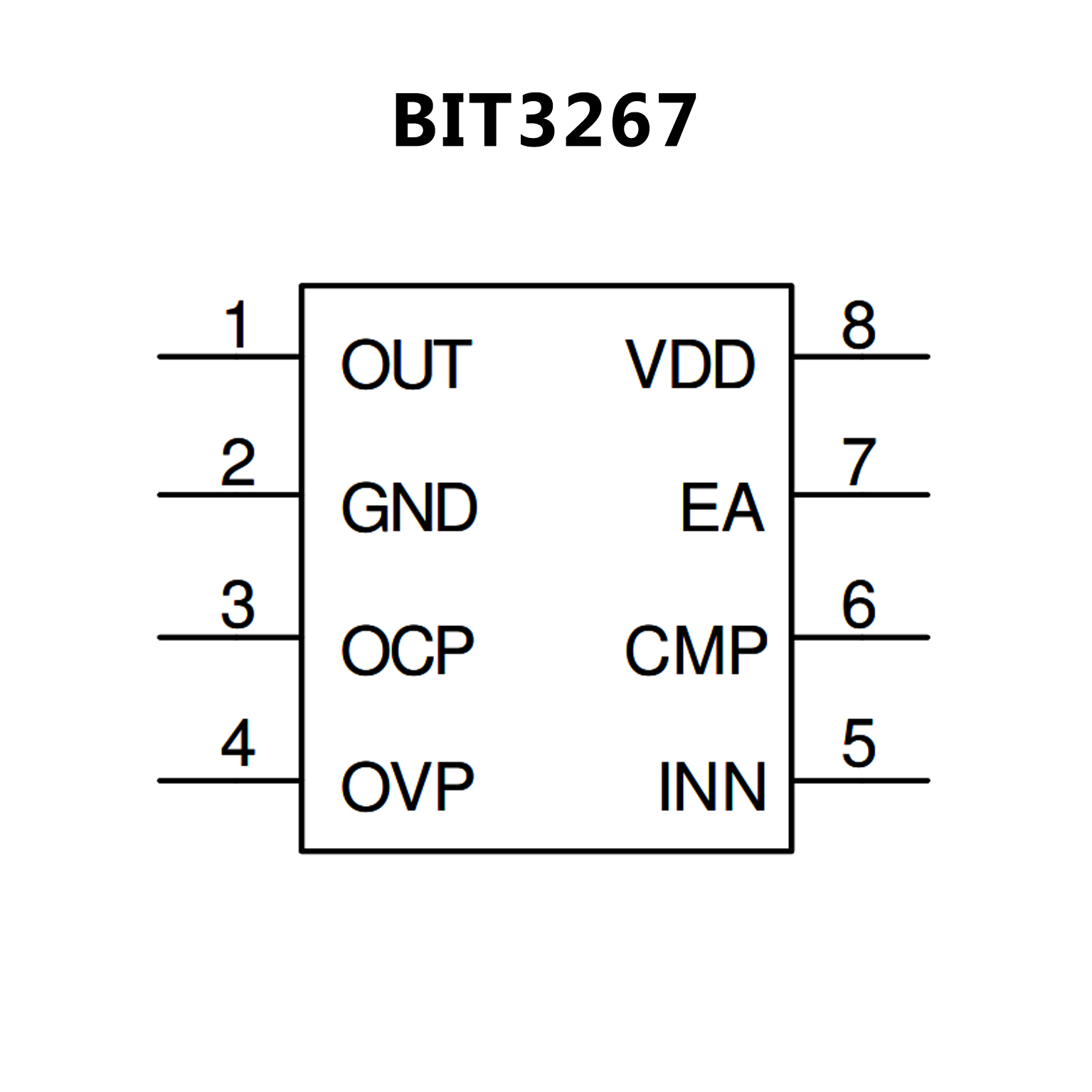

PIN CONFIGUTION
