Dual supply translating transceiver; open drain; auto direction sensing, LXS0102 Replace NTS0102.
LXS0102
LXS0102.pdf
LXS0102.pdfFEATURES
• High-Speed with 24Mb/s Data Rate for push-pull
applications
• High-Speed with 2Mb/s Data Rate for open-drain
applications
• 1.65V to 3.6V on A Port and 2.3V to 5.5V on B Port
• VCCA must be less than or equal to VCCB
• No Direction-Control Signal Needed
• Low Bit-to-Bit Skew
• Non-preferential Power-up Sequencing
• ESD protection exceeds JESD22-Al14
A Port: 2000V HBM
B Port:5KV HBM-V,SS,HK
7KVHBM-GBA only
• Integrated 1OkO Pull-up Resistors
• Packaging (Pb-free & Green):
8-DFN1xl.4 (HK)
8-VSSOP (V)
8-SSOP (SS)
8-WLCSP (GBA)
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change
control

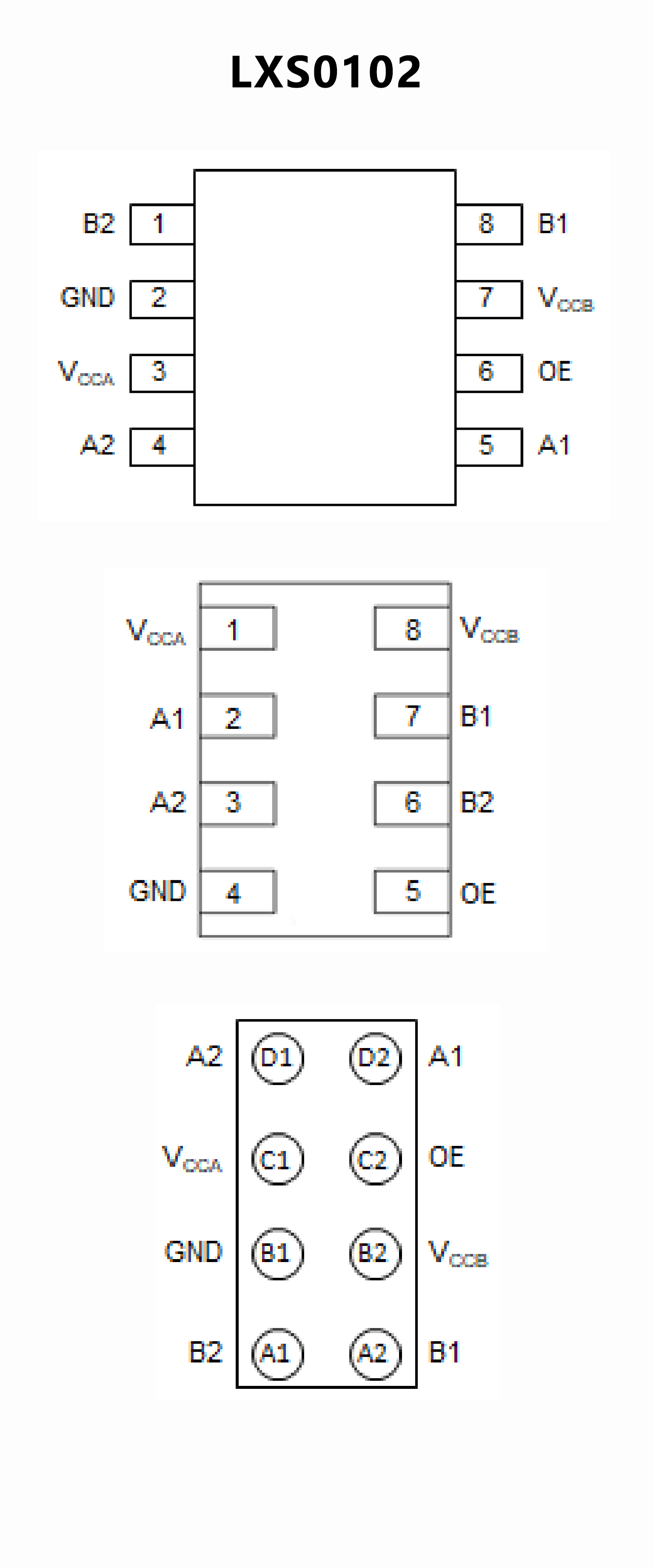

PIN CONFIGUTION
优势替代
FEATURES
• Wide supply voltage range:
• VCC(A): 1.65 V to 3.6 V and VCC(B): 2.3 V to 5.5 V
• Maximum data rates:
• Push-pull: 50 Mbps
• IOFF circuitry provides partial Power-down mode operation
• Inputs accept voltages up to 5.5 V
• ESD protection:
• HBM JESD22-A114E Class 2 exceeds 2500 V for A port
• HBM JESD22-A114E Class 3B exceeds 8000 V for B port
• MM JESD22-A115-A exceeds 200 V
• CDM JESD22-C101E exceeds 1500 V
• Latch-up performance exceeds 100mA per JESD 78B Class II
• Multiple package options
• Specified from 40 C to +85 C and 40 C to +125 C

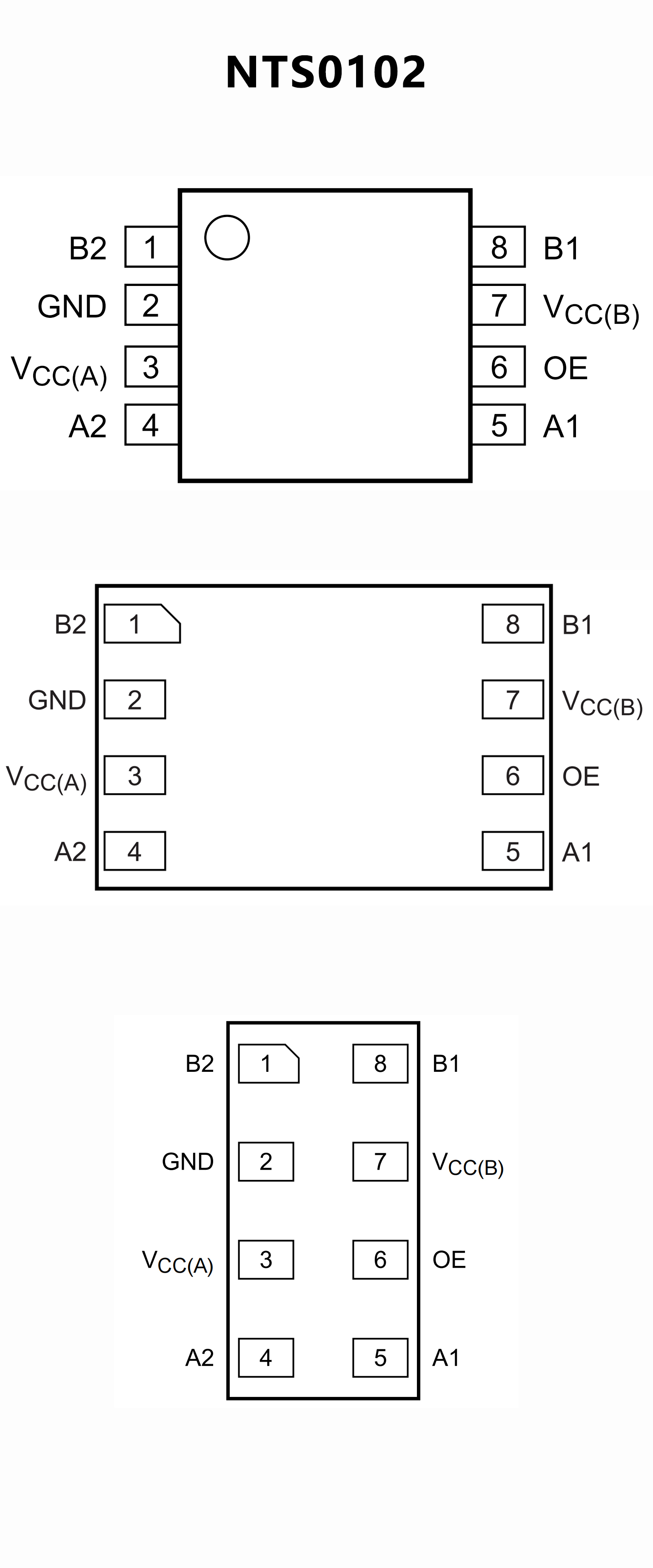

PIN CONFIGUTION
