• High-Speed with 24 Mb/s Data Rate for push-pull

  applications

• High-Speed with 2 Mb/s Data Rate for open-drain

  applications

• 1.65V to 3.6V on A Port and 2.3V to 5.5V on B Port

• V_CCA must beless than or equal to V_CCB

• No Direction-Control Signal Needed

• Low Bit-to-Bit Skew

• Non-preferential Power-up Sequencing

• ESD protection exceeds JESD22-Al14

  APort: 2500V HBM

  BPort:2500V HBM

•Integrated 10 kO Pull-Up Resistors

•Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• For automotive applications requiring specific change

  control

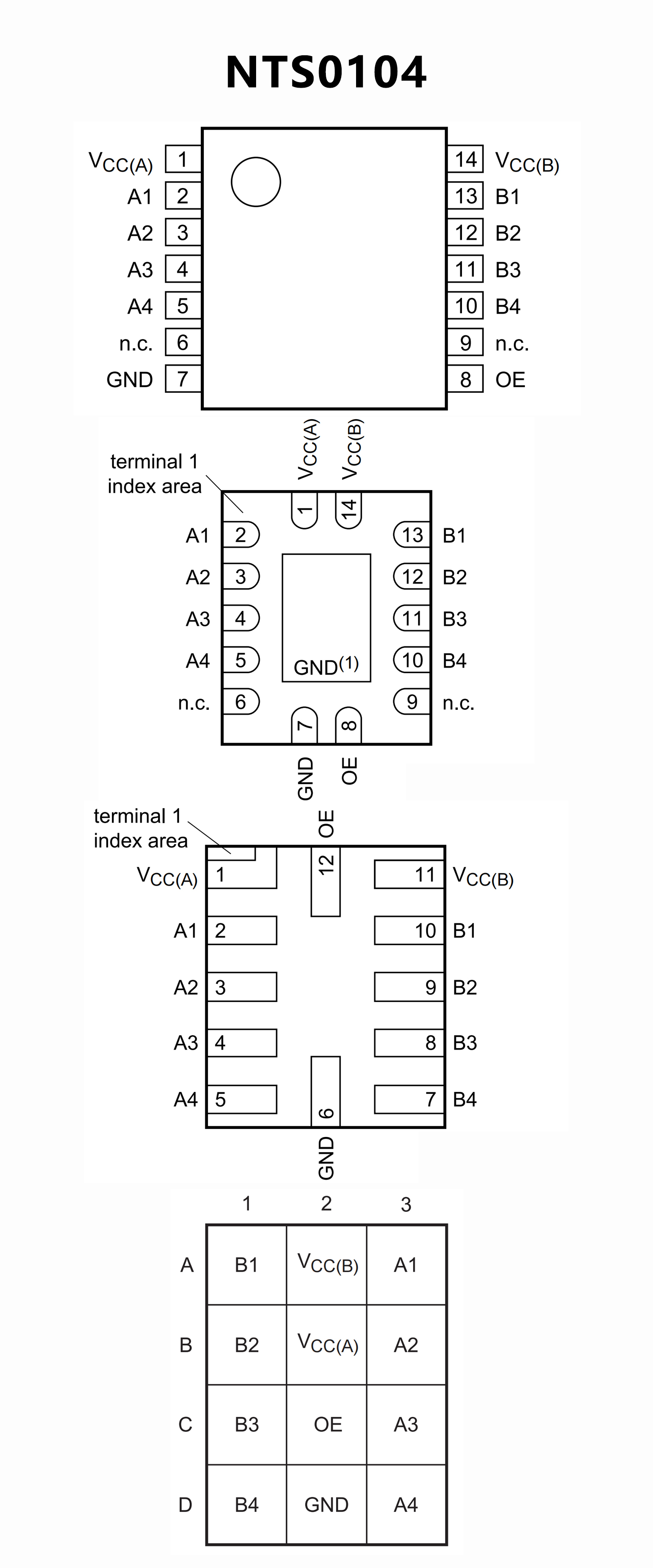

• Packaging (Pb-free & Green):

  14-Pin,TSSOP (L)

  14-Pin,3.5mm x 3.5mm, TQFN (ZB)

  12-Pin, 1.7mm x 2.0mm, XQFN (ZMA)

  12-Pin,1.87mm x 1.37mm,WLCSP(GAB)
