Dual supply translating transceiver; open drain; auto direction sensing, LXS0104 Replace NXS0104.

LXS0104

FEATURES

• High-Speed with 24 Mb/s Data Rate for push-pull

applications

• High-Speed with 2 Mb/s Data Rate for open-drain

applications

• 1.65V to 3.6V on A Port and 2.3V to 5.5V on B Port

• V_CCA must beless than or equal to V_CCB

• No Direction-Control Signal Needed

• Low Bit-to-Bit Skew

• Non-preferential Power-up Sequencing

• ESD protection exceeds JESD22-Al14

APort: 2500V HBM

BPort:2500V HBM

•Integrated 10 kO Pull-Up Resistors

•Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• For automotive applications requiring specific change

control

• Packaging (Pb-free & Green):

14-Pin,TSSOP (L)

14-Pin,3.5mm x 3.5mm, TQFN (ZB)

12-Pin, 1.7mm x 2.0mm, XQFN (ZMA)

12-Pin,1.87mm x 1.37mm,WLCSP(GAB)

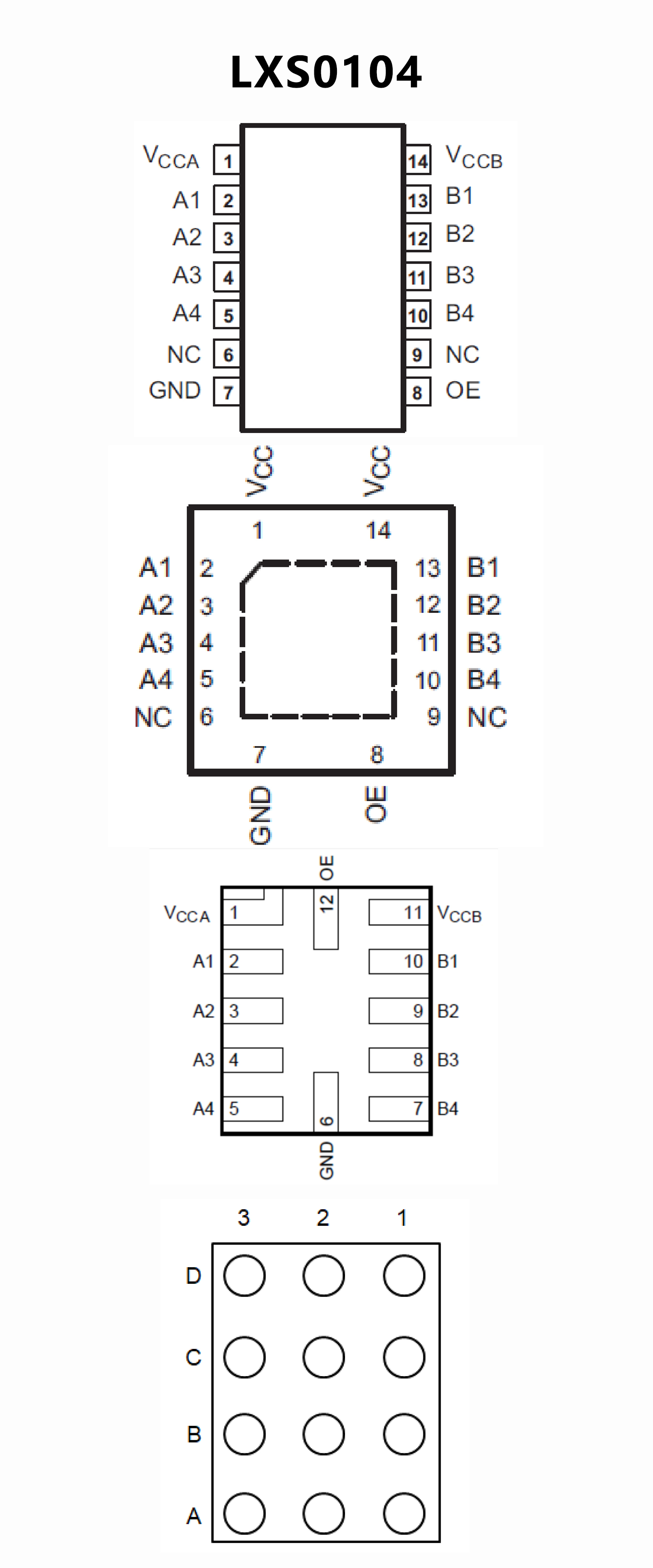

PIN CONFIGUTION

优势替代

NXS0104

NXS0104.pdf

No.14345

FEATURES

• Wide supply voltage range:

• VCC(A): 1.65 V to 3.6 V and VCC(B): 2.3 V to 5.5 V

• Maximum data rates:

• Push-pull: 24 Mbps

• IOFF circuitry provides partial Power-down mode operation

• Inputs accept voltages up to 5.5 V

• ESD protection:

• HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2500 V for A port

• HBM: ANSI/ESDA/JEDEC JS-001 class 3B exceeds 15000 V for B port

• CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V

• IEC61000-4-2 contact discharge exceeds 8000 V for B port

• Latch-up performance exceeds 100mA per JESD78B Class II

• Multiple package options

• Specified from -40 °C to +85 °C and -40 °C to +125 °C

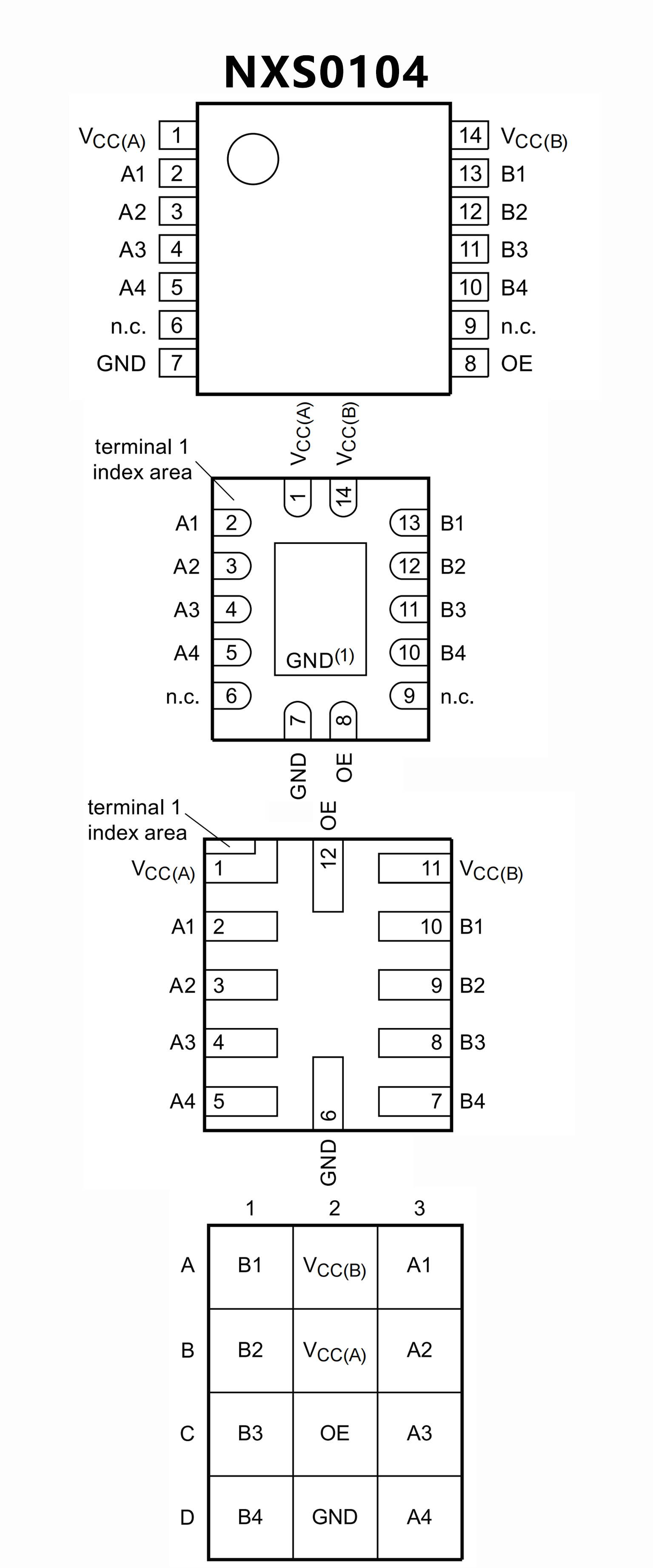

PIN CONFIGUTION
