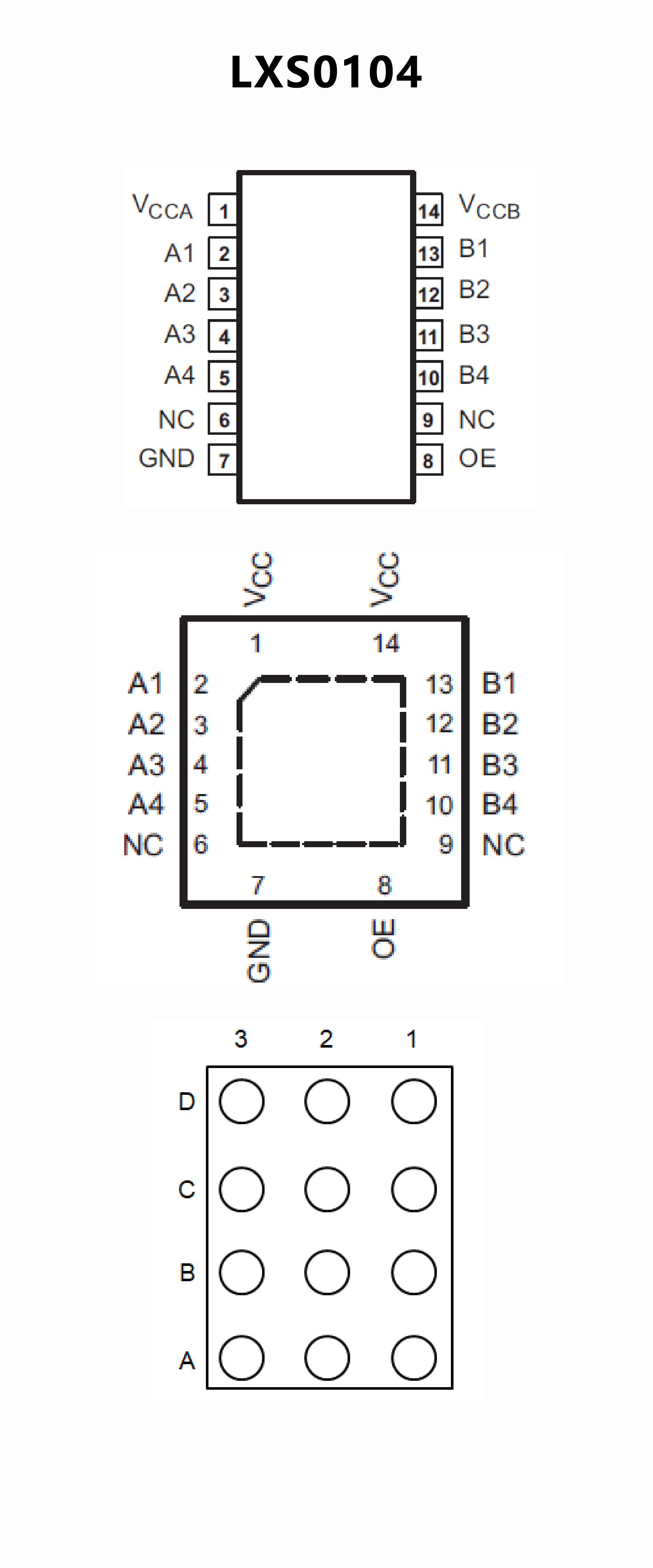

LXS0104.pdf• High-Speed with 24 Mb/s Data Rate for push-pull
applications
• High-Speed with 2 Mb/s Data Rate for open-drain
applications
• 1.65V to 3.6V on A Port and 2.3V to 5.5V on B Port
• VCCA must beless than or equal to VCCB
• No Direction-Control Signal Needed
• Low Bit-to-Bit Skew
• Non-preferential Power-up Sequencing
• ESD protection exceeds JESD22-Al14
APort: 2500V HBM
BPort:2500V HBM
•Integrated 10 kO Pull-Up Resistors
•Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change
control
• Packaging (Pb-free & Green):
14-Pin,TSSOP (L)
14-Pin,3.5mm x 3.5mm, TQFN (ZB)
12-Pin, 1.7mm x 2.0mm, XQFN (ZMA)
12-Pin,1.87mm x 1.37mm,WLCSP(GAB)
• No Direction-Control Signal Needed
• Max Data Rates
24 Mbps (Push Pull)2 Mbps (Open Drain)

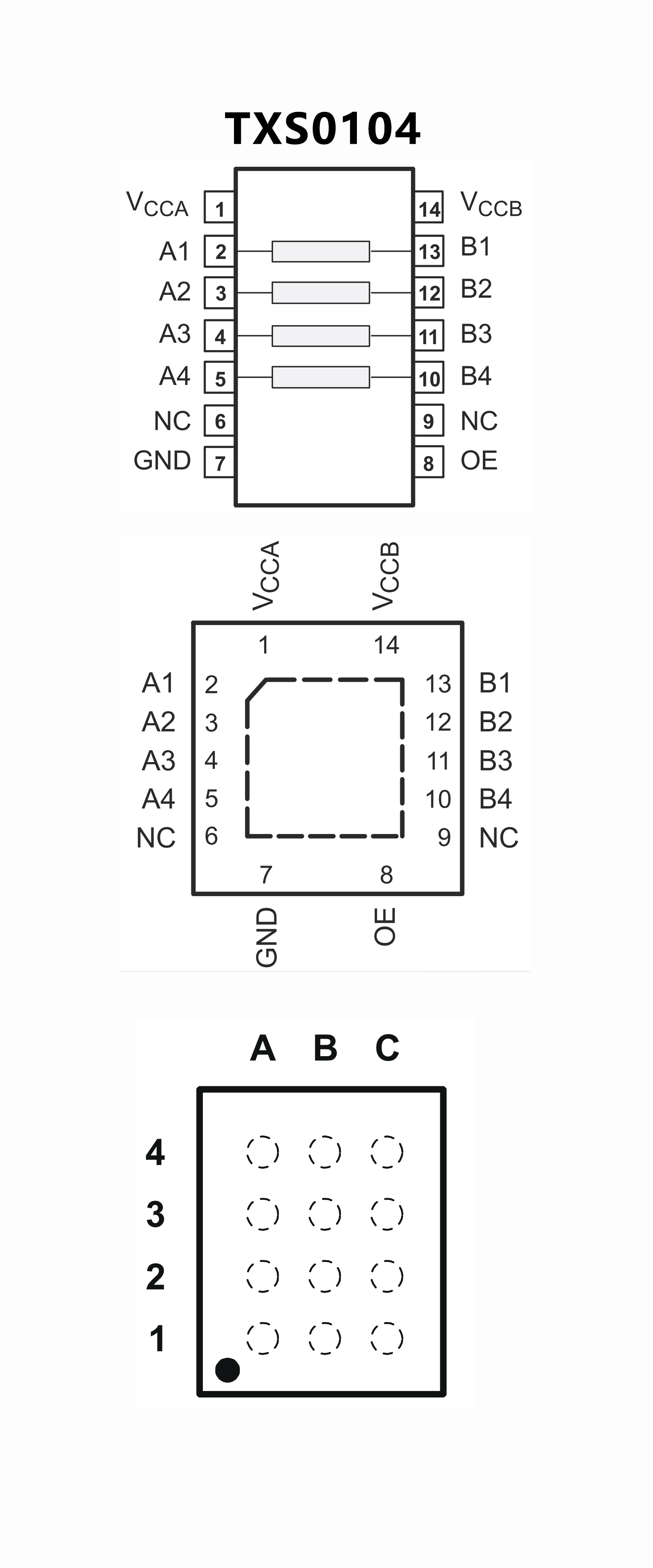

• Available in the Texas Instruments
NanoFree™ Package
• 1.65 V to 3.6 V on A port and 2.3
V to 5.5 V on B port (VCCA ≤ VCCB)
• No Power-Supply Sequencing
Required – VCCA or VCCB Can Be Ramped First
• Latch-Up Performance Exceeds
100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22 A Port
• 2000-V Human-Body Model (A114-B)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)B Port
• 15-kV Human-Body Model (A114-B)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
• IEC 61000-4-2 ESD (B Port)
±8-kV Contact Discharge±10-kV Air-Gap Discharge
