8-Bit Bi-Directional Level Shifter with Automatic Direction Sensing for Push-Pull and Open-Drain Applications, P2P NTS0108.
LXS0108ZHEX LXS0108ZHEX.pdf
FEATURES

• Specified From-40°C to +85°C

• 3.3V and 5.0V Translations

  110Mbps (Push-Pull)

  0.8Mbps (Open-Drain)

• 1.8V and 2.5V,3.3V, 5.0V Translations

  6OMbps (Push-Pull)

  0.8Mbps (Open-Drain)

• 1.2V and 1.8V,2.5V,3.3V,5.0V Translations

  20Mbps (Push-Pull)

  0.6Mbps (Open-Drain)

• VccA: 1.2V to 3.6V

• VccB 1.65V to 5.5V

• VccA Must Be Less Than or Equal to VCCB

• No Direction-Control Signal Required

• Bit-to-Bit Skew as Low as 1.Ons

• ESD Protection Per ANSI/ESDA/JEDEC JS-001

  APort: HBM士5000V

  BPort:HBM士8000V

• IEC 61000-4-2 ESD (B Port)

  士8000V Contact Discharge

• Integrated Pull-Up ResistorsPackaging (Pb-free & Green):

  20-pin, TSSOP (L)

  20-pin,4.5mmx3.5mm,W-QFN3545 (ZH)

• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• An automotive-compliant part is available under separate

  datasheet (LXS0108Q)

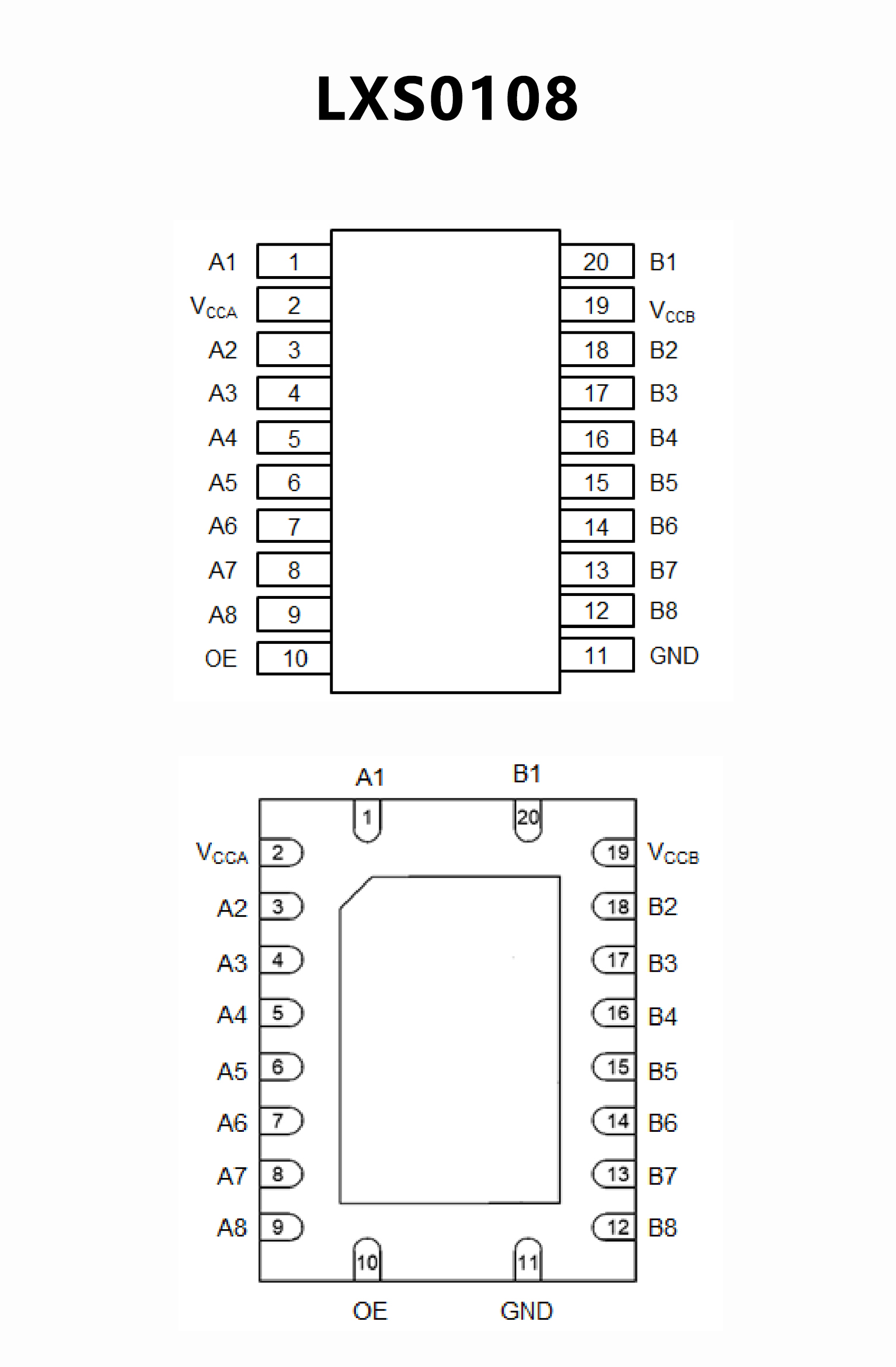

PIN CONFIGUTION
