Dual supply translating transceiver; open drain; auto direction sensing, LXS0108 P2P NXS0108.
FEATURES

• Specified From-40°C to +85°C

• 3.3V and 5.0V Translations

  110Mbps (Push-Pull)

  0.8Mbps (Open-Drain)

• 1.8V and 2.5V,3.3V, 5.0V Translations

  6OMbps (Push-Pull)

  0.8Mbps (Open-Drain)

• 1.2V and 1.8V,2.5V,3.3V,5.0V Translations

  20Mbps (Push-Pull)

  0.6Mbps (Open-Drain)

• VccA: 1.2V to 3.6V

• VccB 1.65V to 5.5V

• VccA Must Be Less Than or Equal to VCCB

• No Direction-Control Signal Required

• Bit-to-Bit Skew as Low as 1.Ons

• ESD Protection Per ANSI/ESDA/JEDEC JS-001

  APort: HBM士5000V

  BPort:HBM士8000V

• IEC 61000-4-2 ESD (B Port)

  士8000V Contact Discharge

• Integrated Pull-Up ResistorsPackaging (Pb-free & Green):

  20-pin, TSSOP (L)

  20-pin,4.5mmx3.5mm,W-QFN3545 (ZH)

• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• An automotive-compliant part is available under separate

  datasheet (LXS0108Q)

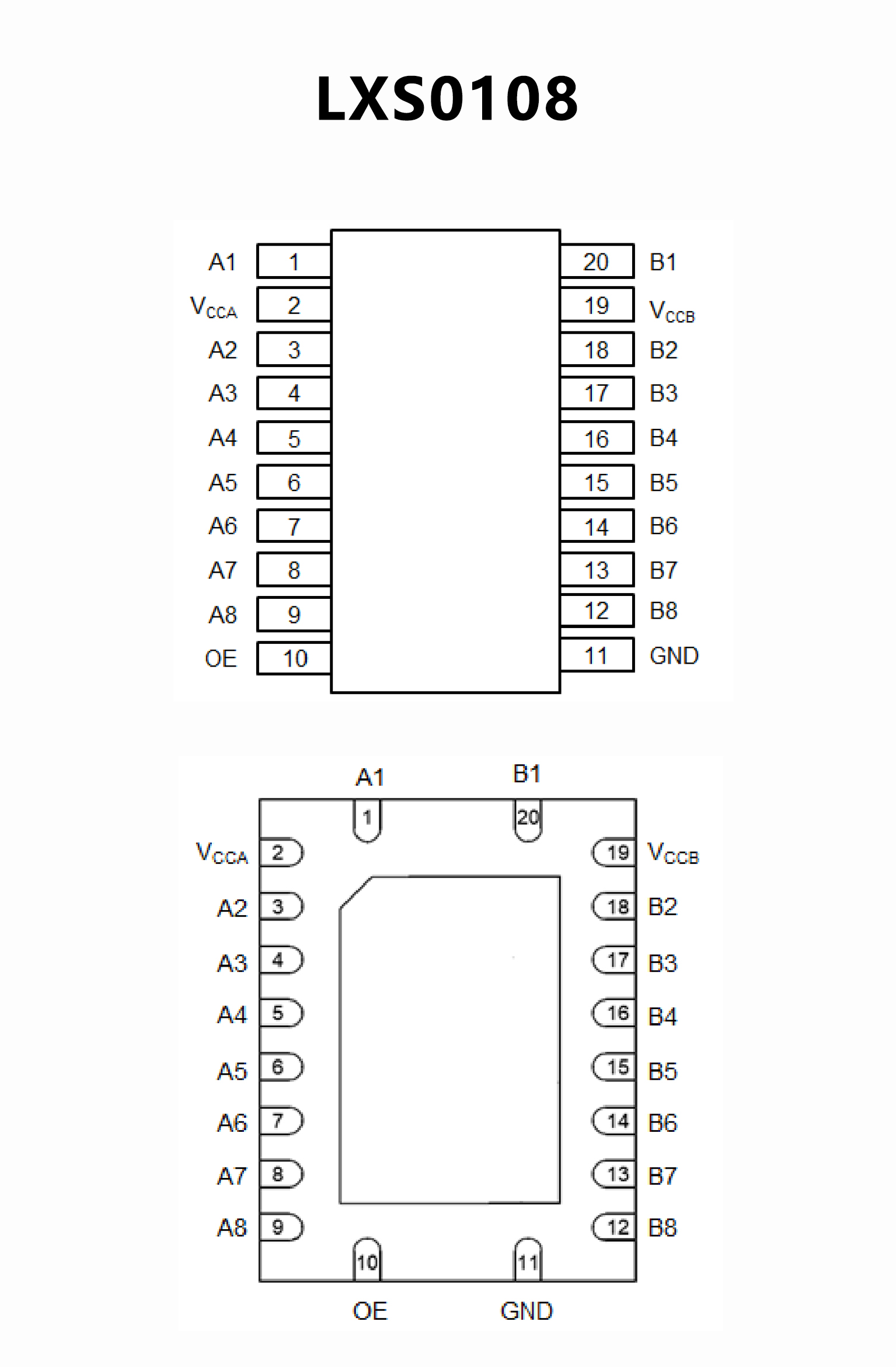

PIN CONFIGUTION
优势替代
NXS0108 NXS0108.pdf

No.14348

FEATURES

• Wide supply voltage range:

• VCC(A): 1.2 V to 3.6 V and VCC(B): 1.65 V to 5.5 V

• Maximum data rates:

• Push-pull: 110 Mbps

• IOFF circuitry provides partial

  Power-down mode operation

• Inputs accept voltages up to 5.5 V

• ESD protection:

• HBM JESD22-A114E Class 2 exceeds

  2.5 kV for A port

• HBM JESD22-A114E Class 3B exceeds

  15 kV for B port

• CDM JESD22-C101E exceeds 1.5 kV

• IEC61000-4-2 contact discharge

  exceeds 8 kV for B port

• Latch-up performance exceeds 100

  mA per JESD 78B Class II

• Specified from -40 °C to +85 °C and -40 °C to +125 °C

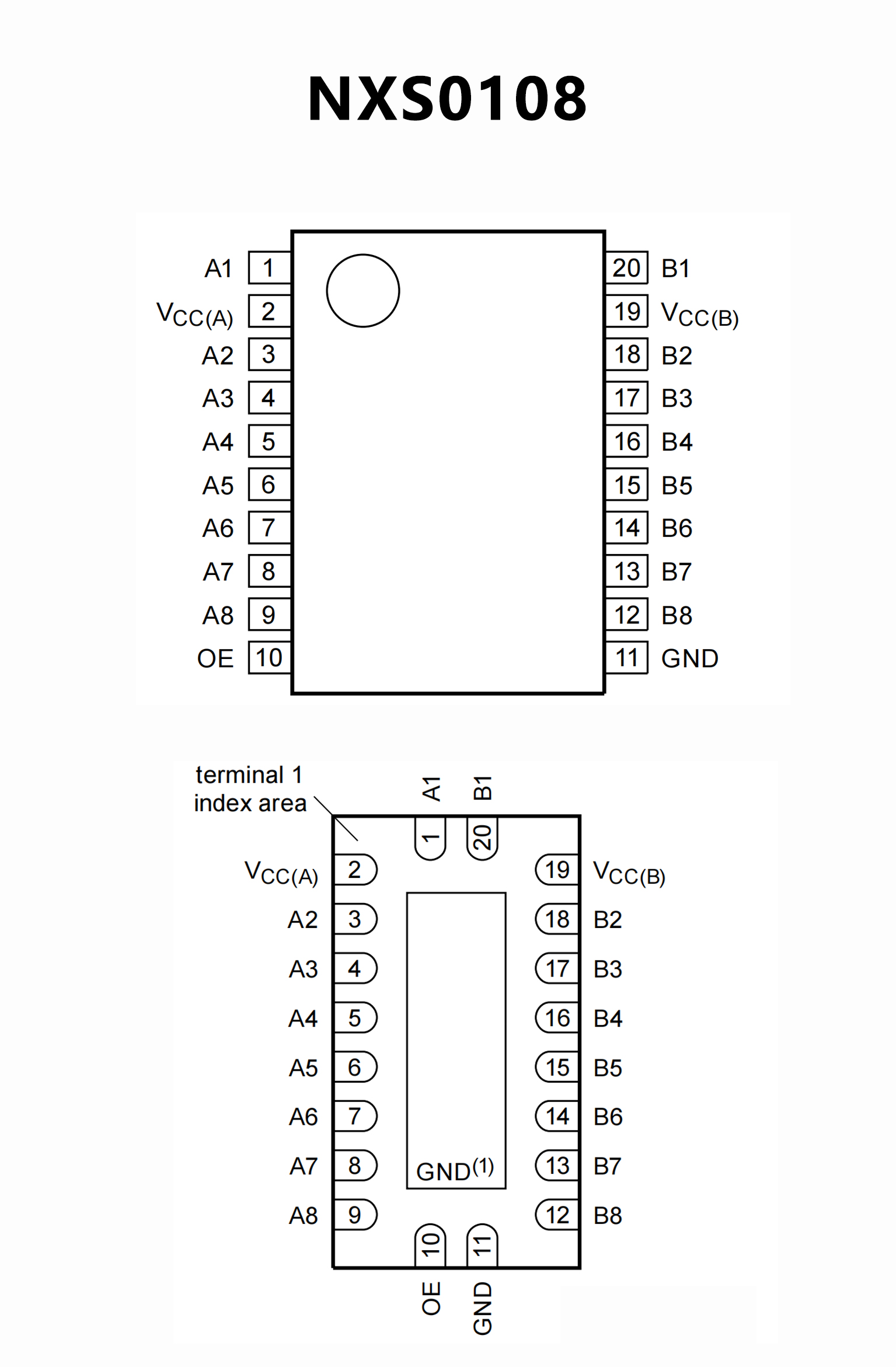

PIN CONFIGUTION
