4-Bit 100 Mb/s Configurable Dual-Supply Level Translator, PI4ULS3V304 Replace NLVSX4014.
PI4ULS3V304
PI4ULS3V304.pdf
PI4ULS3V304.pdfFEATURES
• 0.85V to 2.7V on A Port and 1.35V to 3.6V on B Port
• VCCA may be greater than, equal to, or less than VCCB
• High-Speed with 140 Mb/s Guaranteed Date Rate
• 100 pF Capacitive Drive Capability
• Low Bit-to-Bit Skew
• Overvoltage Tolerant Enable and I/O Pins
• Non-preferential Power-Up Sequencing
• Power-Off Protection
• Package: UQFN1.7x2.0-12L

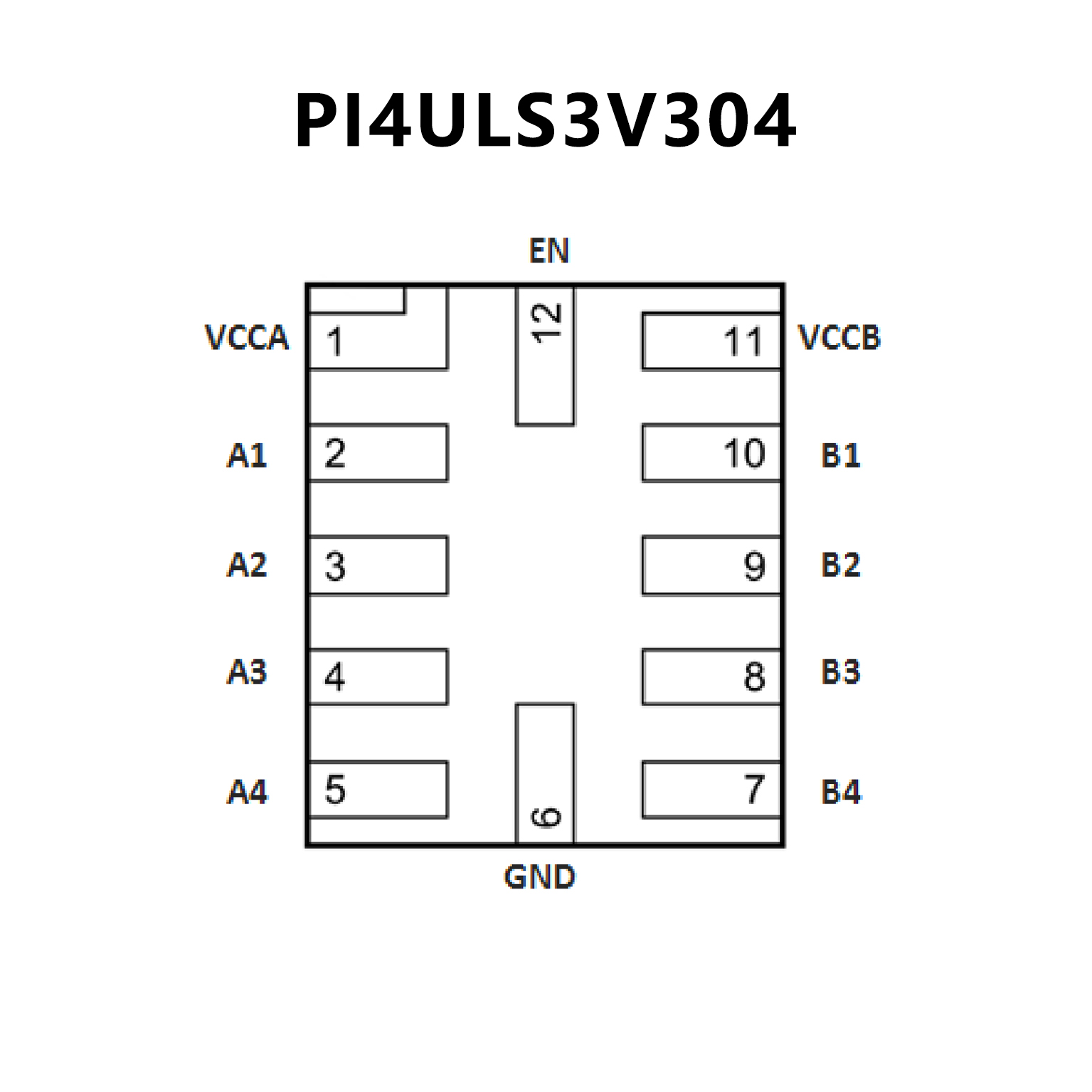

PIN CONFIGUTION
优势替代
FEATURES
• Wide High−Side VCC Operating Range: 1.3V to 4.5V
Wide Low−Side VL Operating Range: 0.9V to (VCC−0.4)V
• Power Supply Isolation
All Outputs are in the High Impedance State if Either
VL or VCC is at Ground
• High−Speed with 100 Mb/s Guaranteed Date Rate for
VL > 1.6 V
• Low Bit−to−Bit Skew
• Overvoltage Tolerant Enable and I/O Pins
• Non−preferential Powerup Sequencing
• Small packaging: 1.7 mm x 2.0 mm UQFN12
• NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These are Pb−Free Devices

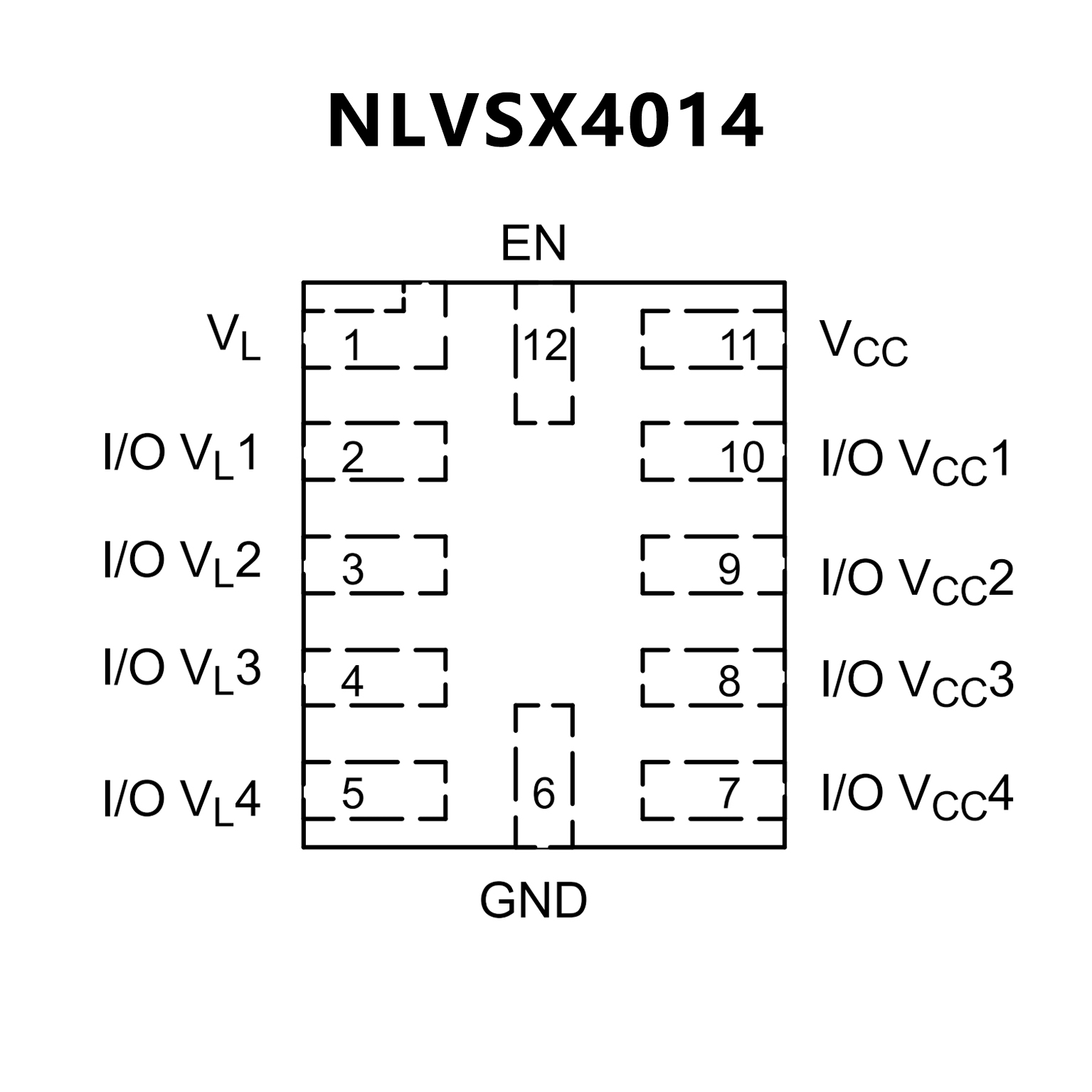

PIN CONFIGUTION
