PI4ULS3V304.pdf• 0.85V to 2.7V on A Port and 1.35V to 3.6V on B Port
• VCCA may be greater than, equal to, or less than VCCB
• High-Speed with 140 Mb/s Guaranteed Date Rate
• 100 pF Capacitive Drive Capability
• Low Bit-to-Bit Skew
• Overvoltage Tolerant Enable and I/O Pins
• Non-preferential Power-Up Sequencing
• Power-Off Protection

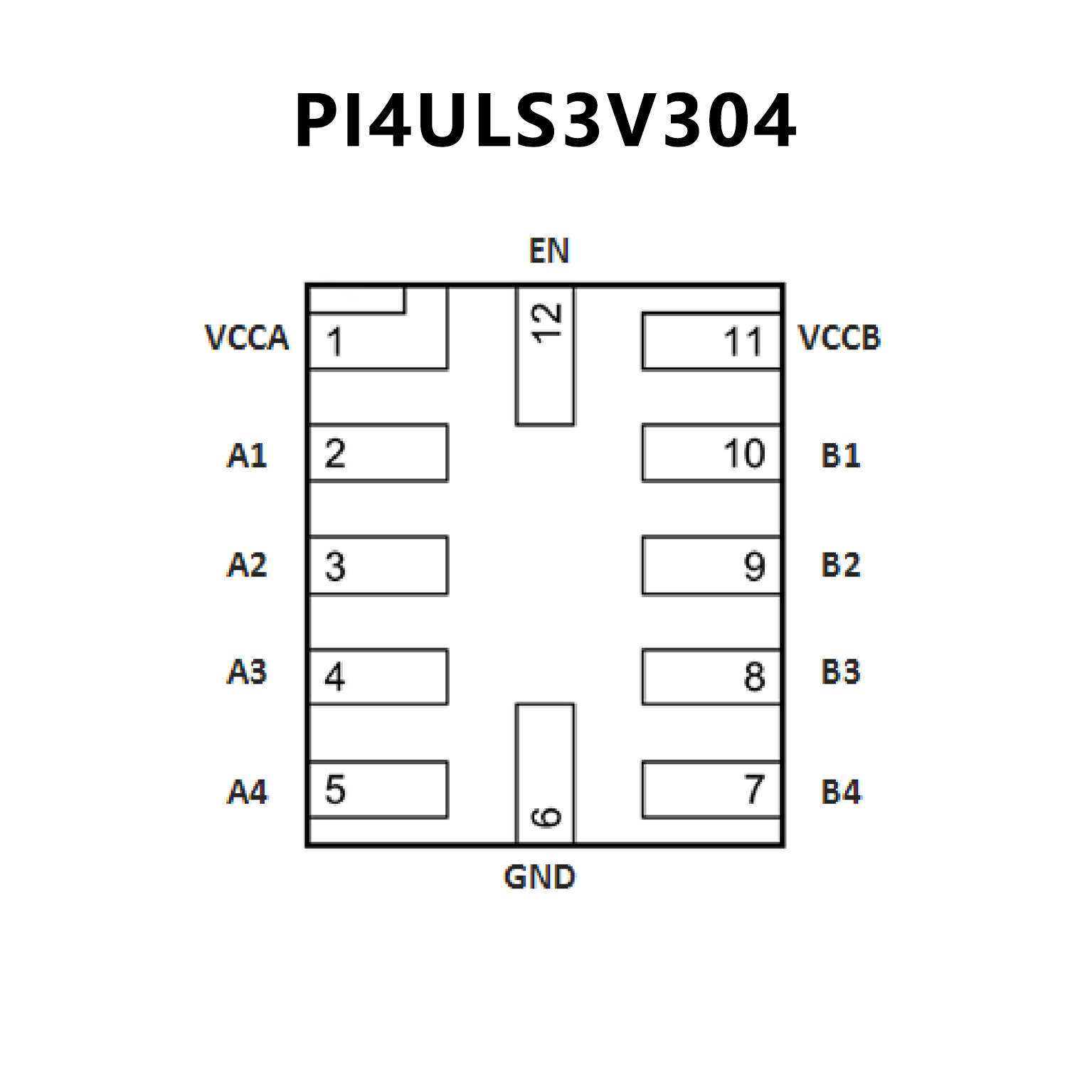

• Package: UQFN1.7x2.0-12L
• Fully Symmetric Supply Voltages, 0.9 V to 3.6 V
on A Port and 0.9 V to 3.6 V
• VCC Isolation Feature – If Either VCC Input is at
GND, all Outputs are in High-Impedance State
• OE Input Circuit Referenced to VCCA
• Low Power Consumption, 5 μA Max (ICCA or ICCB)
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
• ESD Protection Exceeds JESD 22
8000-V Human-Body Model (A114-B)
1000-V Charged-Device Model (C101)
