I2C Bus/SMBus Repeater, PI6ULS5V9515 Replace PCA9515.
PI6ULS5V9515
PI6ULS5V9515.pdf
PI6ULS5V9515.pdfFEATURES
• 2 channel, bidirectional buffer
• I2C-bus and SMBus compatible
• Operating supply voltage range of 2.3 V to 3.6 V
• Active HIGH repeater enable input
• Open-drain input/outputs
• Lock-up free operation
• Supports arbitration and clock stretching across the
repeater
• Accommodates Standard-mode and Fast-mode I2C
bus devices and multiple masters
• Powered-off high-impedance I2C-bus pins
• 5.5 V tolerant I2C-bus and enable pins
• 0 Hz to 400 kHz clock frequency (the maximum
system operating frequency may be less than 400
kHz because of the delays added by the repeater)
• ESD protection exceeds 4KV HBM per JESD22-A114
• Package: MSOP-8, SOIC-8 and DFN2x3-8L

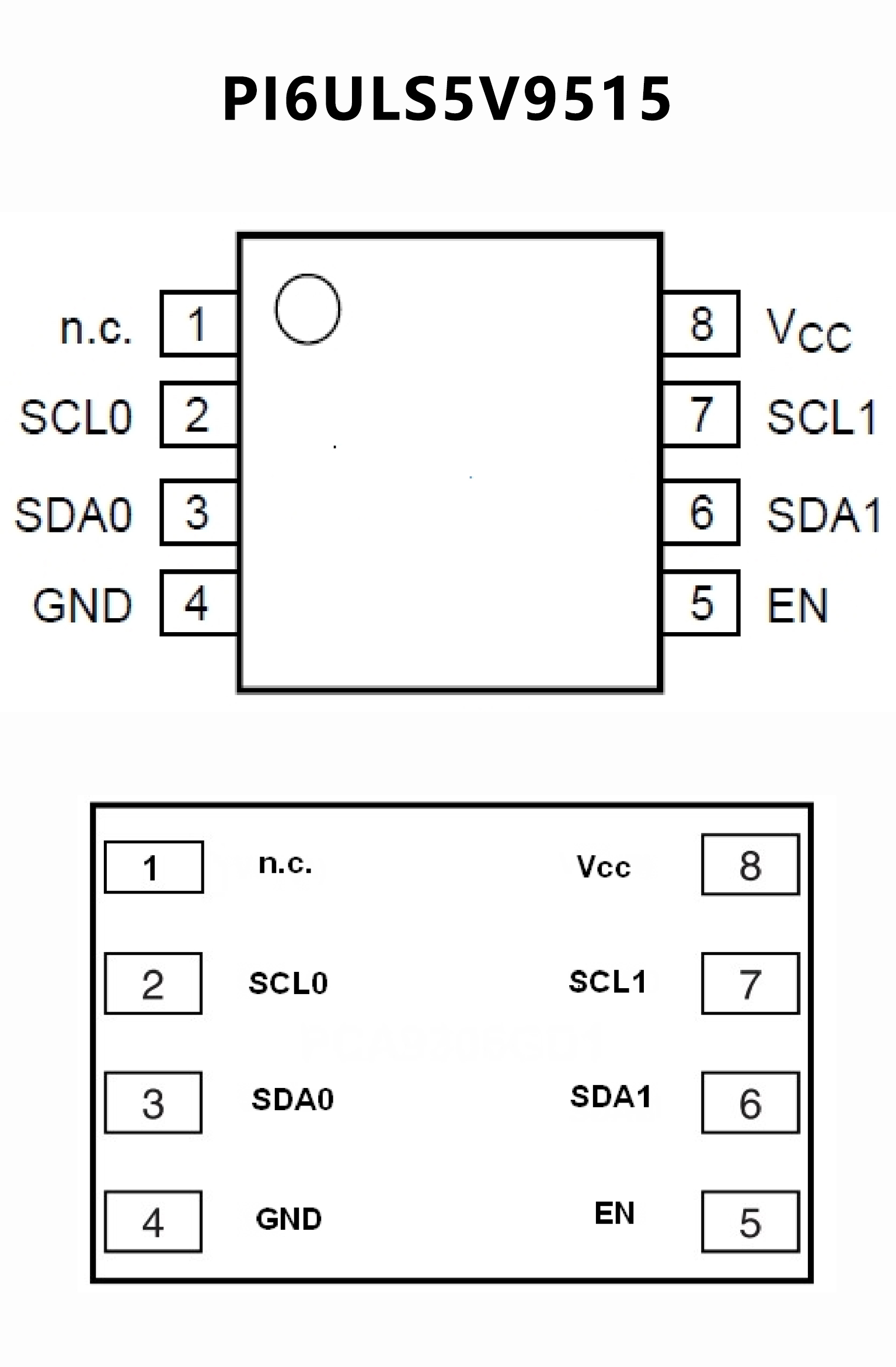

PIN CONFIGUTION
优势替代
FEATURES
• Two-Channel Bidirectional Buffers
• I2C Bus and SMBus Compatible
• Active-High Repeater-Enable Input
• Open-Drain I²C I/O
• 5.5-V Tolerant I²C I/O and Enable Input Support
Mixed-Mode Signal Operation
• Lockup-Free Operation
• Accommodates Standard Mode and Fast Mode
• I²C Devices and Multiple Masters
• Powered-Off High-Impedance I²C Pins
• Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class Il
• ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

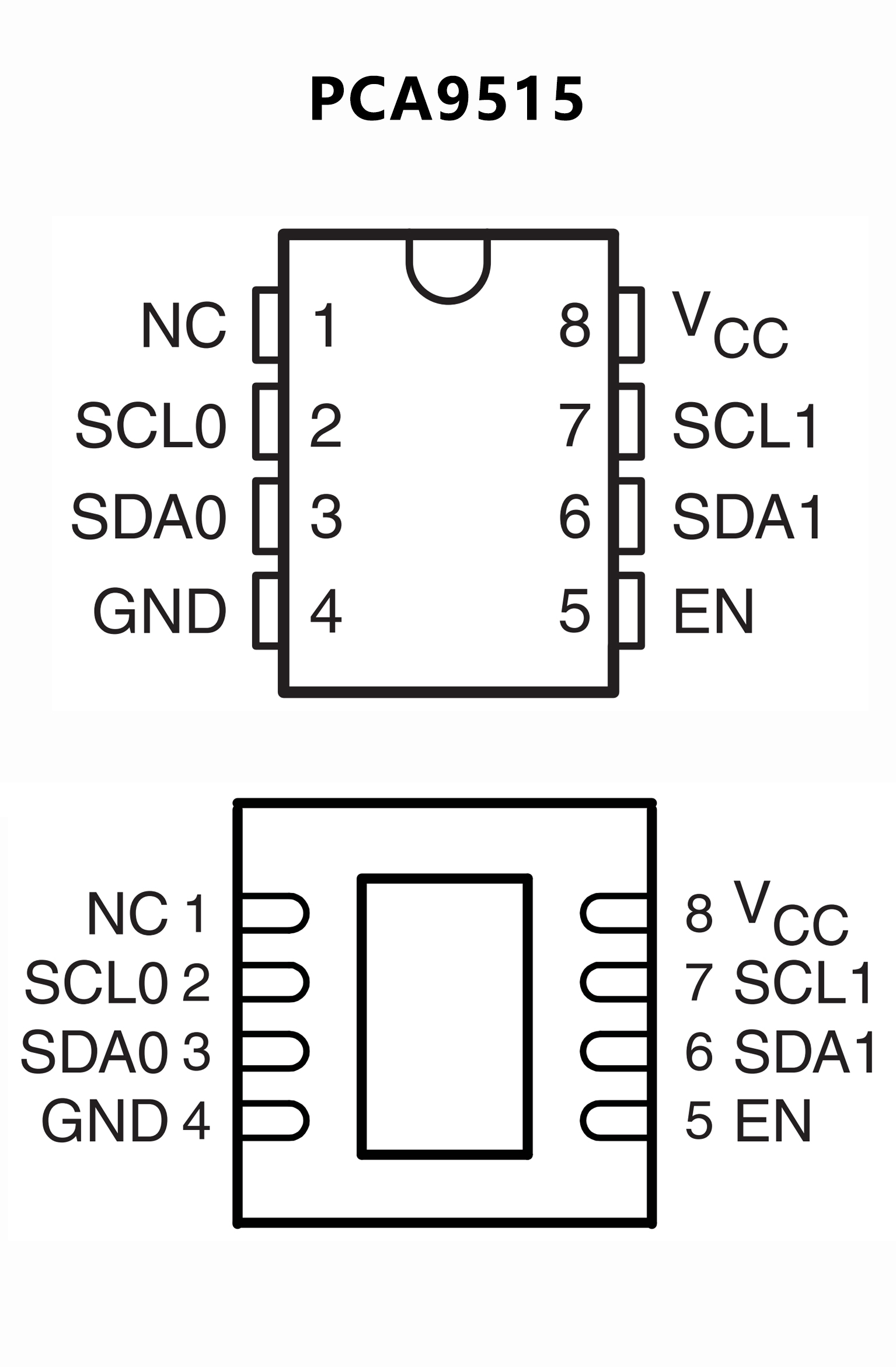

PIN CONFIGUTION
