• Wide Vpp Range: 1.08V to 5.5V

• Low Supply Current: 4nA

• Low On-Resistance 302

• 1.8 V Logic Compatible

• Voltages on the control pins to be applied before the

  supply pin

• Signal Passing Bandwidth, 50OMHz

• Transition Time: 14ns

• Break-before-make Switching

• Rail-to-Rail Signal Range

• High Off Isolation: -65dB @ 1MHz

• Crosstalk Rejection Reduces Signal Distortion: -65dB@

 1MHz

• Extended Industrial Temperature Range: -40°C to 125C

• ESD Protection : 2kV(HBM)

• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• For automotive applications requiring specific change control

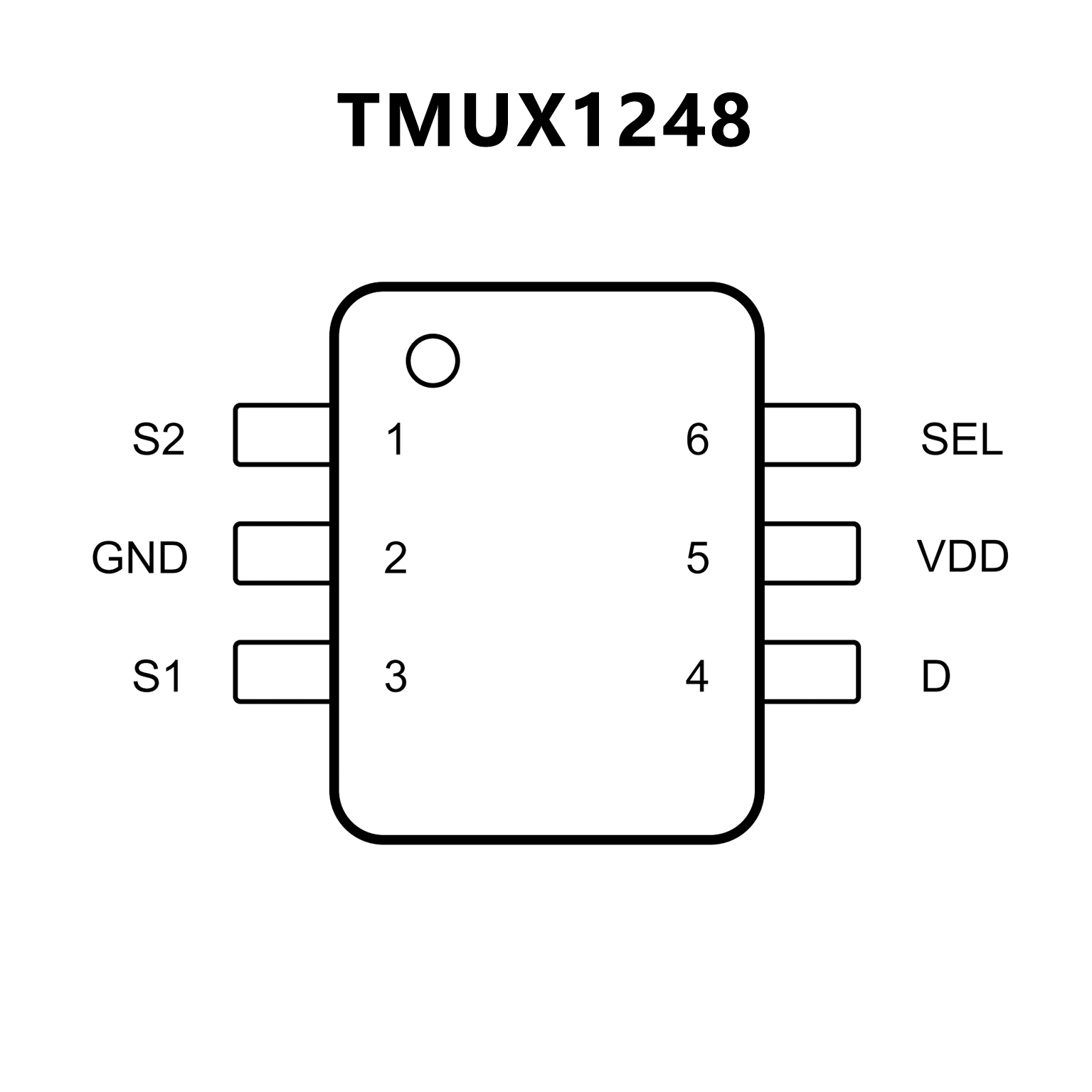

• Packaging (Pb-free & Green): 6-pin SC-70 (C)
