18V Vin, 6A, High Efficiency Synchronous Step-down DCDC Converter, SCT2260C Replace MP8756.
SCT2260C
SCT2260C.pdf
SCT2260C.pdfFEATURES
• Wide 4.5V -18V Input Voltage Range
• 0.6V-7V Output Voltage Range
• 6A Continuous Output Current
• Integrated 42mΩ/17mΩ HS/LS Power MOSFETs
• Fixed 1ms Soft-start Time
• Selectable 400KHz, 800KHz and 1.2MHz
Switching Frequencies
• Selectable PFM and USM Operation Modes
• Cycle-by-Cycle Current Limiting
• Output Over-Voltage Protection
• Over-Temperature Protection
• 12-pin 2mmx3mm QFN Package

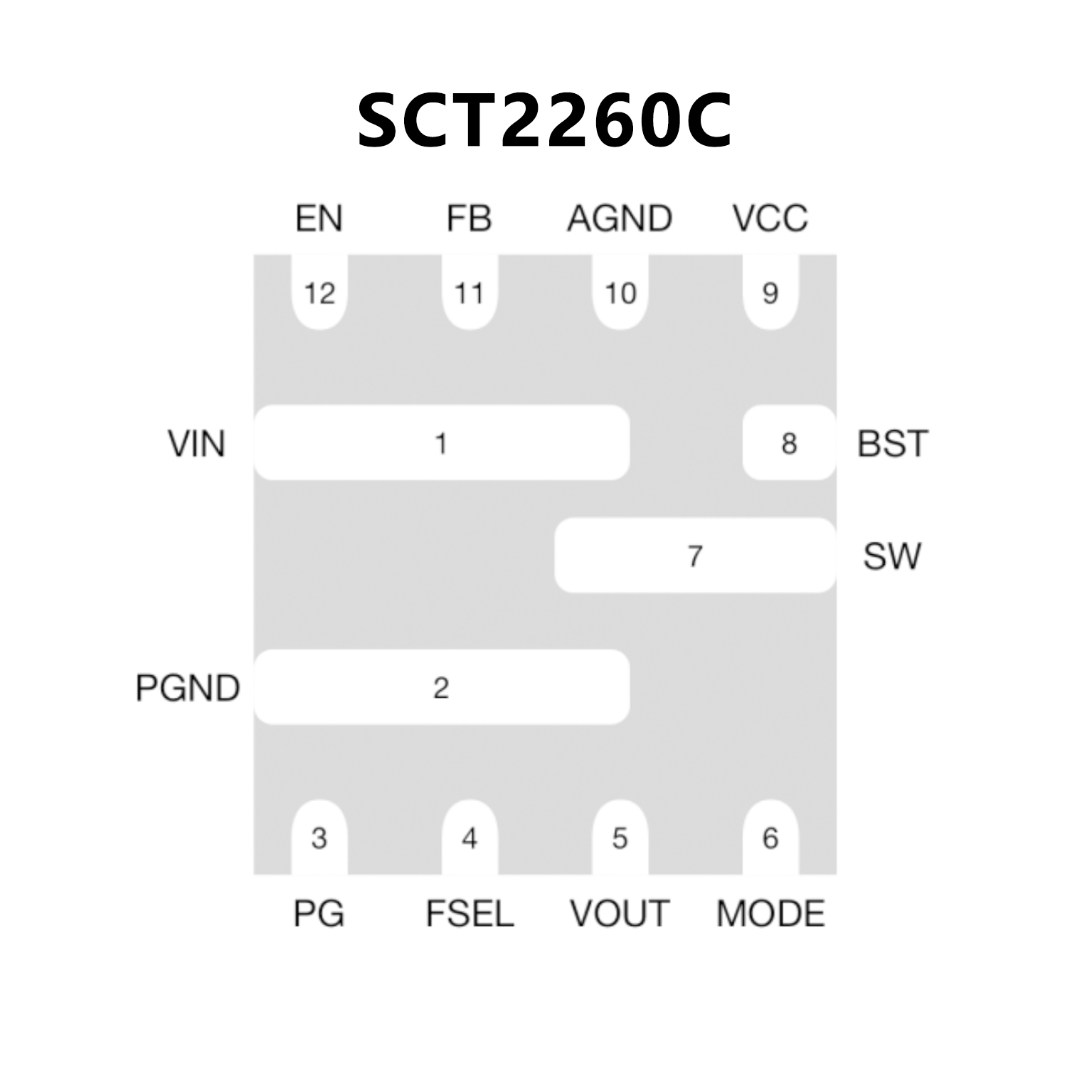

PIN CONFIGUTION
优势替代
FEATURES
• Wide 4.5V to 26V Operating Input Range
• Output Adjustable from 0.6V
• Ultrasonic Mode (USM)
• 117μA Low Quiescent Current
• 6A Continous Output Current
• Adaptive COT for Fast Transient
• DC Auto-Tune Loop
• Stable with POSCAP and Ceramic Output
• 1% Reference Voltage
• Internal Soft Start
• Output Discharge
• 700kHz Switching Frequency
• OCP, OVP, UVP (Hiccup), and Thermal Shutdown
• Available in a QFN-12 (2mmx3mm) Package

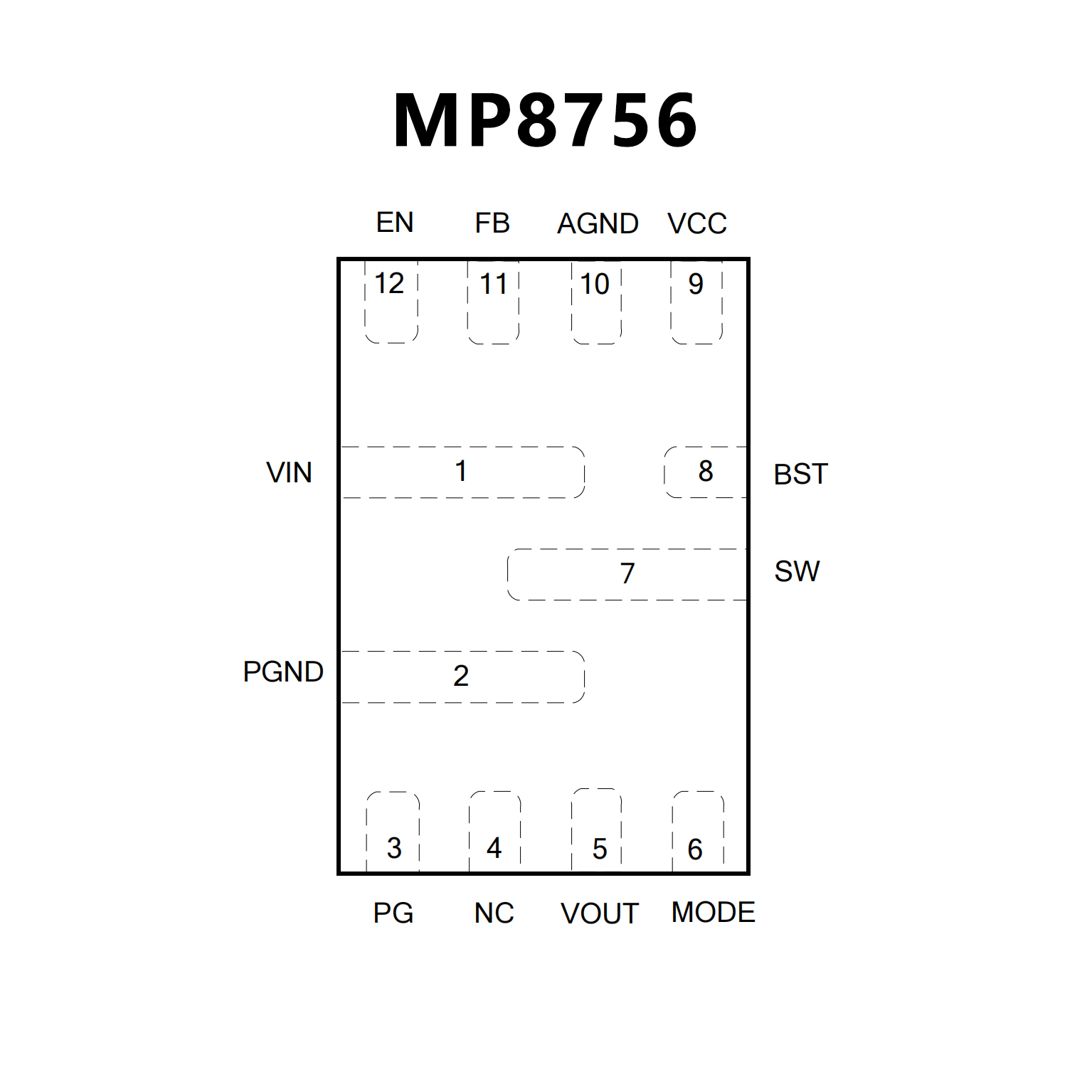

PIN CONFIGUTION
