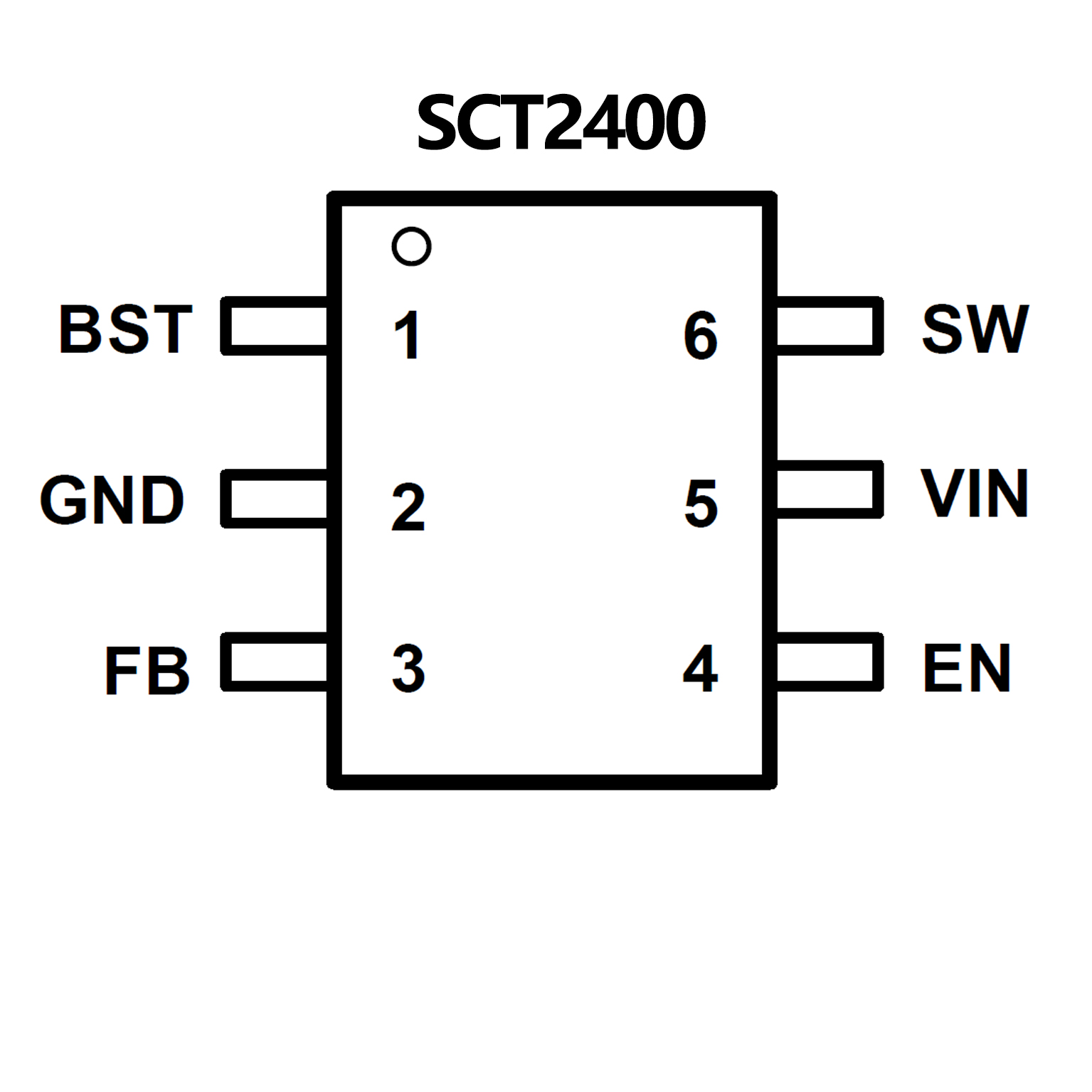

SCT2400.pdf• Wide Input Range: 4.5V-40V
• Up to 600mA Continuous Output Current
• Less than 0.1% Output Ripple at 12V Output
• 0.81V ± 2.5% Feedback Reference Voltage
• Integrated 600mΩ High-Side and 300mΩ Low-Side Power MOSFETs
• Fixed Frequency 2MHz
• Pulse Skipping Mode (PSM) at Light Load
• 90uA Quiescent Current in Sleep Mode
• 100ns Minimum On-time
• 1ms Internal Soft-start Time
• Over-Temperature Protection
• Available in an TSOT23-6 Package
• Meets 0.1% Output Voltage Ripple
• Low Dropout Mode
• 65μA Operating Quiescent Current
• Light-Load Mode
• >90% Efficiency
• Dedicated Internal Compensation
• Stable with Ceramic/Electrolytic Output Capacitors
• Wide 5V to 36V Operating Input Range
• 400mΩ/200mΩ Internal Power MOSFETs
• 2MHz Fixed Switching Frequency
• Internal Soft Start (SS)
• Precision Current Limit without Current Sensing Resistor
• Output Adjustable from 0.8V to 0.95·VIN
• Guaranteed Industrial Temperature Range Limits
• Available in a TSOT23-6 Package
