• Designed for Reliable and Rugged Applications

– Wide Input Voltage Range of 6 V to 100 V

– Junction Temperature Range: –40°C to 150°C

– Fixed 3-ms Internal Soft-Start Timer

– Peak and Valley Current Limit Protection

– Input UVLO and Thermal Shutdown Protection

• Suited for Scalable Industrial Power Supplies and

  Battery Packs

– Low Minimum On- and Off-Times of 50 ns

– Adjustable Switching Frequency up to 1 MHz

– Diode Emulation for High Light-Load Efficiency

 – 10-µA No-Load Input Quiescent Current

– 3-µA Shutdown Quiescent Current

– Optimized for CISPR 32 EMI Standard

• Integration Reduces Solution Size and Cost

– COT Mode Control Architecture

– Integrated 0.7-Ω NFET Buck Switch Supports

   Wide Duty-Cycle Range

– Integrated 0.3-Ω NFET Synchronous Rectifier

   Eliminates External Schottky Diode

– 1.2-V ±1% Internal Voltage Reference

– No Loop Compensation Components

– Internal VCC Bias Regulator and Boot Diode

– Open-Drain Power Good Indicator

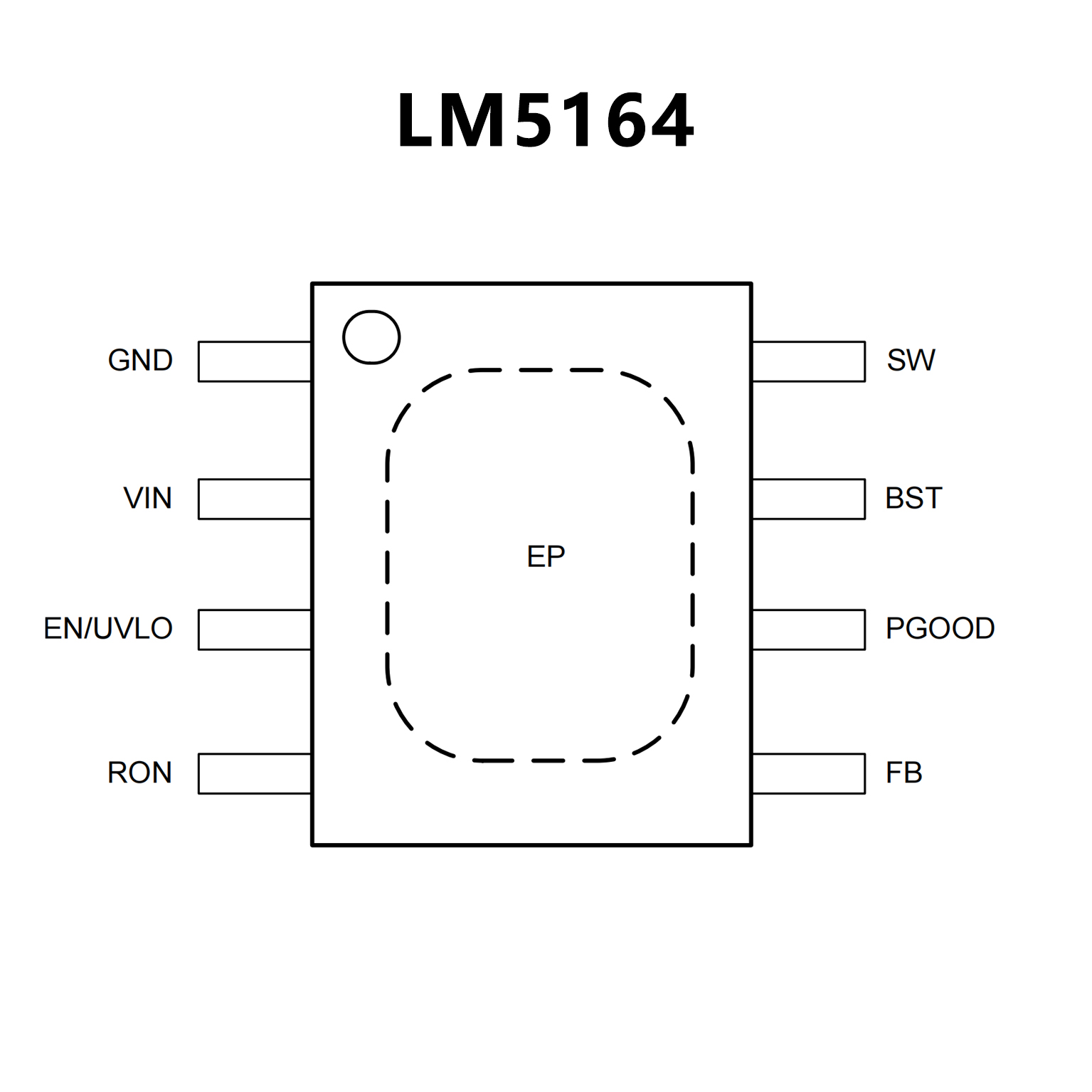

– 8-Pin SOIC Package With PowerPAD

• Create a Custom Design Using WEBENCH

   Power Designer
