800mA, High Voltage, Low Noise LDO Regulator in TO263, SGM2205 Replace SPX29300.
SGM2205
SGM2205.pdf
SGM2205.pdfFEATURES
• 2.5V to 20V Wide Input Voltage Range
• Output Voltage Range: 1.8V to 15V
• Guaranteed 800mA Output over the Full Operating
Temperature Range
• Low 480mV (TYP) Dropout Voltage at Full Load
• Extremely Tight Load and Line Regulation
• Fast Load Transient
• Low Temperature Coefficient
• Output Shorted to GND Protection
• Current and Thermal Limiting
• No-Load Stability
• Ultra Low Noise Capability

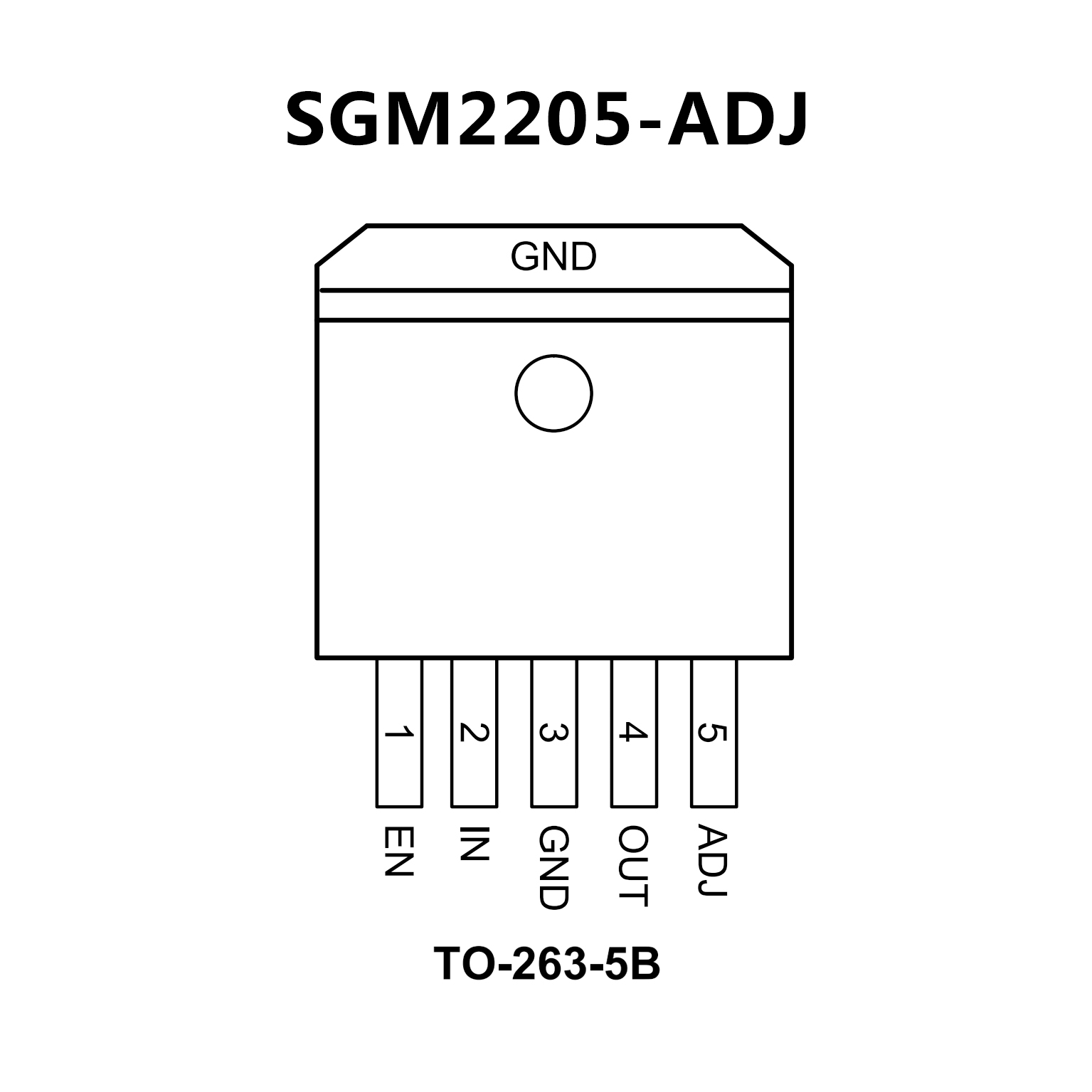

PIN CONFIGUTION
优势替代
FEATURES
• 3A Guaranteed Output Current
• Low Dropout Voltage of 600mV @ 3A
• Adjustable Output down to 1.25V
• 1% Output Accuracy
• Tight Load and Line Regulation
• Fast Transient Response
• Reverse Battery Protection
• Zero Current Shutdown (SPX29301/02)
• Power Good Flag (SPX29301)
• Lead Free 3-Pin TO-263 and 5-pin TO-
263 Packages

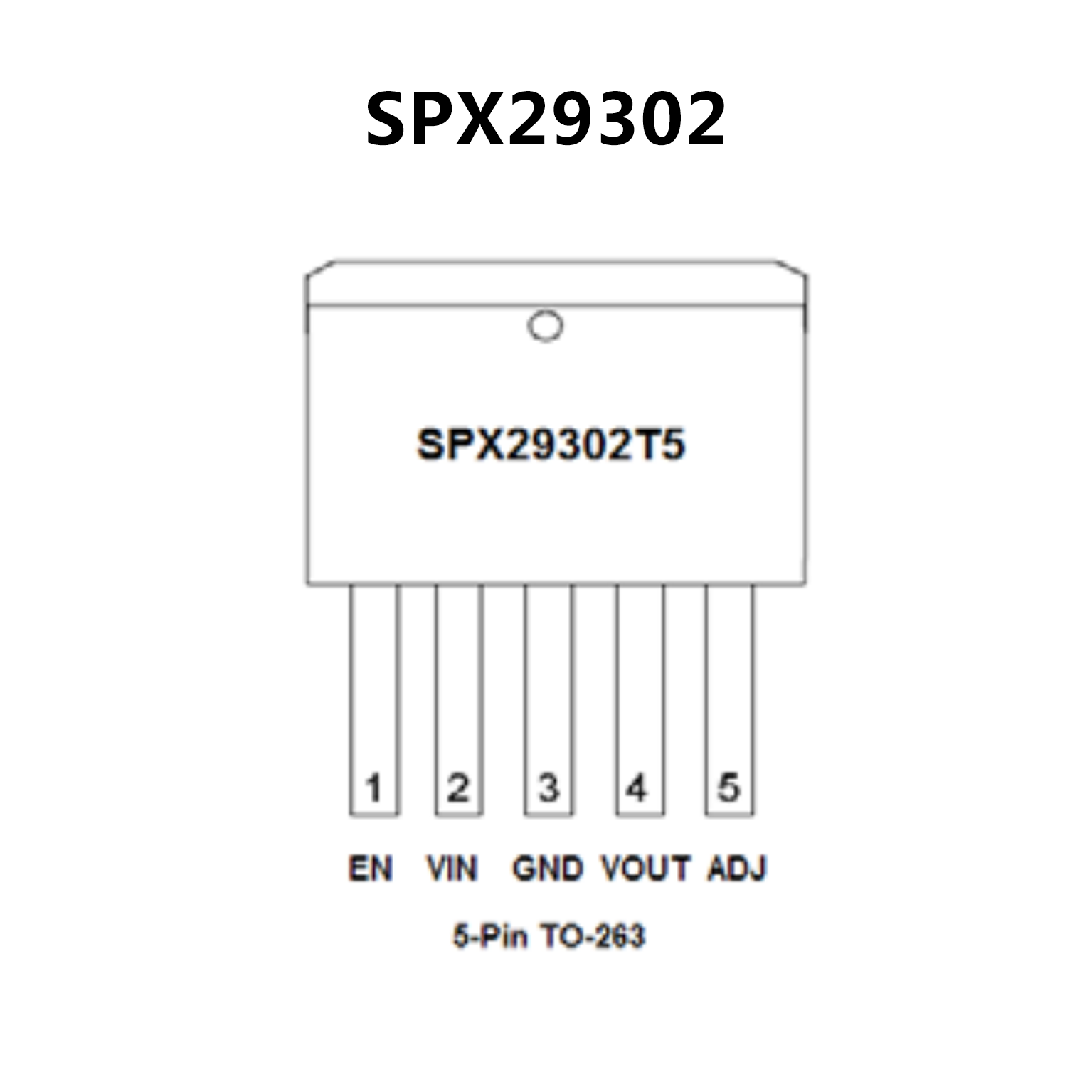

PIN CONFIGUTION
