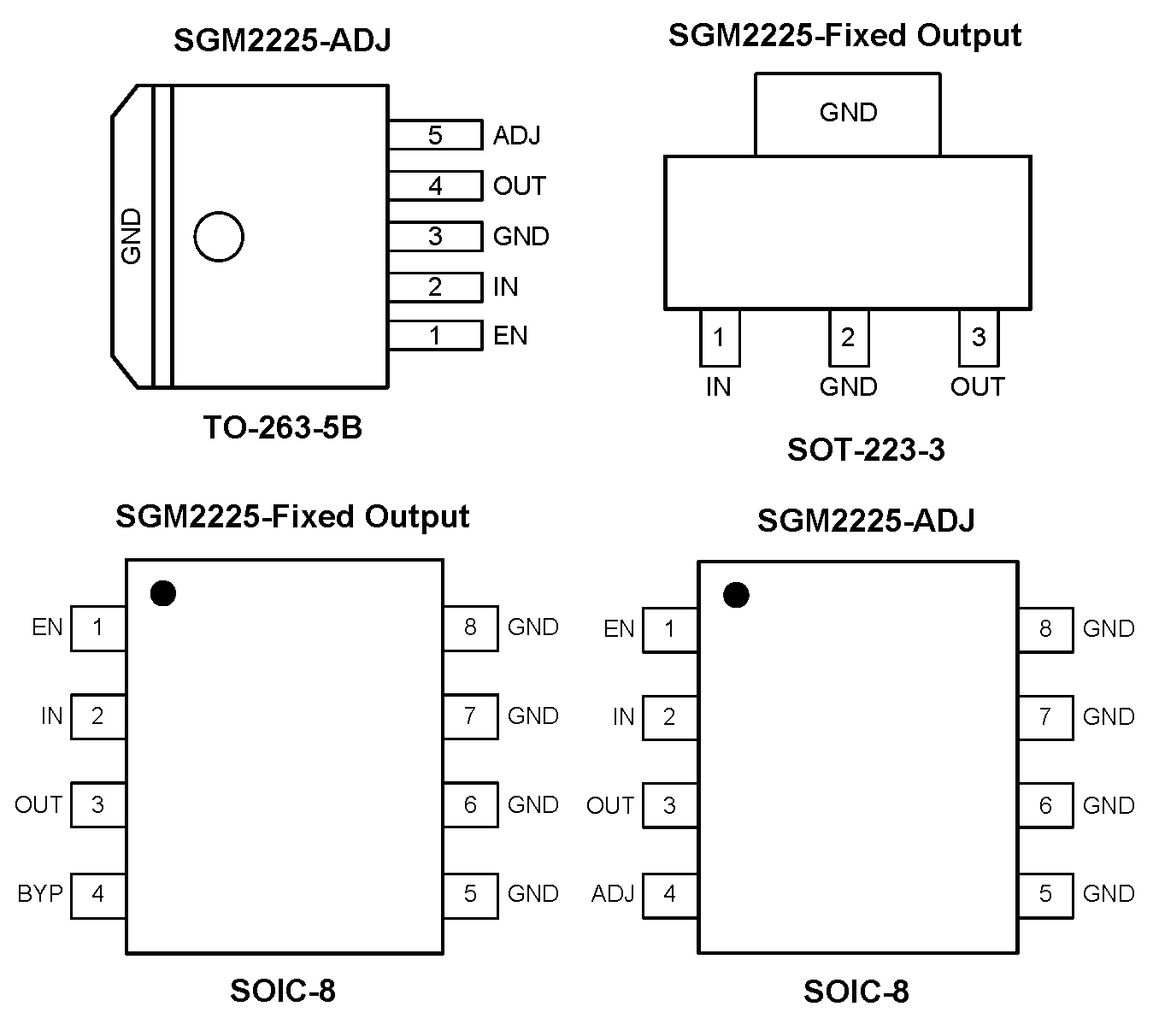

SGM2225.pdf• 3.6V to 36V Wide Input Voltage Range
• Output Voltage Range: 1.8V to 12V
• Guaranteed 800mA Output over the Full Operating
Temperature Range
• Low 480mV (TYP) Dropout Voltage at Full Load
• Extremely Tight Load and Line Regulation
• Fast Load Transient
• Low Temperature Coefficient
• Output Shorted to GND Protection
• Current and Thermal Limiting
• No-Load Stability
• Output Voltage Accuracy: ±2%
• Thermally-Efficient Surface-Mount Package

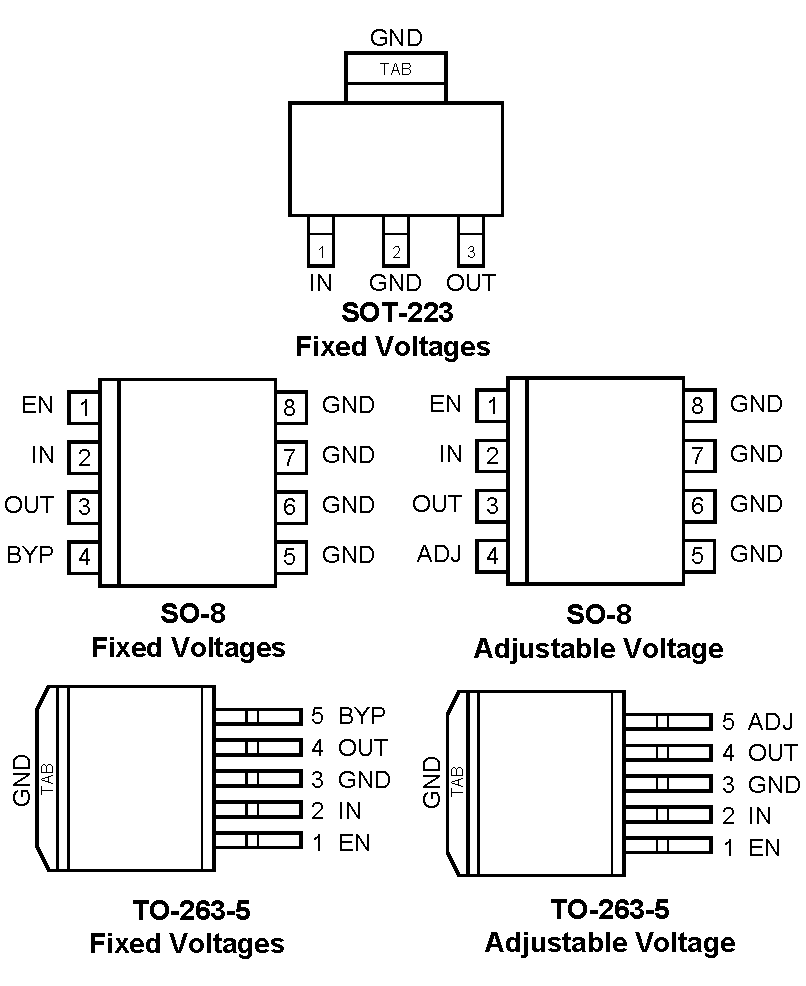

• Meets Intel® Slot 1 and Slot 2 requirements
• Guaranteed 500mA output over the full operating
temperature range
• Low 500mV maximum dropout voltage at full load
• Extremely tight load and line regulation
• Thermally-efficient surface-mount package
• Low temperature coefficient
• Current and thermal limiting
• Reversed-battery protection
• No-load stability
• 1% output accuracy
• Ultra-low-noise capability in SO-8 and TO-263-5
