SGM2239Q.pdf• AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
• Operating Input Voltage Range: 2.5V to 40V
• Enable Pin Accept Voltages Higher than the
Supply Voltage and up to 40V
• Fixed Output from 1.8V to 12V
• Adjustable Output from 1.215V to 35V
• 300mA Output Current
• Low Quiescent Current: 3.3μA (TYP)
• Low Dropout Voltage:
750mV (TYP) at 300mA, VOUT = 5.0V
• Current Limiting and Thermal Protection
• With Output Automatic Discharge
• Stable with Small Case Size Ceramic Capacitors
• -40℃ to +125℃ Operating Temperature Range

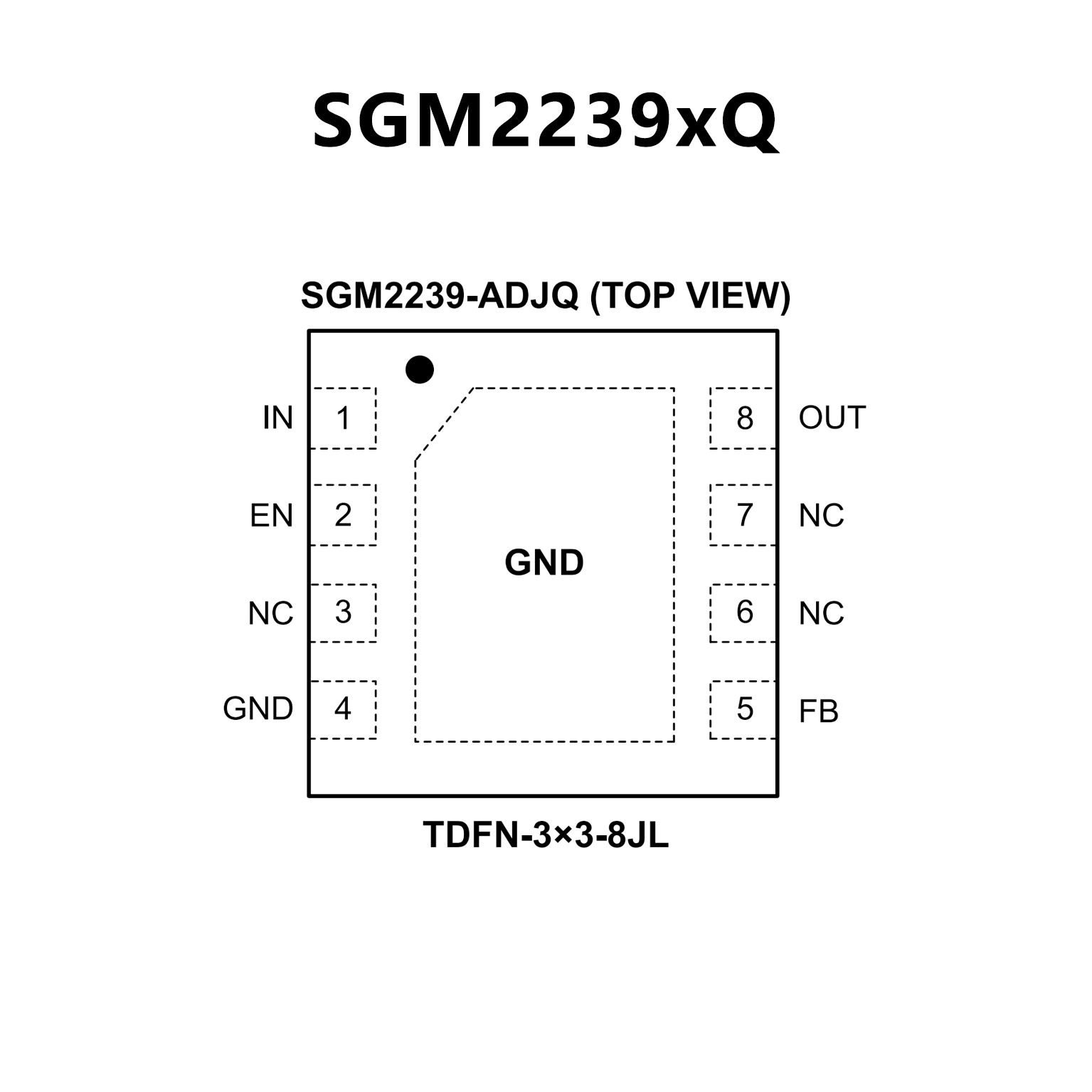

• Available in Green TDFN-2×2-6AL and
TDFN-3×3-8JL Packages

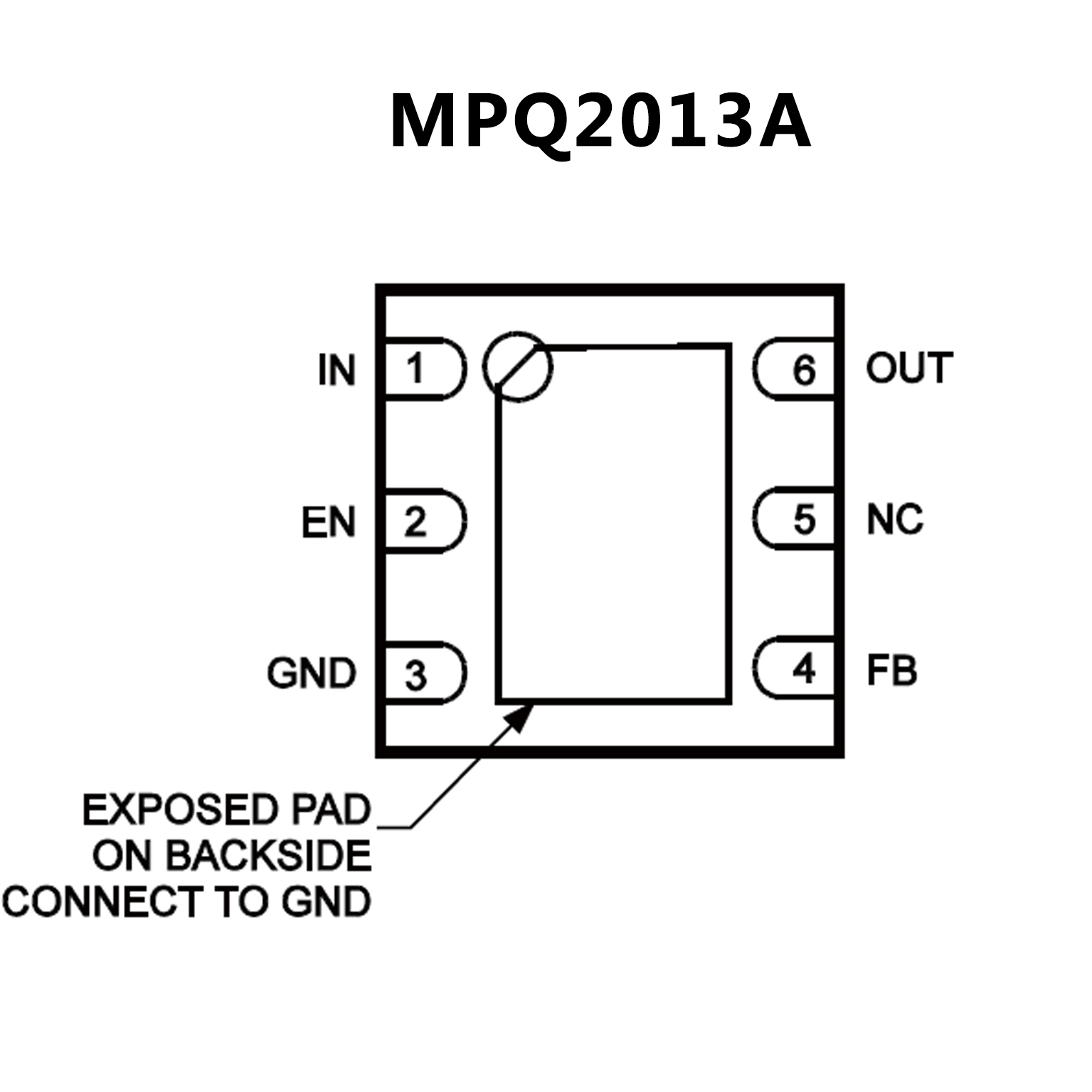

• 2.5V to 40V Input Range
• 3.3µA Quiescent Supply Current
• Stable With Low-value Output Ceramic Capacitor (> 0.47 μF)
• 150mA Specified Current for QFN-6 and QFN-8 Packages
• 620mV Dropout at 150mA Load
• Available in Fixed and Adjustable Output (1.215 V to 15 V)
Versions
• Output ±2% Accuracy for QFN-8 Package Output ±4%
Accuracy for QFN-6 Package
• Specified Current Limit
• Thermal Shutdown
• -40°C to +150°C Specified Junction Temperature Range
• Available in QFN-6 (2mmx2mm), or QFN-8 (3mmx3mm)
Packages
• Available in AEC-Q100 Grade 1
