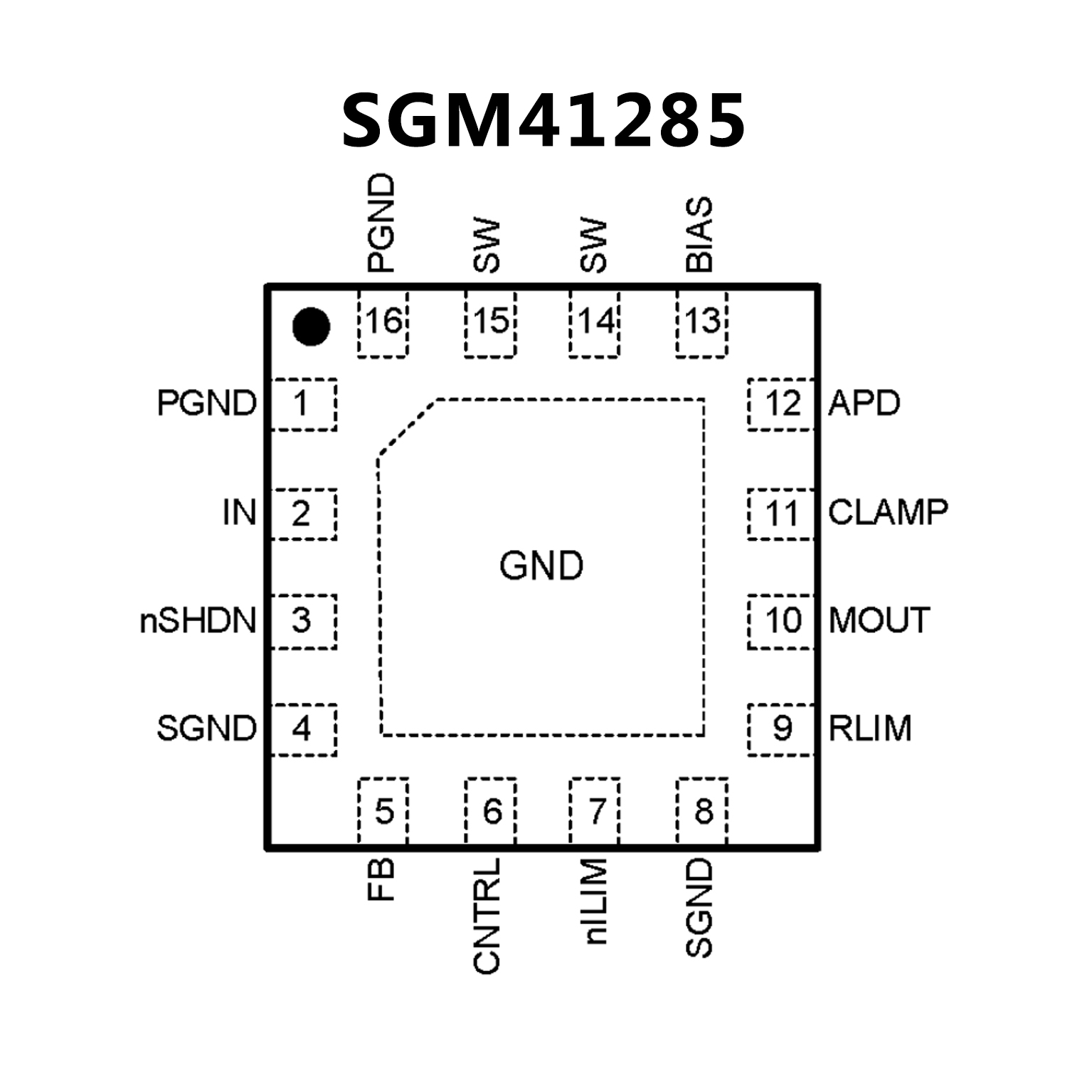

SGM41285.pdf• Input Voltage Range: 2.8V to 5.5V
• Wide Output Voltage Range from (VIN + 5V) to 70V
• Internal 0.6Ω (TYP) 72V MOSFET
• Accurate ±5% (1:1 and 5:1) High-side Current Monitor
• Resistor-Adjustable Ultra-Fast APD Current Limit
• Open-Drain Current-Limit Indicator Flag
• 850kHz Fixed Switching Frequency
• Constant PWM Frequency Provides Easy Filtering
• Internal Soft-Start Function
• Less than 1μA Shutdown Current
• -40℃ to +85℃ Operating Temperature Range
• Available in Green TQFN-3×3-16L Package

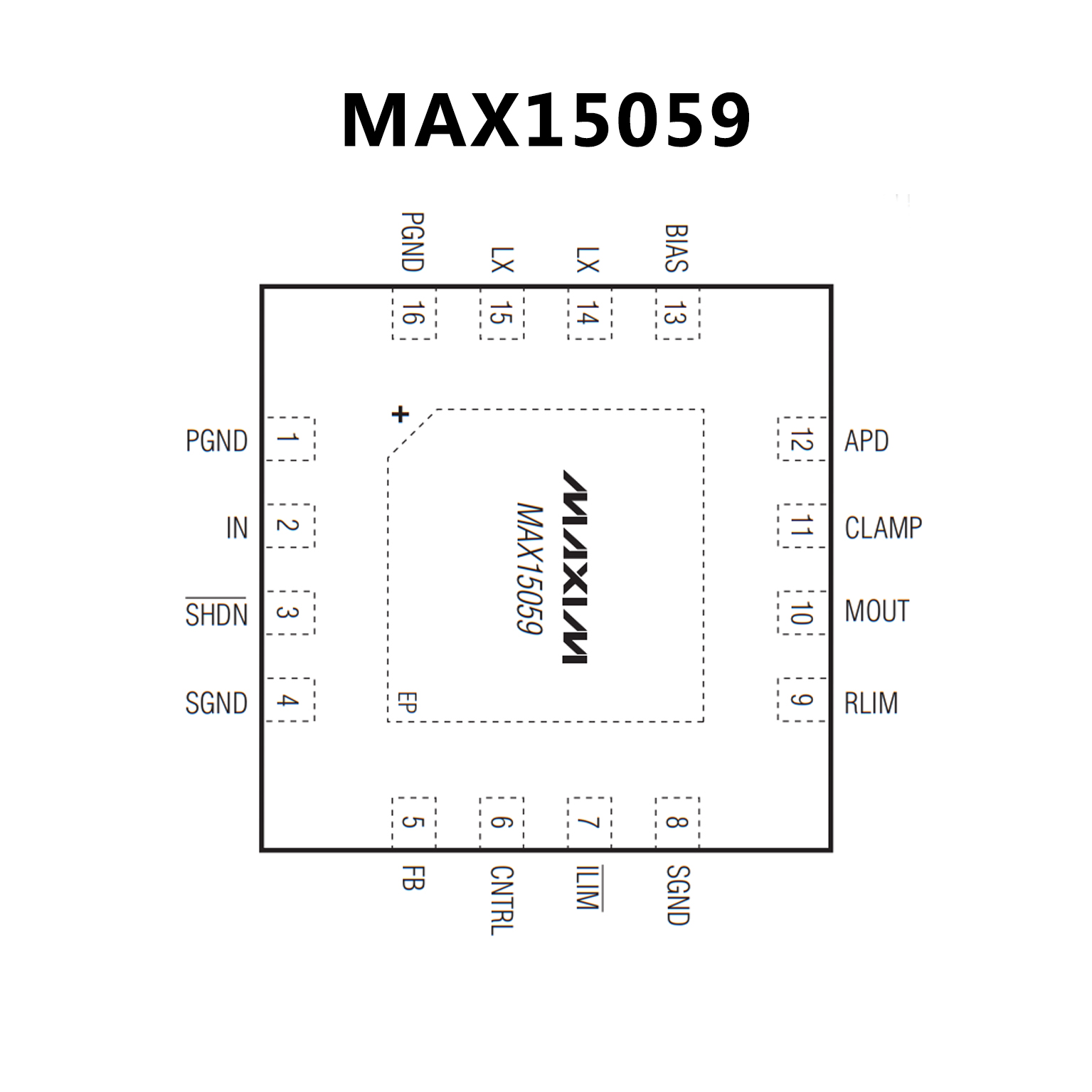

• Input Voltage Range: +2.8V to +5.5V
• Wide Output-Voltage Range from (VIN + 5V) to 76V
• Internal 1I (typ) 80V MOSFET
• Boost Converter Output Power: 300mW
• 200mW Version Available for Smaller Inductor
• Accurate Q5% (1:1 and 5:1) High-Side Current Monitor
• Resistor-Adjustable Ultra-Fast APD Current Limit
• Open-Drain Current-Limit Indicator Flag
• 400kHz Fixed-Switching Frequency
• Internal Soft-Start
• 2μA (max) Shutdown Current
• 3mm x 3mm, Lead-Free, 16-Pin TQFN-EP Package
