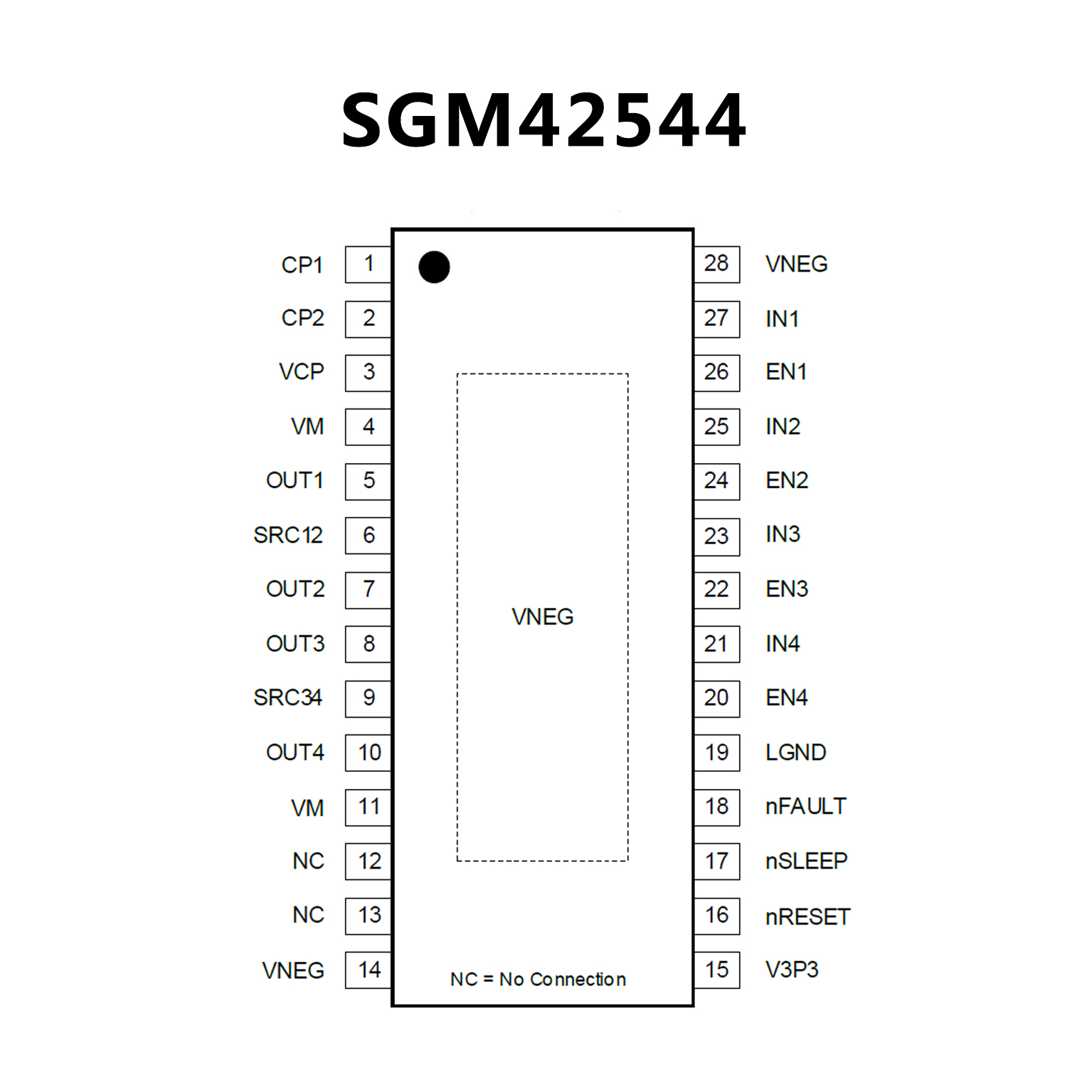

SGM42544.pdf• Wide Power Supply Voltage Range: 8V to 50V
• On-Resistance: 0.44Ω for HS + LS, TJ = +25℃
• Flexible Control Interface for Different Loads
• Individual Controllable Input
• Up to 2.5A Drive Current at VM = 24V, TJ = +25℃
• Single or Bipolar Power Supplies (up to ±25V)
• Built-in 3.3V Reference Output
• Parallel Digital Control Interface
• Full Set of Protections
VM Under-Voltage Lockout (UVLO)
Over-Current Protection (OCP)
Thermal Shutdown (TSD)
Fault Condition Indication Pin (nFAULT)
• Available in a Green TSSOP-28 (Exposed Pad) Package

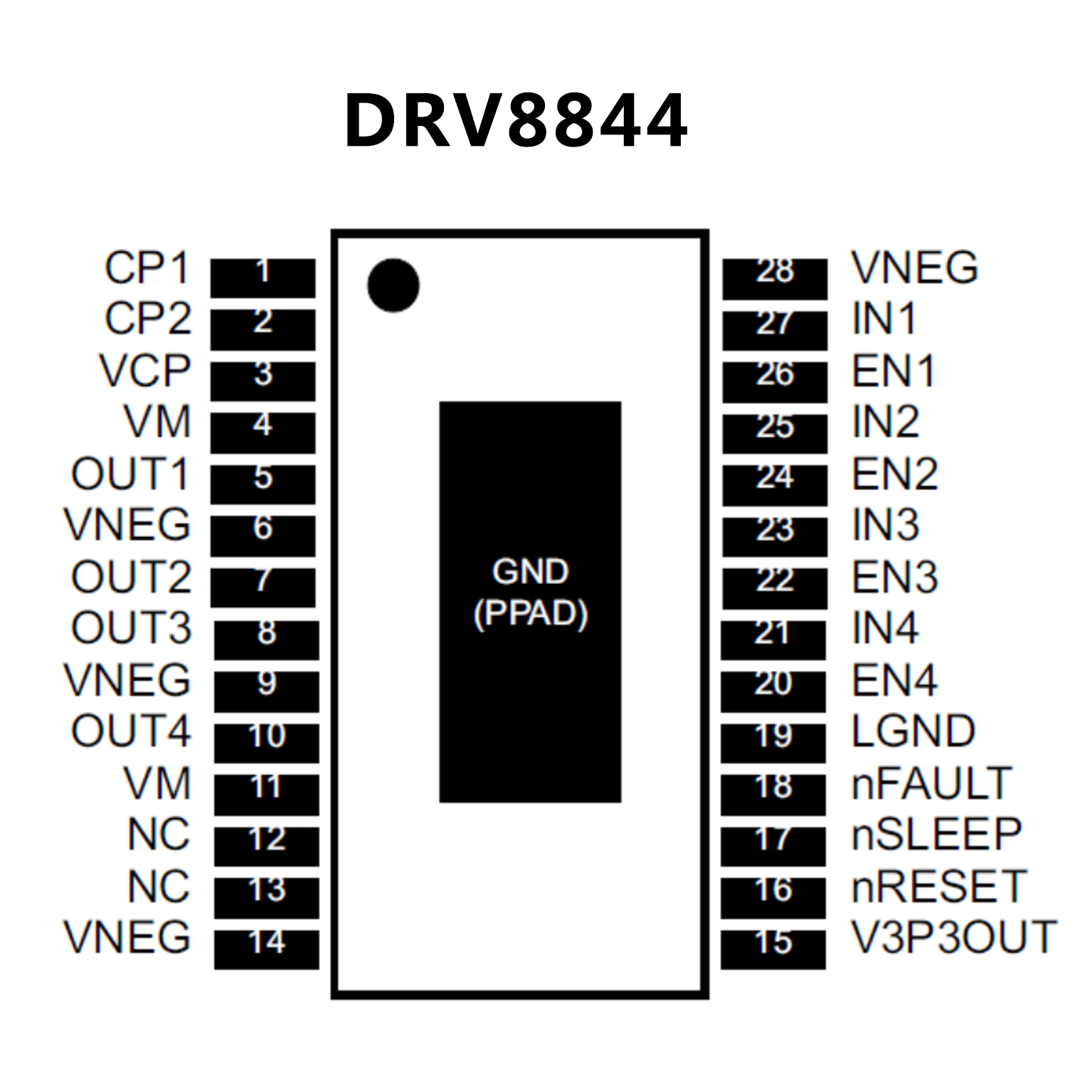

• Quad 1/2-H-Bridge DC Motor Driver
Can Drive Four Solenoids, Two DC Motors,
One Stepper Motor, or Other Loads
Full Individual Half Bridge Control
Low MOSFET On-Resistance
• 2.5-A Maximum Drive Current at 24 V, 25°C
• Floating Input Buffers Allow Dual (Bipolar)
Supplies (up to ±30 V)
• Built-In 3.3-V, 10-mA LDO Regulator
• Industry Standard IN/IN Digital Control Interface
• 8-V to 60-V Operating Supply Voltage Range
• Outputs Can Be Connected in Parallel
• Thermally Enhanced Surface Mount Package
