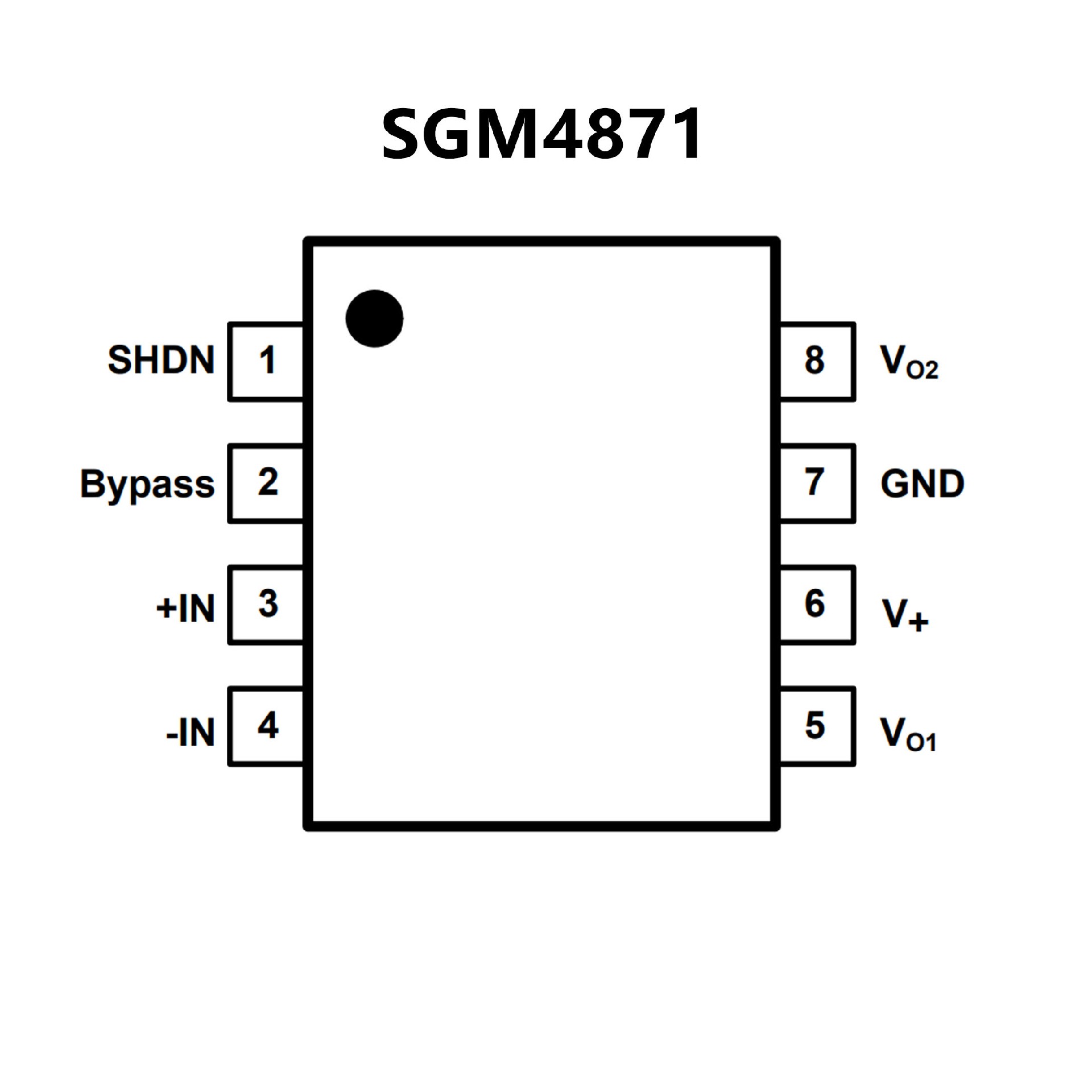

SGM4871.pdf• Output Power at THD+N = 10%,
1kHzSGM4871YPS8: 2.4W (TYP) into 4Ω
LoadSGM4871YS8: 1.5W (TYP) into 8Ω Load
• Unity Gain Stable
• 2.5V to 5.5V Operation
• Shutdown Current: 0.07μA (TYP)
• Thermal Overload Protection Circuitry
• No Output Coupling Capacitors,
BootstrapCapacitors or Snubber
Networks Required
• External Gain Configuration Capability
• -40℃ to +85℃ Operating
Temperature Range
• Available in Green SOIC-8
(Exposed Pad) andSOIC-8 Packages

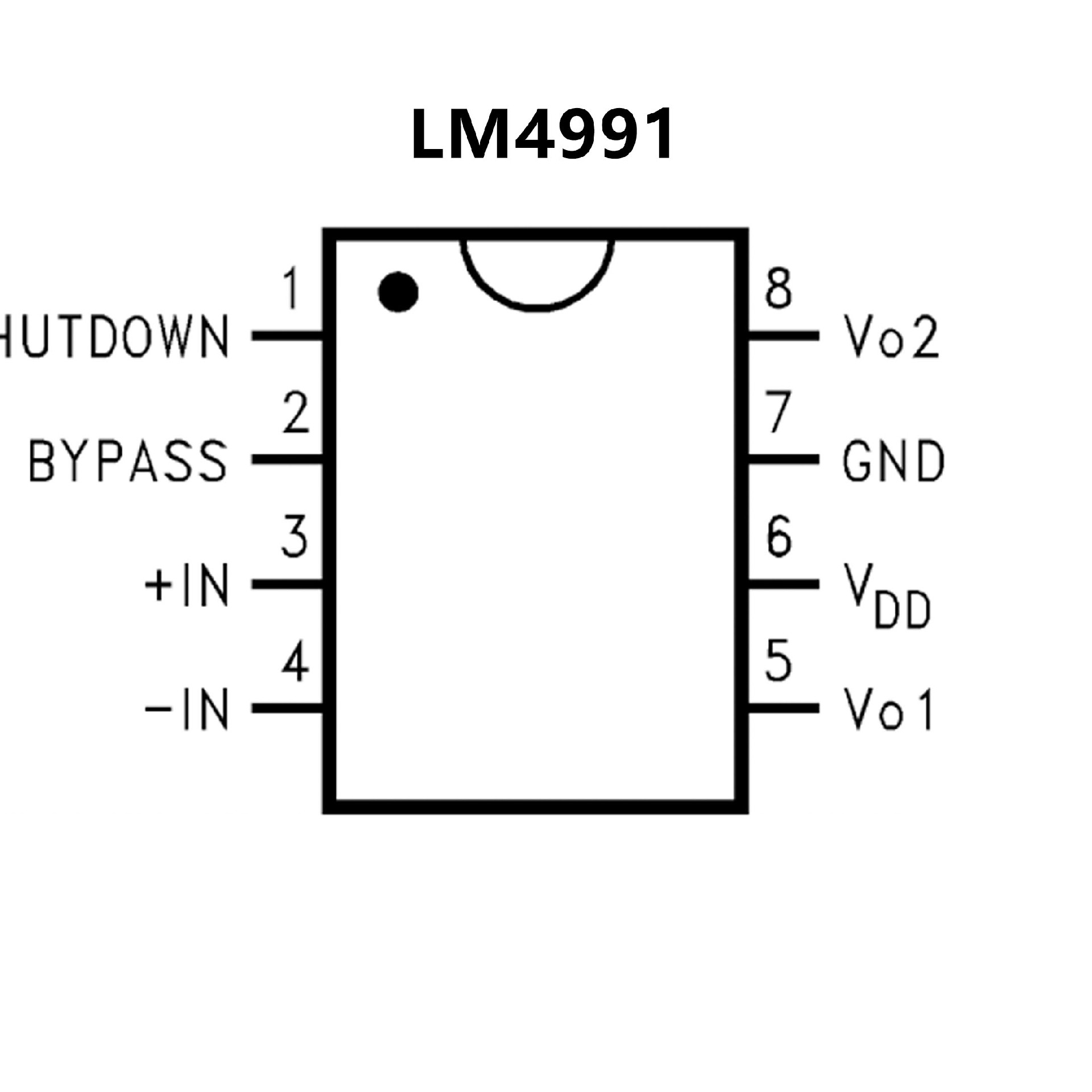

• Available in Space-Saving WSON and SOIC Packages
• Ultra Low Current Shutdown Mode
• Can Drive Capacitive Loads up to 500pF
• Improved Click and Pop Circuitry Reduces
Noises During Turn-On and Turn-Off Transitions
• 2.2 - 5.5V Operation
• No Output Coupling Capacitors, Snubber
Networks, Bootstrap Capacitors or
Gain-Setting Resistors Required
• Unity-Gain Stable
