2A, 2MHz, 55V Step-Down Converter, SGM6060 Replace MP4560.
SGM6060
SGM6060.pdf
SGM6060.pdfFEATURES
• 3.8V to 55V Wide Input Voltage Range
• Adjustable Output Voltage
• Up to 95% Efficiency
• PFM Mode at Light Loads
• Quiescent Current: 126μA (TYP)
• Less than 18μA Shutdown Current
• Internal HS Power MOSFET RDSON: 220mΩ (TYP)
• Adjustable Switching Frequency: 200kHz to 2MHz
• Internal Soft-Start Circuit
• Accurate EN Input Threshold
• Stable with Ceramic Capacitor
• Available in Green TDFN-3×3-10L and SOIC-8
(Exposed Pad) Packages

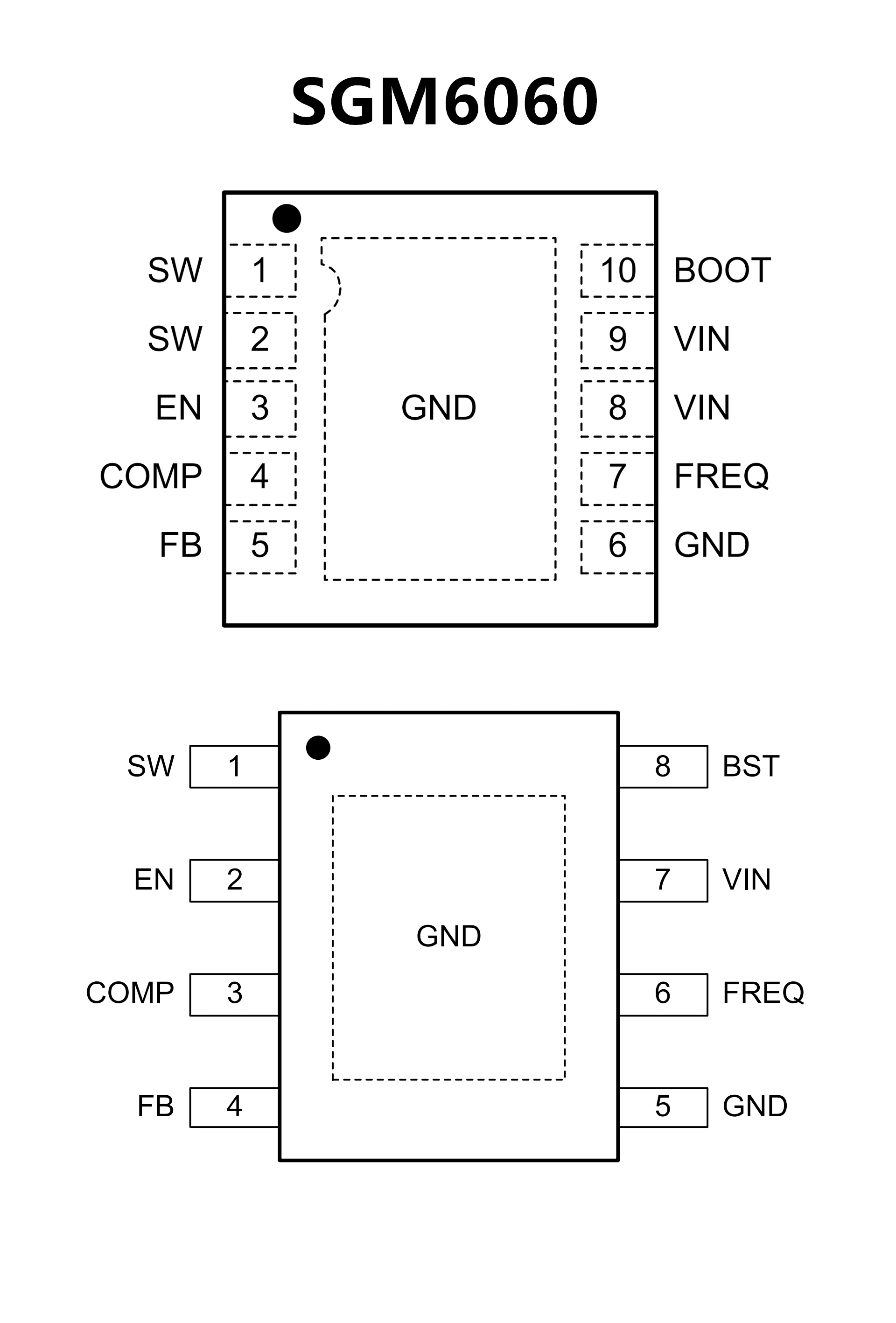

PIN CONFIGUTION
优势替代
FEATURES
• Wide 3.8V to 55V Operating Input Range
• 250mΩ Internal Power MOSFET
• Up to 2MHz Programmable Switching Frequency
• 140μA Quiescent Current
• Ceramic Capacitor Stable
• Internal Soft-Start
• Up to 95% Efficiency
• Output Adjustable from 0.8V to 52V
• Available in 3x3 10-Pin QFN and SOIC8
with Exposed Pad Packages

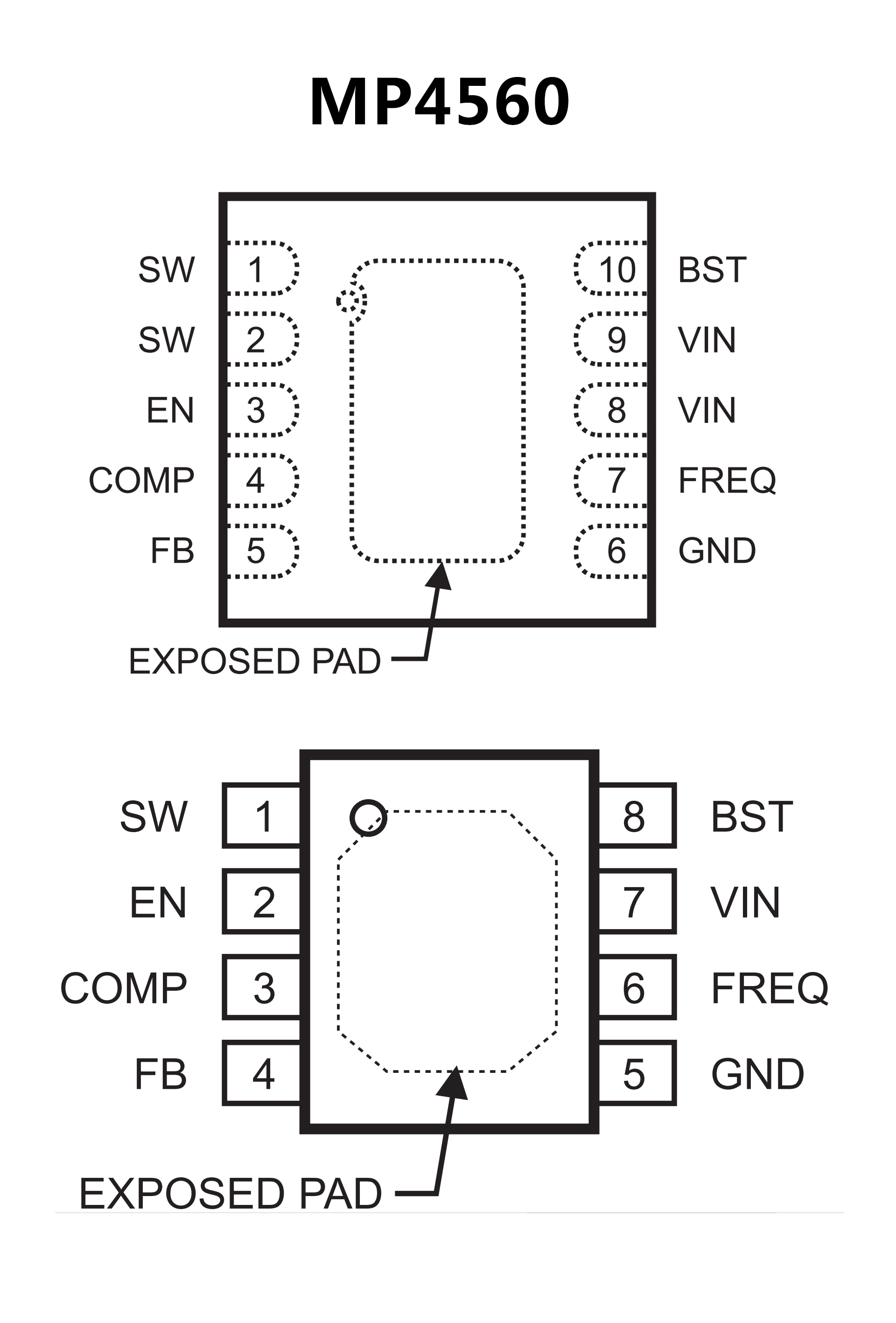

PIN CONFIGUTION
