SGM8255A-1.pdf• Low Offset Voltage: 25μV (MAX)
• Rail-to-Rail Output Swing
• 4.5V to 36V Single Supply Operation
• Open-Loop Voltage Gain: 150dB (TYP)
• PSRR: 150dB (TYP)
• CMRR: 135dB (TYP)
• 0.1Hz to 10Hz Noise: 0.2μVP-P
• Input Voltage Noise Density: 12nV/Hz at 1kHz
• Gain-Bandwidth Product: 8.5MHz
• Low Supply Current: 0.85mA/Amplifier (TYP)
• Overload Recovery Time: 0.7μs

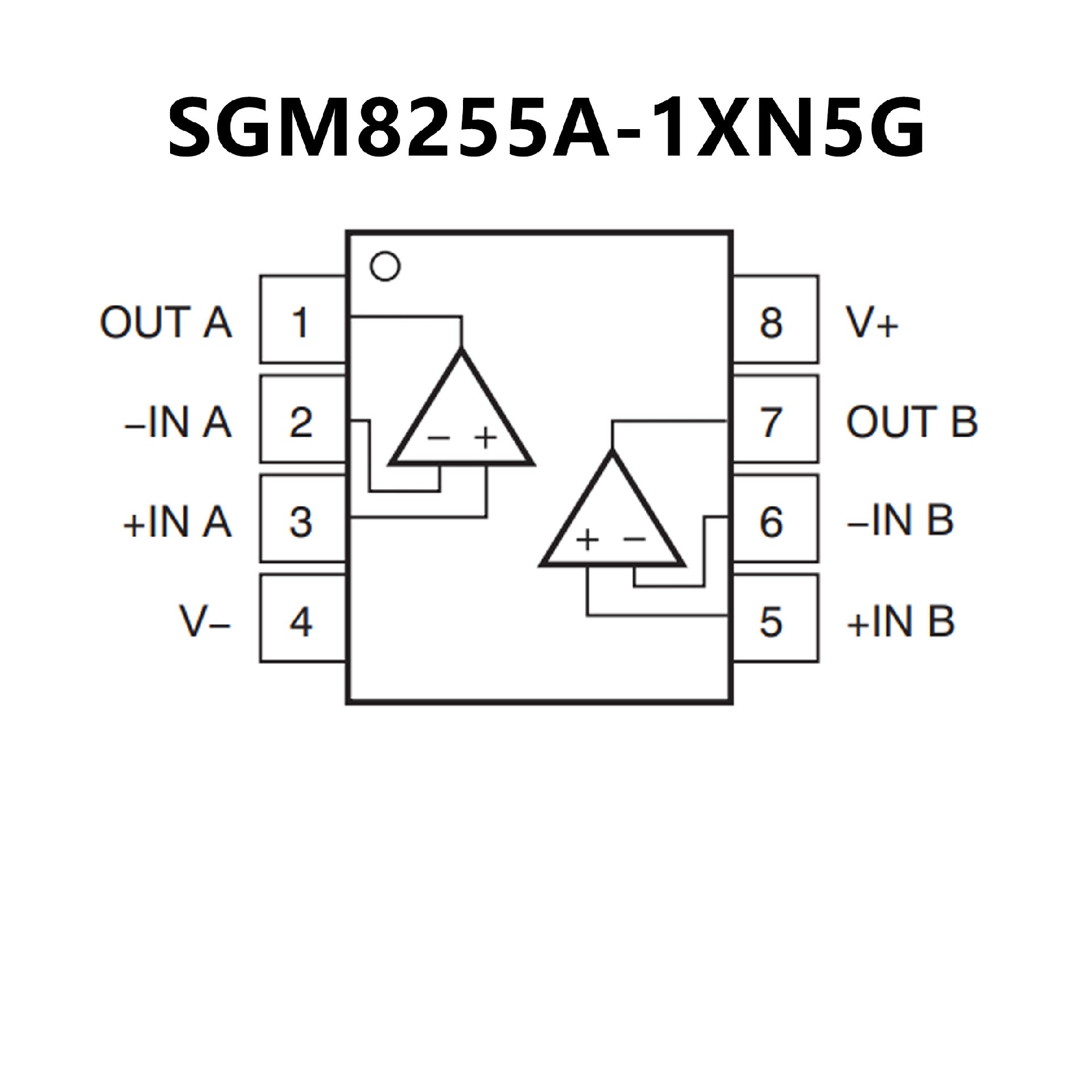

SGM8255A-1 Available in Green SOT-23-5,
SOIC-8 and MSOP-8 Packages
SGM8255A-2 Available in Green SOIC-8
andMSOP-8 Packages
• Wide Supply Range: +4.5V to +36V, ±2.25V to ±18V
• Low Offset Voltage: ±0.2mV
• Low Offset Drift: ±0.3μV/°C
• Gain Bandwidth: 10MHz
• Low Input Bias Current: ±8pA
• Low Quiescent Current: 1.6 mA per Amplifier
• Low Noise: 7 nV/√Hz
• EMI and RFI Filtered Inputs
• Input Range Includes the Negative Supply
• Input Range Operates to Positive Supply
• Rail-to-Rail Output
