● Control Inputs VIH/VIL Levels are Referenced to VCCA Voltage

● VCC Isolation: If Either VCC Input is at GND, All I/O

   Ports are in the High-Impedance State

● IOFF: Supports Partial Power-Down Mode Operation

● Fully Configurable Dual-Rail Design Allows Each Port to Operate

   Over the Full 1.2V to 5.0V Power-Supply Range

● I/Os are 6.0V Tolerant

● -40℃ to +125℃ Operating Temperature Range

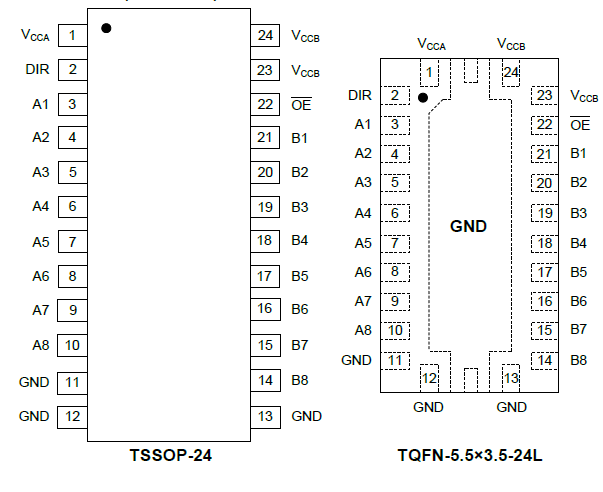

● Available in Green TSSOP-24 and TQFN-5.5×3.5-24L Packages

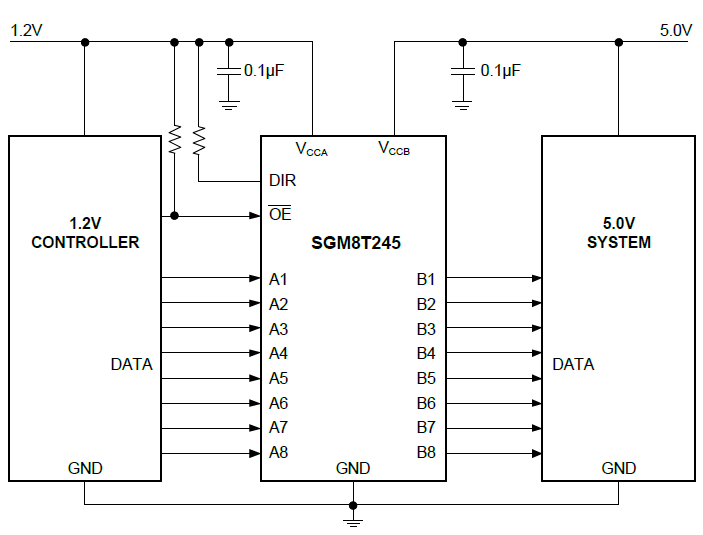

This 8-bit non-inverting bus transceiver uses two separate configurable power-supply rails. The SGM8T245 is optimized to operate with VCCA/VCCB set at 1.2V to 5.0V. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2V to 5.0V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2V to 5.0V. This allows for universal low-voltage bidirectional translation between any of the 1.2V, 1.5V, 1.8V, 2.5V, 3.3V and 5.0V voltage nodes.

The SGM8T245 is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the outputs so the buses are effectively isolated.

The SGM8T245 solution is compatible with a single- supply system and can be replaced later with the SGM7SZ245 function, with minimal printed circuit board redesign.

This device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, thus preventing damaging current backflow through the device when it is powered down.
