50 V, 100 mA NPN/PNP resistor-equipped double transistor, DCX114YU-7-F Replace PUMD9.
DCX114YU-7-F
DCX114YU-7-F.pdf
DCX114YU-7-F.pdfFEATURES
• Package: SOT363
• Package Material: Molded Plastic, “Green” Molding
Compound; UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
• Weight: 0.006 grams (Approximate)

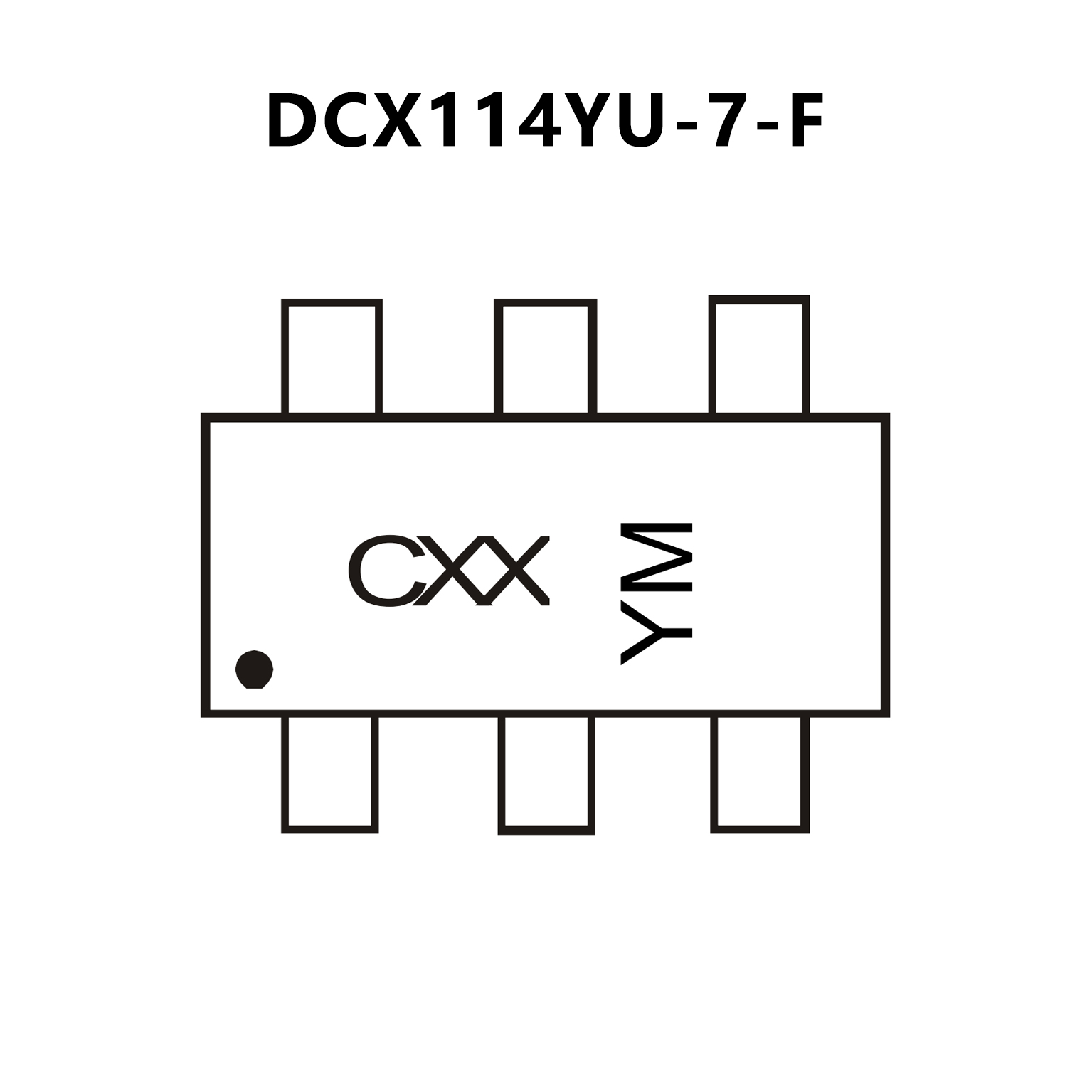

PIN CONFIGUTION
优势替代
FEATURES
• 100 mA output current capability
• Built-in bias resistors
• Simplifies circuit design
• Reduces component count
• Reduces pick and place costs

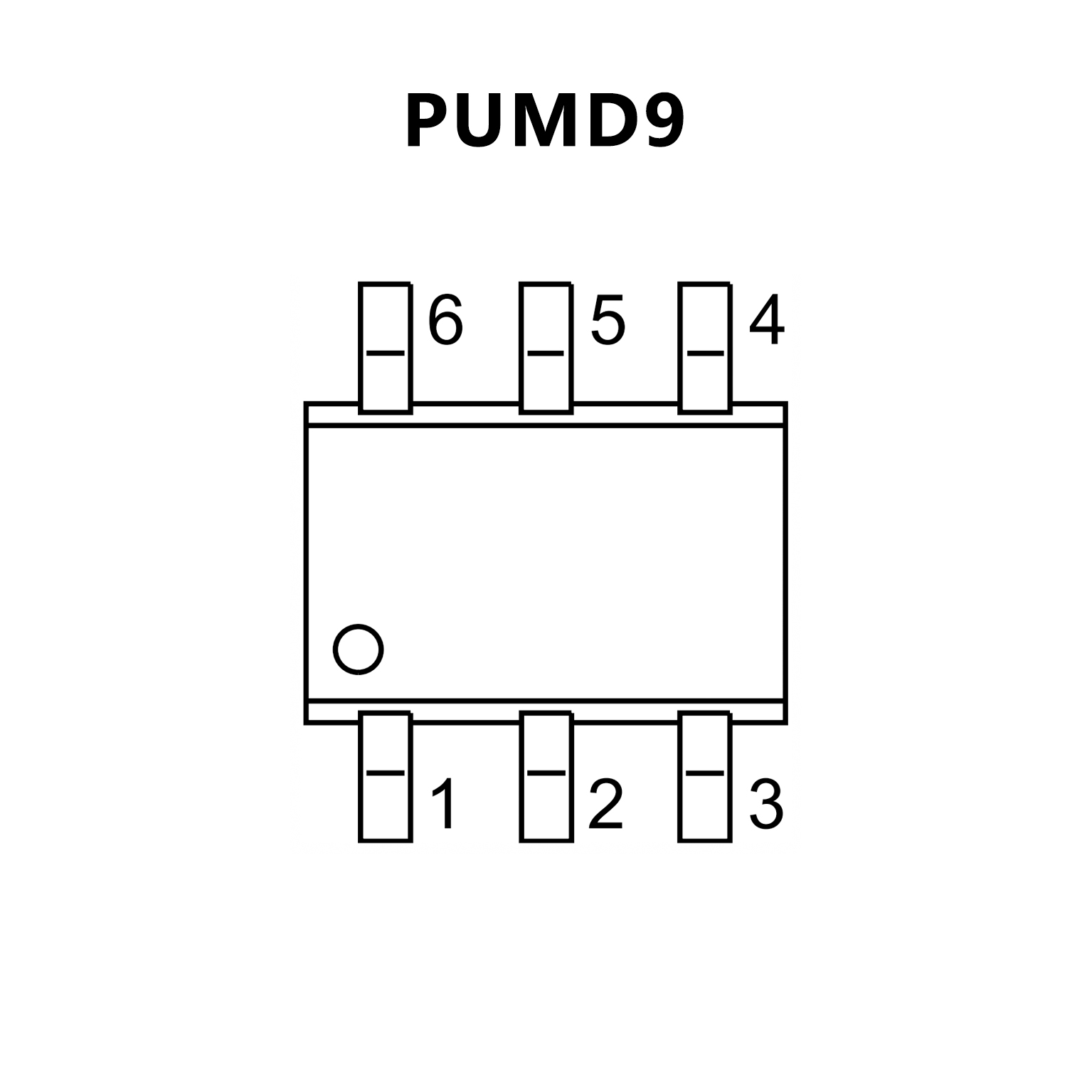

PIN CONFIGUTION
