High-Speed USB2.0 1:2 Multiplexer/DeMultiplexer Switch with Signal Enable, PI3USB221 P2P TS3USB221.
PI3USB221
PI3USB221.pdf
PI3USB221.pdfFEATURES
• VDD Operation at 2.5 V and 3.3 V
• VI/O Accepts Signals up to 5.5 V
• 1.8-V Compatible Control-Pin Inputs
• Low-Power Mode When OE Is Disabled (2 μA)
• rON = 6Ω Maximum
• ΔrON = 0.2Ω Typical
• Cio(on) = 6 pF Maximum
• Low Power Consumption (50 μA Maximum)
• ESD > 8kV contact on USB signal path per IEC61000-4-2)
• High Bandwidth (1.1 GHz Typical)
• Over Voltage Protection
• Packaging (Pb-free & Green): UQFN-10 and UDFN-10

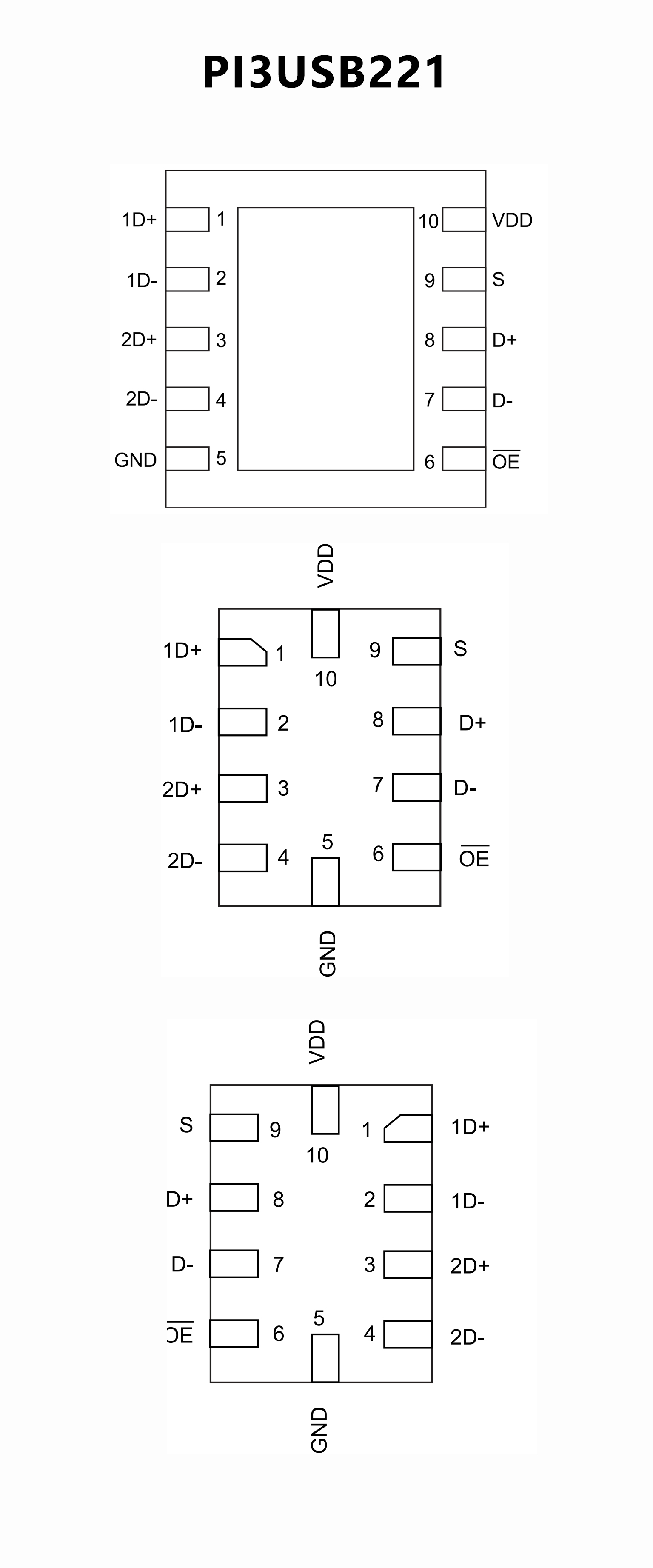

PIN CONFIGUTION
优势替代
FEATURES
• VCC operation from 2.3V and 3.6V
• VI/O accepts signals up to 5.5V
• 1.8V compatible control-pin inputs
• Low-power mode when OE is disabled (1μA)
• RON = 6Ω maximum
• ΔrON = 0.2Ω typical
• CIO(ON) = 6pf maximum
• Low power consumption (30μA maximum)
• ESD > 2000V Human-Body Model (HBM)
• High bandwidth (1GHz typical)
PIN CONFIGUTION
