• Synchronous DCDC Buck Controller

   6V-100V Wide Input Range

   0.8V-60V Adjustable Output Voltage

   0.8V±1% Reference Voltage

   40ns Minimum tON for low duty ratio

   150ns Minimum tOFF for high duty ratio

• 100 KHz to 1.2 MHz Switching Frequency

   Clock Synchronization In/Out capability

   Selectable Diode Emulation or FPWM

• 7.5-V Gate Drivers

   2.3-A Source and 3.5-A Sink Current

   Low-side Soft Start for prebiased Start-up

 • Fast Line and Load Transient Response

   Voltage-mode control with line feedforward

   High Gain Bandwidth Error Amplifier

• Protection Features for Robustness

   Adjustable Soft Start time

   Hiccup-mode Overcurrent Protection

   Input UVLO with hysteresis

   VCC and Gate-drive UVLO Protection

   Precision Enable Input Threshold

   Open-drain Power Good Indicator for

   Sequencing and Control

   Over Temperature Shutdown Protection

• External VCC Input for Bypassing Internal LDO

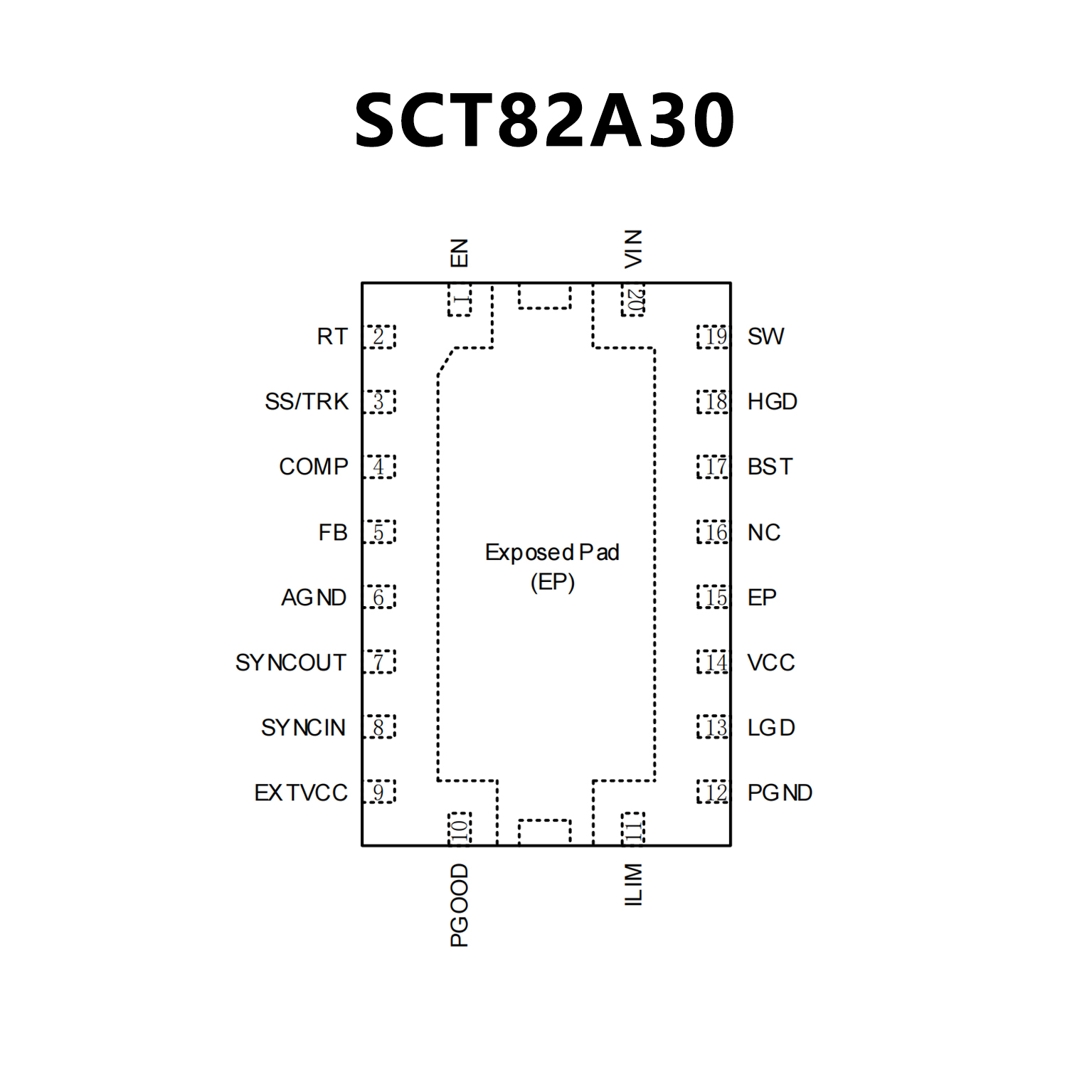

• Available in QFN-20L 3.5mmx4.5mm Package
