3.8V-60V Vin, 1.5A, High Efficiency Step-down DCDC Converter with Programmable Frequency, P2P TPS54160-Q1.
SCT2610Q
SCT2610Q.pdf
SCT2610Q.pdfFEATURES
• Qualified for Automotive Applications
• AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: -40°C to 125°C
Ambient Operating Temperature Range
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C3
• Wide Input Range: 3.8V-60V
• Up to 1.5A Continuous Output Current
• 0.8V ±1% Feedback Reference Voltage
• Integrated 220mΩ High-Side MOSFET
• Low Quiescent Current: 190uA
• Pulse Skipping Mode (PSM) in light load
• Adjustable Soft-start Time
• Adjustable Frequency 100KHz to 1.2MHz
• UV and OV Power Good Output
• External Clock Synchronization
• Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
• Derivable Inverting Voltage Regulator
• Over-voltage and Over-Temperature Protection
• Available in an EMSOP-10 Package

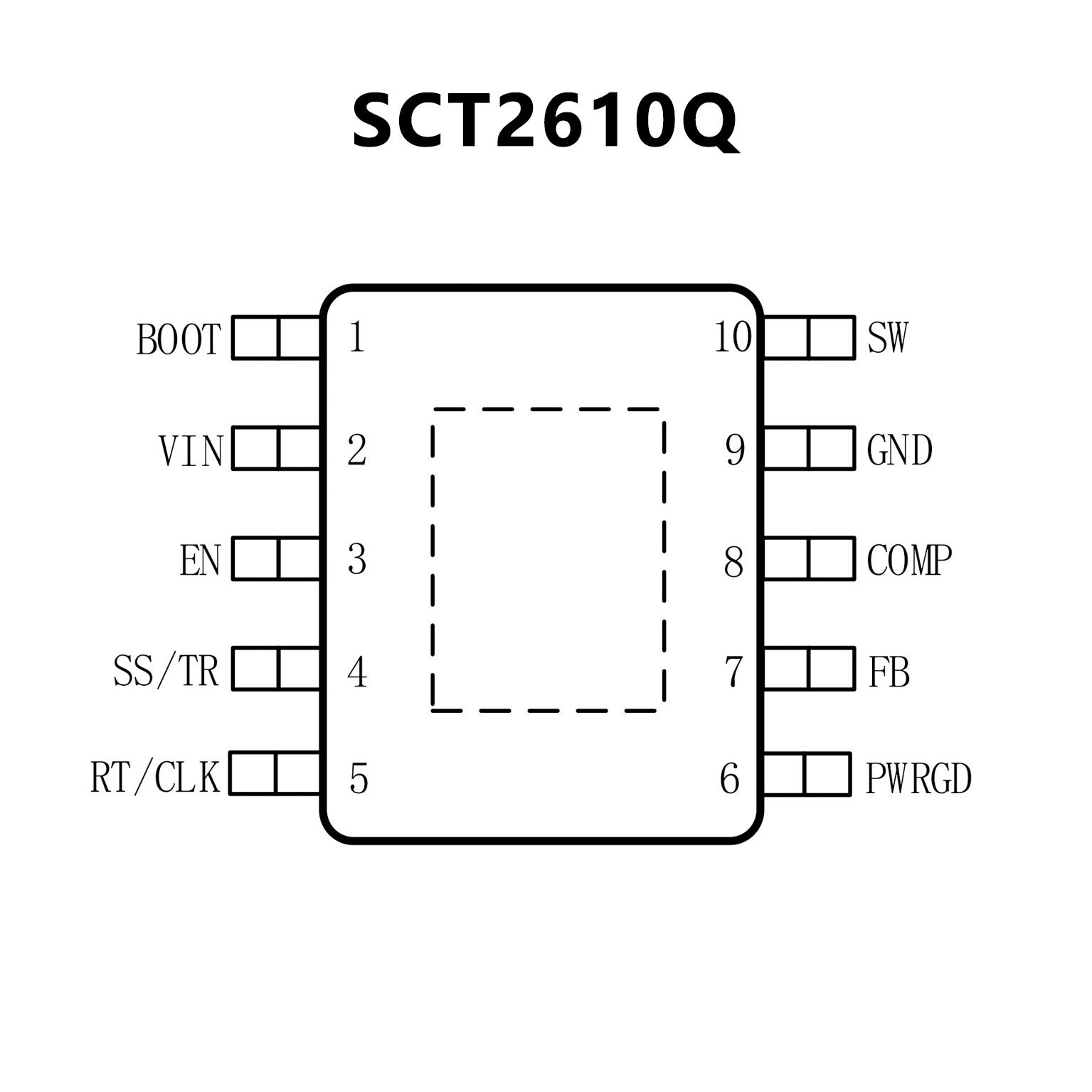

PIN CONFIGUTION
优势替代
FEATURES
• Qualified for Automotive Applications
• 3.5-V to 60-V Input Voltage Range
• 200-mΩ High-Side MOSFET
• High Efficiency at Light Loads With
Pulse-Skipping Eco-mode™ Control Scheme
• 116-μA Operating Quiescent Current
• 1.3-μA Shutdown Current
• 100-kHz to 2.5-MHz Switching Frequency
• Synchronizes to External Clock
• Adjustable Slow Start/Sequencing
• Undervoltage and Overvoltage Power Good Output
• Adjustable Undervoltage Lockout (UVLO)
Voltage and Hysteresis
• 0.8-V Internal Voltage Reference
• Supported by SwitcherPro™ Software Tool

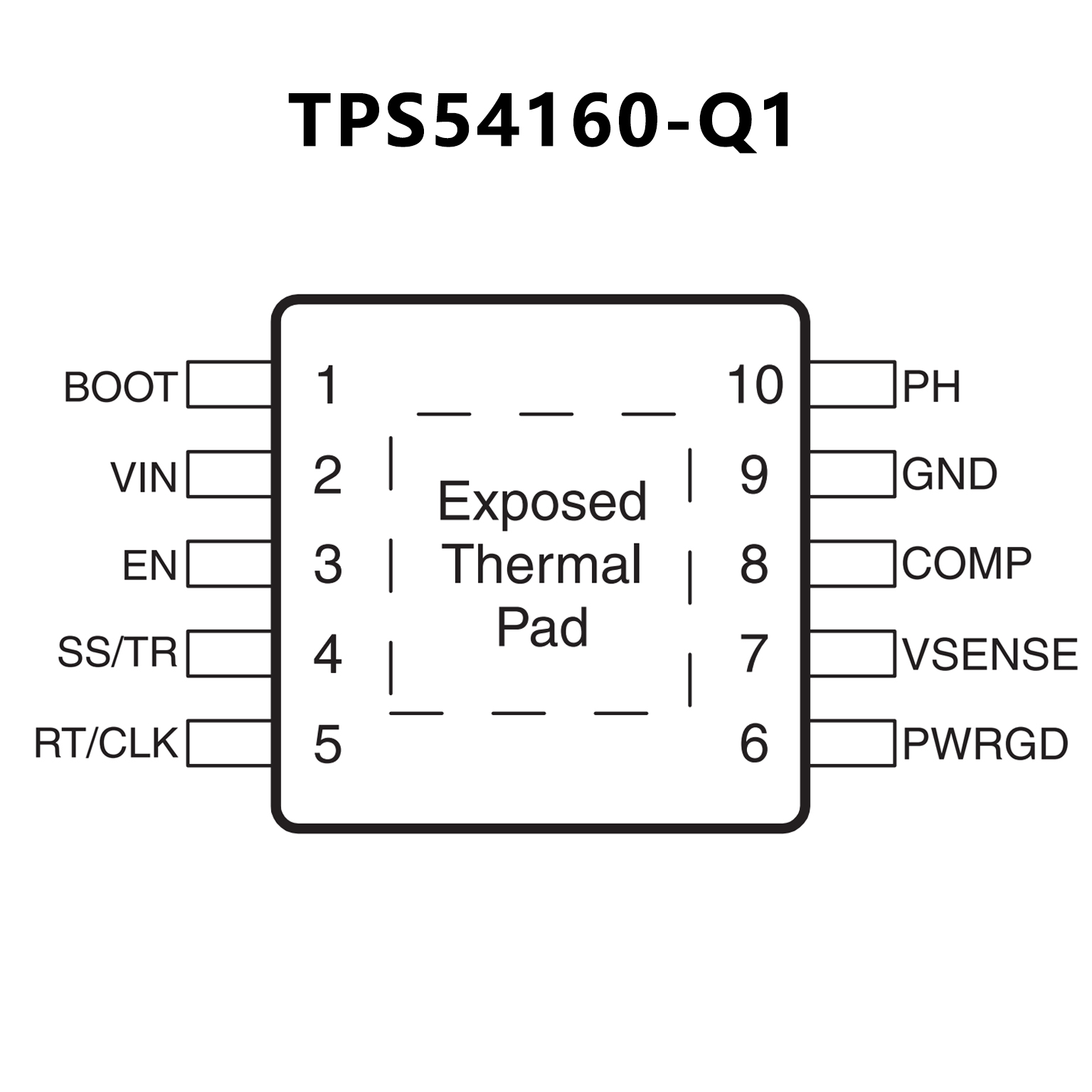

PIN CONFIGUTION
